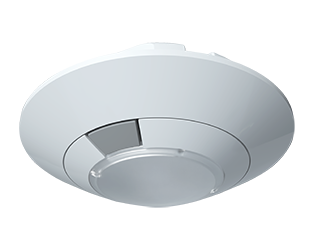

LCSENSE/W
LCSENSE/W
- Passive infrared motion detector with built-in fixture and zone control
- Occupancy and vacancy sensing with adjustable sensitivity and timeouts
- Switching for a fixture or entire zone, hard-wired or remote
- Supports 0-10V dimming for LED and fluorescent fixtures
- Easily set up schedules and scenes
- Power measurement and energy reporting
- Remote control from Lightcloud web application
- Communicates over secure wireless mesh network - no internet required
- Closed loop daylight harvesting
Technical Specifications
Product Details
Application
Standard (8-12 ft mounting height)
Mounting Type
Ceiling/Surface Mount
Compliance
IP Rating
Ingress protection rating of IP65 for dust and water
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Can dim as low as 1%. Actual dimming range is defined by driver.
Installation
All Lightcloud components should be installed by a licensed electrician in accordance with local codes.
Input Voltage
120V through 277V
Frequencies
50/60 Hz
Electrical Ratings
20 mA @ 120VAC
12 mA @ 277VAC
12 mA @ 277VAC
Load Switching Capacity
Incandescent: 220VAC, 13A
Standard Ballast: 120/277 VAC, 6A/4A
Electronic Ballast: 277VAC, 12A
Standard Ballast: 120/277 VAC, 6A/4A
Electronic Ballast: 277VAC, 12A
Storage Temperature Range
-40°F to 185°F (-40°C to 85°C)
Sensor Settings
Detection Range
30 ft diameter at 9 ft mounting height
Construction
Operating Temperature Range
-4°F - 104°F (-20°C - 40°C)
Maximum Relative Humidity
95%
Wire Gauge
4x 16AWG High-voltage pigtails, stripped
2x 22AWG Low-voltage pigtails, stripped
2x 22AWG Low-voltage pigtails, stripped
Wireless Range
Line of Sight
1,000 ft
Obstructions
100 ft
Other
Warranty
10-year full hardware warranty with 100% repair/replacement coverage for all properly installed devices. See Lightcloud Warranty Terms.
