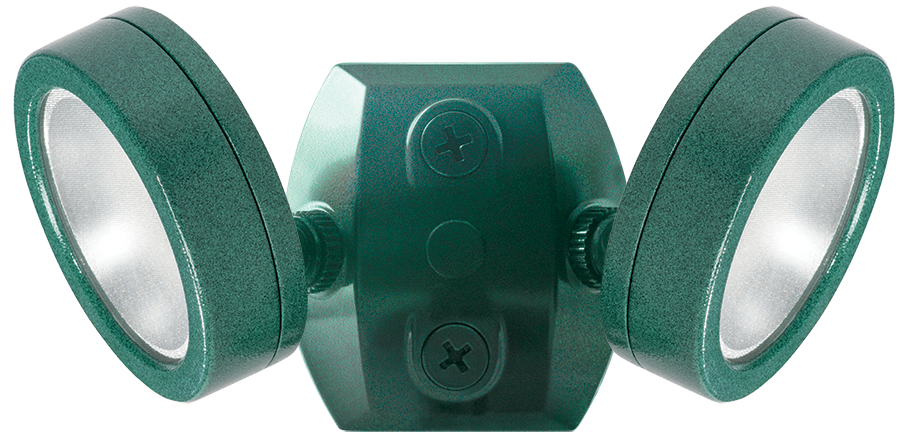

LES2X13YVG

Spec Sheet Instructions Spec Sheet

LES2X13YVG

Equivalent to two 75W halogen BR30 wide floods

6H x 6V beam distribution delivers ample light

Diffused lens for smooth, even light distribution

Adjustable knuckle

60,000-Hour LED lifespan

View Technical Specs

View Price & Availability

Performance

Watts	26W
Color Temp	3000K (Warm)
Lumens	2,538 lm
Efficacy	114.3 lm/W
Color Accuracy	83 CRI
L70 Lifespan	60,000 Hours

Type	Constant Current
120V	0.20A
208V
240V
277V
Input Watts	22.2W

Dimensions

Weight: 3.0 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations. Suitable for mounting within 4 ft of the ground.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Optical

NEMA Type

6H x 6V Beam Spread

Construction

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Housing

Precision die-cast aluminum housing, lens frame and mounting arm

Reflector

Vacuum-metalized polycarbonate

Lens

Diffused glass for smooth, even light distribution

Gaskets

High-temperature silicone gaskets

Finish

Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

Pre-Assembled and wired for easy mounting EZ Hang hook. Compatible with round and rectangular surface mount boxes as well as recessed boxes.

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Electrical

Driver

120V driver, 50/60/ Hz, 120V: 0.20A

THD

11.1% at 120V

Power Factor

99.1% at 120V
