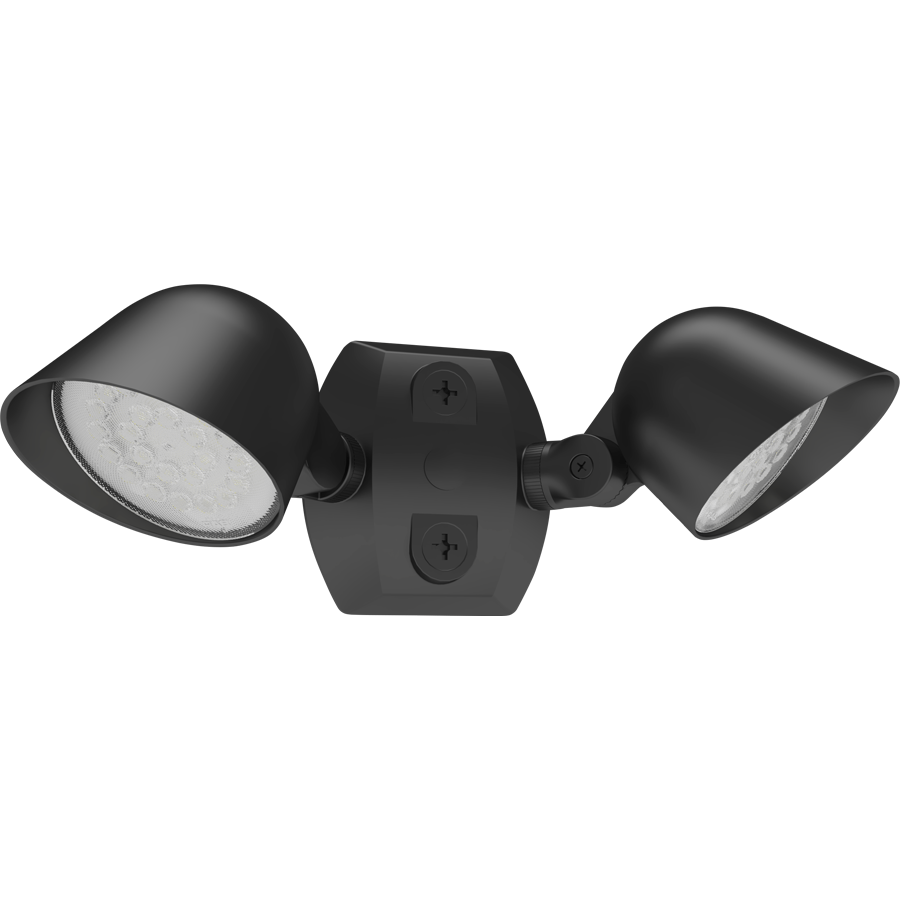

LF17X2B
16W 2700/3000/3500/4000/5000K
- 50,000-hour LED Life
- 0-10V dimming standard
- IP65 rating protects against dust and water
- 5-Year, limited warranty
Performance
| Watts | 16/10/8/5/3W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 358-2,230 lm |
| Efficacy | 119.3-149.5 lm/W |
| Color Accuracy | 82-86 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.14A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 3-16W |
Dimensions
Weight: 2.5 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
16W/10W/8W/5W/3W (factory default 16W)
Color temperature (selectable by 2700K, 3000K, 3500K, 4000K and 5000K)
16W/10W/8W/5W/3W (factory default 16W)
Color temperature (selectable by 2700K, 3000K, 3500K, 4000K and 5000K)
Compliance
UL Listed
Suitable for wet locations
IP Rating
Ingress protection rating of IP65 for dust and water
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
LED Characteristics
LEDs
Long-life, high-efficacy, discrete, surface-mount LEDs
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
8W: Constant Current, Class P, 120V, 50/60 Hz, 120V: 0.07A
5W: Constant Current, Class P, 120V, 50/60 Hz, 120V: 0.04A
4W: Constant Current, Class P, 120V, 50/60 Hz, 120V: 0.03A
2W: Constant Current, Class P, 120V, 50/60 Hz, 120V: 0.02A
1W: Constant Current, Class P, 120V, 50/60 Hz, 120V: 0.01A
5W: Constant Current, Class P, 120V, 50/60 Hz, 120V: 0.04A
4W: Constant Current, Class P, 120V, 50/60 Hz, 120V: 0.03A
2W: Constant Current, Class P, 120V, 50/60 Hz, 120V: 0.02A
1W: Constant Current, Class P, 120V, 50/60 Hz, 120V: 0.01A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
7.7% at 120V
Power Factor
99.7% at 120V
Dim to Off
Yes
Aux Power Supply
No
Surge Protection
2.5kV
Performance
Lifespan
50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
\
Construction
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Housing
Die-cast aluminum
Tilt Increment
Rotates in 10 degree increments
Lens
Polymethyl Methacrylate (PMMA)
Gaskets
O-ring silicone
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Knuckle arm mount
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
