16W 2700/3000/3500/4000/5000K
  • 50,000-hour LED Life
  • 0-10V dimming standard
  • IP65 rating protects against dust and water
  • 5-Year, limited warranty
View Technical Specs
Performance
Watts 16/10/8/5/3W
Color Temp 2700/3000/3500/4000/5000K
Lumens 358-2,230 lm
Efficacy 119.3-149.5 lm/W
Color Accuracy 82-86 CRI
L70 Lifespan 50,000 Hours
Type Constant Current
120V 0.14A
208V
240V
277V
Input Watts 3-16W
Dimensions
Link to Dimension Drawing

Weight: 2.5 lbs

Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
16W/10W/8W/5W/3W (factory default 16W)
Color temperature (selectable by 2700K, 3000K, 3500K, 4000K and 5000K)
Compliance
UL Listed
Suitable for wet locations
IP Rating
Ingress protection rating of IP65 for dust and water
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
LED Characteristics
LEDs
Long-life, high-efficacy, discrete, surface-mount LEDs
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
8W: Constant Current, Class P, 120V, 50/60 Hz, 120V: 0.07A
5W: Constant Current, Class P, 120V, 50/60 Hz, 120V: 0.04A
4W: Constant Current, Class P, 120V, 50/60 Hz, 120V: 0.03A
2W: Constant Current, Class P, 120V, 50/60 Hz, 120V: 0.02A
1W: Constant Current, Class P, 120V, 50/60 Hz, 120V: 0.01A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
7.7% at 120V
Power Factor
99.7% at 120V
Dim to Off
Yes
Aux Power Supply
No
Surge Protection
2.5 kV
Performance
Lifespan
50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
\
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Housing
Die-cast aluminum
Tilt Increment
Rotates in 10 degree increments
Lens
Polymethyl Methacrylate (PMMA)
Gaskets
O-ring silicone
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Knuckle arm mount
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Recently Viewed Products

 This is a link to the product WPLED3T360FXW/480 WPLED3T360FXW/480
Wpled360 Type Iii Wall Mt Flat 5000K Led 0-10V Dim 480V White
 This is a link to the product HALV10L927-MC-W/LC HALV10L927-MC-W/LC
Architectural 222 Lumens Halv Forward Light 14W 90Cri 2700K Metallic Spun Copper Lens White Finish Lightcloud Controller
 This is a link to the product WPLED2T260FX/480/PCT4 WPLED2T260FX/480/PCT4
Wpled260 Type Ii Wall Mt Flat 5000K Led Dim 480V Pct Bronze

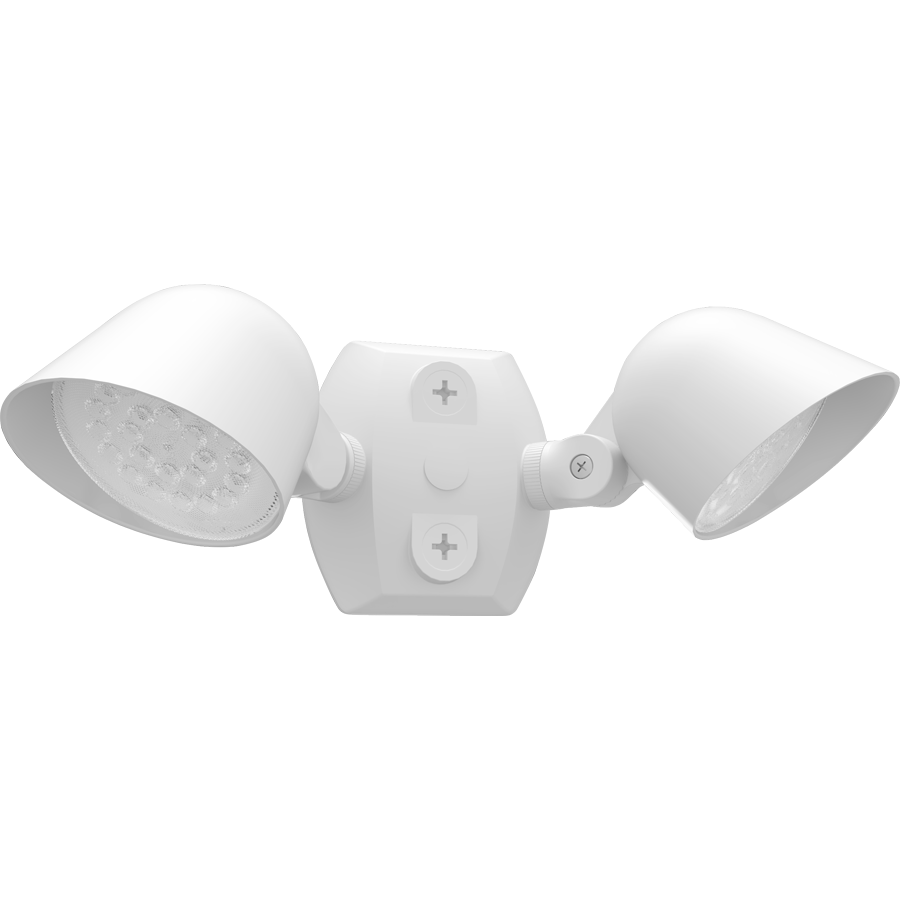

 This is a link to the product LF17X2W LF17X2W
