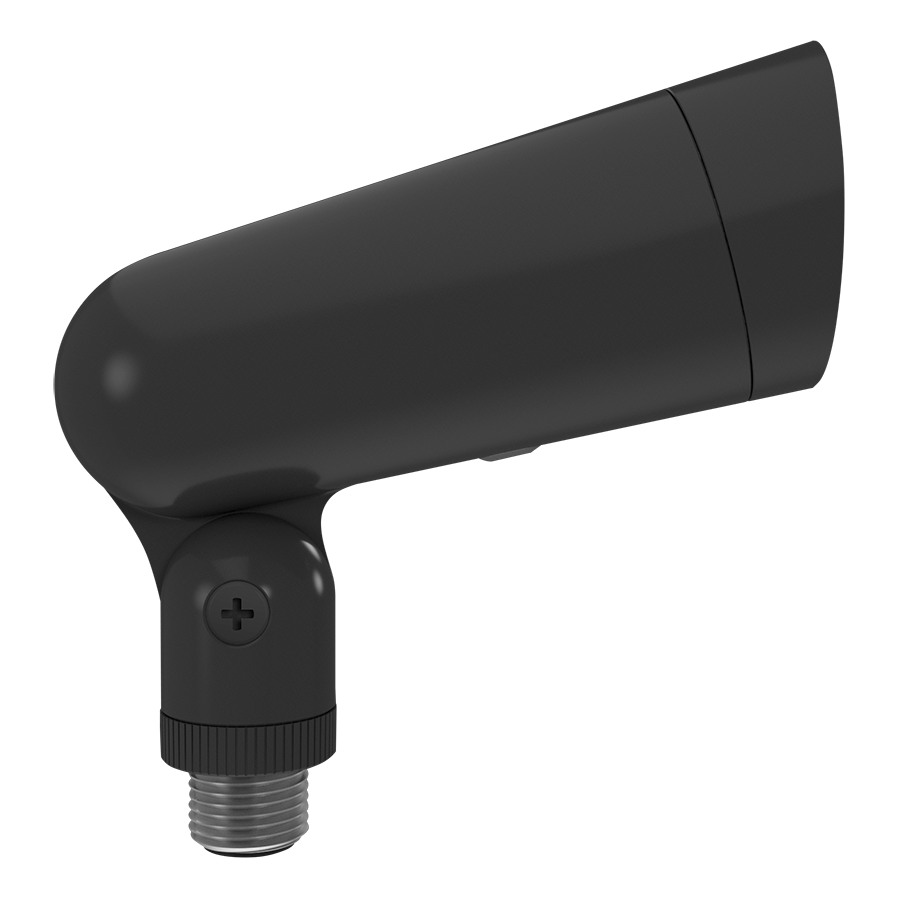

LF34S
LF34S
8W 2700K/3000K/3500K/4000K/5000K
- 100,000-hour LED Life
- TRIAC dimming
- IP65 rating protects against dust and water
- 5-Year, limited warranty
Performance
| Watts | 8W |
| Color Temp | 2700K/3000K/3500K/4000K/5000K |
| Lumens | 955-1,043 lm |
| Efficacy | 119.4-133.7 lm/W |
| Color Accuracy | 81-84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.07A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 7.7-8W |
Dimensions
Weight: 0.5 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
Color temperature selectable by 2700K, 3000K, 3500K, 4000K and 5000K (default: 4000K)
Color temperature selectable by 2700K, 3000K, 3500K, 4000K and 5000K (default: 4000K)
Compliance
UL Listed
Suitable for wet locations
IP Rating
Ingress protection rating of IP65 for dust and water
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
LED Characteristics
LEDs
Long-life, high-efficacy, discrete, surface-mount LEDs
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
Constant Current, Class 2, 120V, 50/60 Hz, 120V: 0.07A
THD
13.41% at 120V
Power Factor
97.1% at 120V
Dimmable
Yes, 120V with TRIAC dimmer
Dim to Off
Yes
Aux Power Supply
No
Surge Protection
2.5kV
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Construction
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Housing
Die-cast aluminum
Tilt Increment
Rotates in 2 degree increments
Lens
Tempered glass
Gaskets
High-temperature silicone
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Knuckle mount
Other
5 Yr Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
