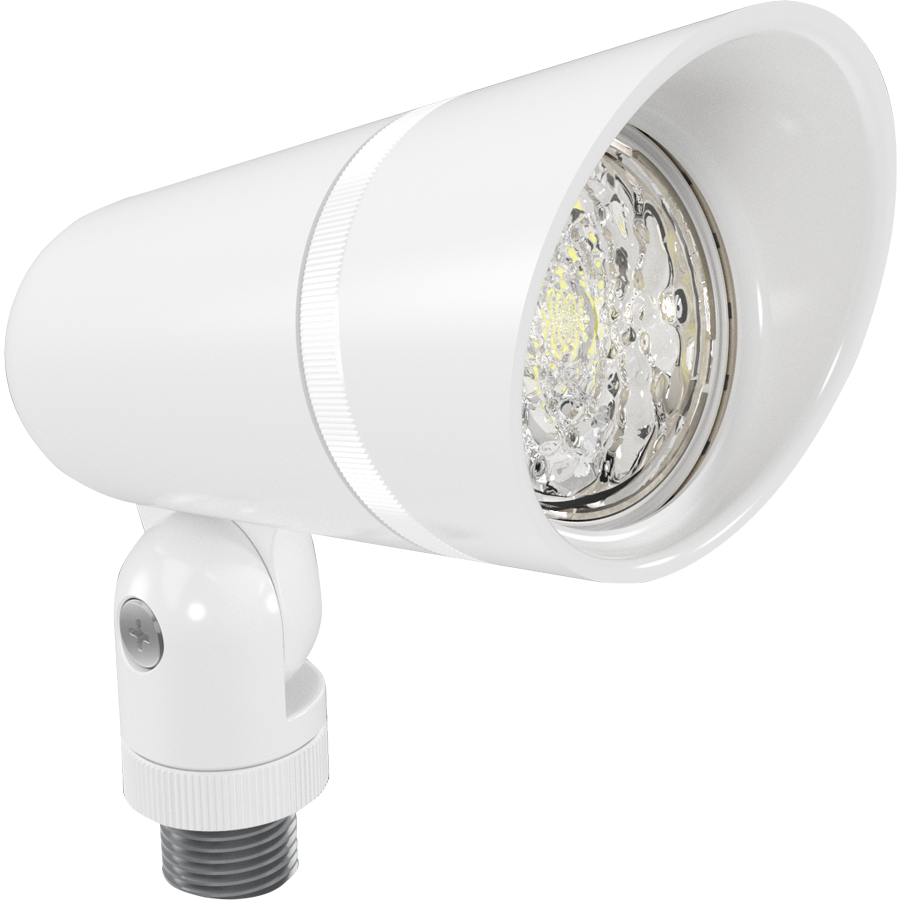

LFXSW
LFXSW

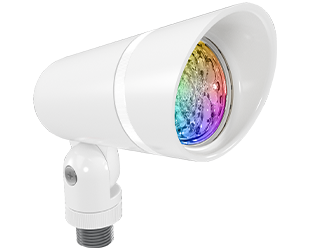

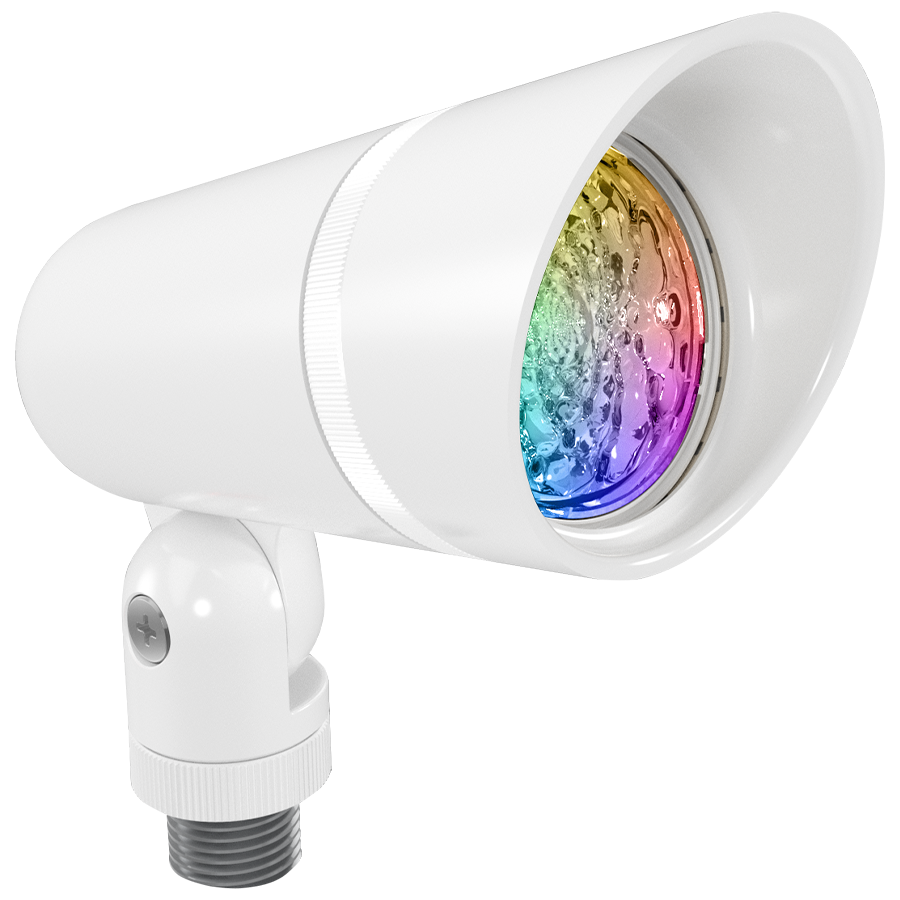

13W 2700-5000K Tunable White; RGBW 16+ Million Colors
- 100,000-Hour LED lifespan
- IP65 rating protects against dust and water
- 5-Year, limited warranty
Performance
| Watts | 13W |
| Color Temp | 2700-5000K Tunable White; RGBW 16+ Million Colors |
| Lumens | 38-984 lm |
| Efficacy | 6.7-79.9 lm/W |
| Color Accuracy | 80-84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.05A/0.10A |
| 208V | 0.03A/0.04A/0.06A/0.07A |
| 240V | 0.03A/0.05A/0.06A |
| 277V | 0.03A/0.05A |
| Input Watts | 5.7-12.6W |
Dimensions
Weight: 1.1 lbs
Technical Specifications
Lightcloud
Lightcloud Blue
Lightcloud Blue, RAB's wireless lighting control system, eliminates the need for a hub or controller. The app shows the fixtures nearest you first, so an area is set up in minutes, even without internet on site. Lights and schedules keep working if the Wi-Fi goes down, and a Nano adds control from anywhere.
DLC system: N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at rablighting.com/lcb.
DLC system: N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at rablighting.com/lcb.
Gateway Required
No
Communication Protocol
Bluetooth
Range
Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.
Outdoor: Up to 100 feet clear line of sight; Up to 20 feet around corners. Heavy vegetation, bushes or trees may impact range significantly.
Outdoor: Up to 100 feet clear line of sight; Up to 20 feet around corners. Heavy vegetation, bushes or trees may impact range significantly.
Spacing Criteria
Lightcloud Blue devices should be placed within the specified range to communicate within the network. Building materials such as brick, concrete, and steel construction or heavy vegetation, bushes or trees may require additional Lightcloud Blue devices to extend around an obstruction.
Remote Access
Yes, using the Nano (sold separately). Requires 2.4GHz Wi-Fi network.
SmartShift
SmartShift
SmartShift is the most advanced - yet easiest to use - circadian lighting system, which syncs white color tuning with the local sunrise and sunset.
Requires the NANO/LCB (sold separately)
Requires the NANO/LCB (sold separately)
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
Color temperature: 2700-5000K Tunable White; RGBW 16+ Million Colors
Optics: 17°/33°/47° Beam Angle Adjustable (Factory Setting: 33°)
Color temperature: 2700-5000K Tunable White; RGBW 16+ Million Colors
Optics: 17°/33°/47° Beam Angle Adjustable (Factory Setting: 33°)
Compliance
UL Listed
Suitable for wet locations
IP Rating
Ingress protection rating of IP65 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
LED Characteristics
LEDs
Long-life, high-efficacy, discrete, surface-mount LEDs
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
Constant Current, Class 2 , 120-277V, 50/60 Hz 120V: 0.11A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05A
Dimmable
Yes, via the Lightcloud Blue mobile app and devices.
This fixture will not operate properly when connected to a standard (incandescent) dimmer or dimming control.
This fixture will not operate properly when connected to a standard (incandescent) dimmer or dimming control.
Dim to Off
No
Aux Power Supply
No
Surge Protection
L-N: 2 kV
L-PE, N-PE: 4 kV
L-PE, N-PE: 4 kV
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Housing
Die-cast aluminum
Tilt Increment
Rotates in 2 degree increments
Lens
Glass
Reflector
Polyethylene Terephthalate (PET)
Gaskets
Silicone and Nitrile rubber
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting

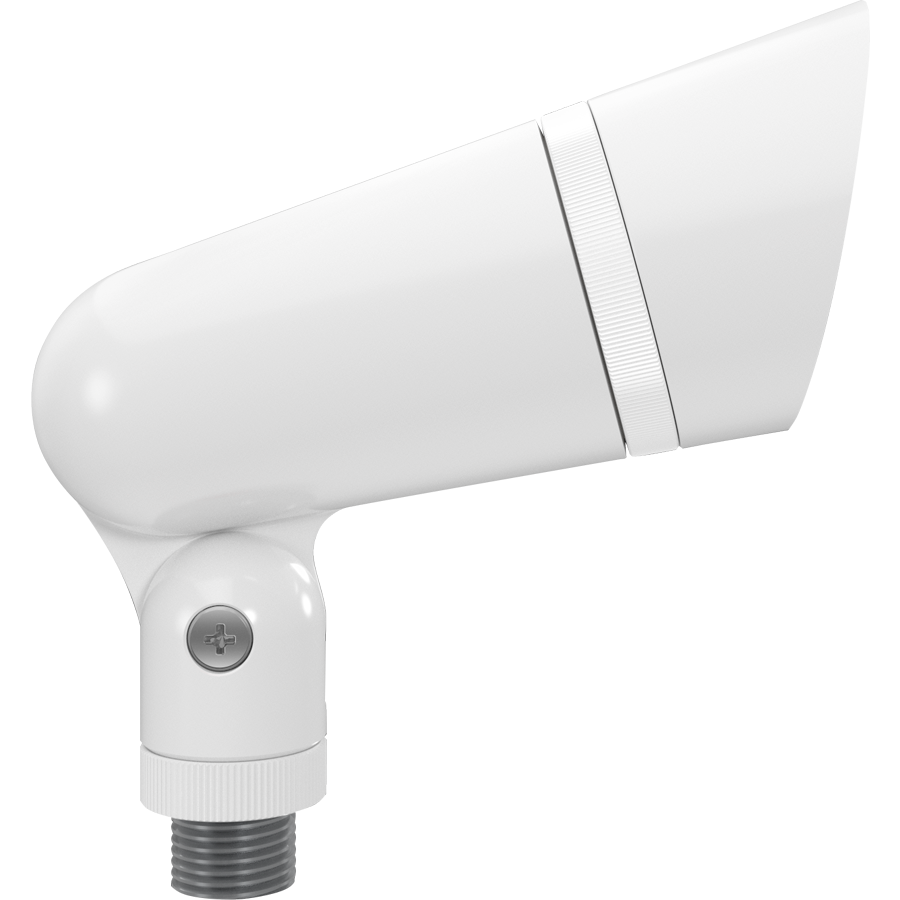

Knuckle arm mount
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
