LL323B

Spec Sheet Instructions Spec Sheet

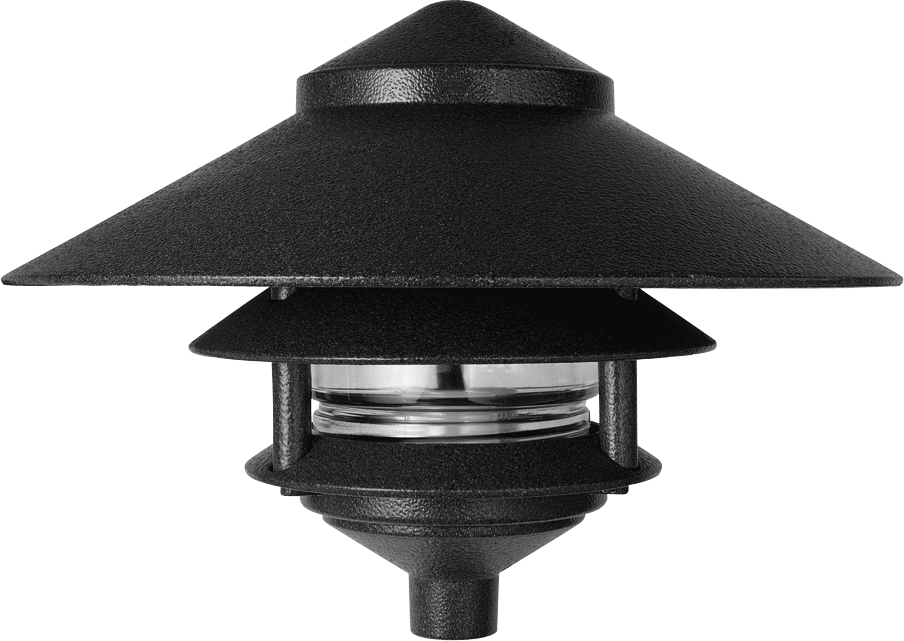

LL323B

Rugged die cast aluminum housing with durable powder coating

Socket with all copper electrical parts and 20" leads

Quick and secure installation with one corrosion-proof screw

Threaded, gasketed globes for durable weatherproofing and easy relamping

12" color matched mounting stem with 1/2" threads available

Includes easy mounting 1/2" threaded nipple

View Technical Specs

View Price & Availability

Performance

Watts	75W
Color Temp
Lumens	1,220 lm
Efficacy
Color Accuracy
L70 Lifespan

Type
120V
208V
240V
277V
Input Watts

Dimensions

Weight: 3.0 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations. Suitable for mounting within 4 feet of the ground.

Electrical

Socket

Medium base porcelain with all copper electrical parts and 20" leads, including a ground lead

Voltage

120V AC

Construction

Globes

Threaded, gasketed globe protects against weather, garden sprinklers and insects. Clear glass GL 100 globes standard for 4 Tier. Clear glass GL60 globes standard for 3 Tier. GL100 white globes also available for attractive appearance and glare reduction.

Housing

Die-cast aluminum housing with powder coat finish

Mounting Stem

Optional 12" mounting stem with 1/2" threads on both ends available here.

Optical

Lamp

Incandescent lamp not supplied. Medium base A-19 lamps, 120V. 75 watt max.

Other

Buy American Act Compliance

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
