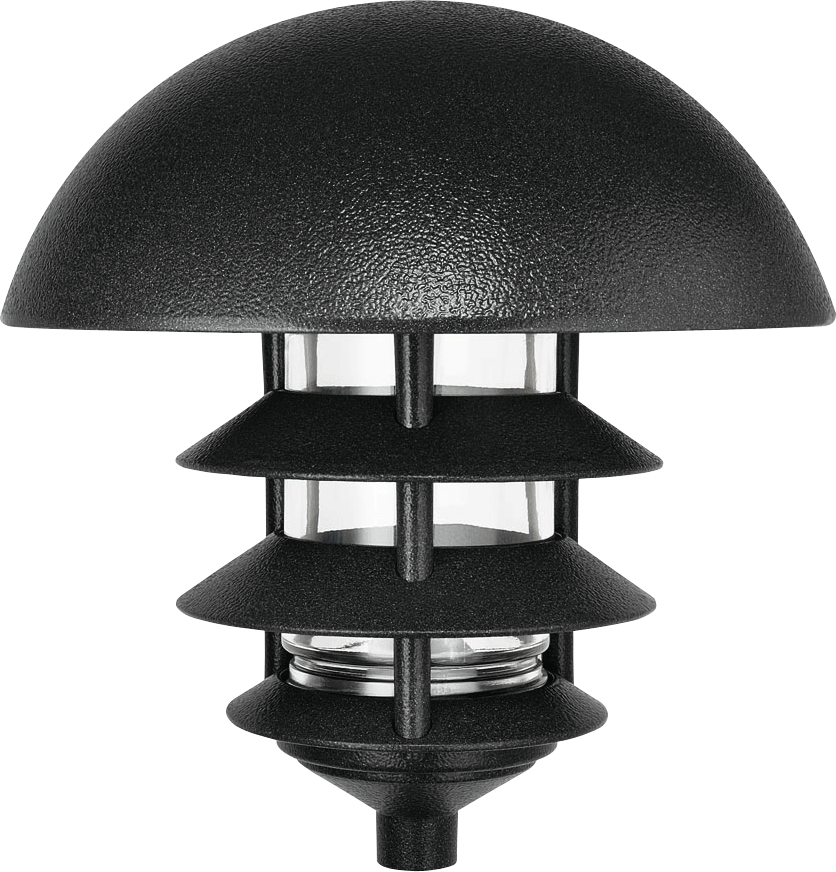

LLD4B
LLD4B
- New Dome Top allows a wide light spread for wider walkways and parking lots
- Rugged die cast aluminum housing with durable powder coating
- Socket with all copper electrical parts and 20" leads
- Quick and secure installation with one corrosion-proof screw
- Threaded, gasketed globes for durable weatherproofing and easy relamping
- 12" color matched mounting stem with 1/2" threads available
- Includes easy mounting 1/2" threaded nipple
Performance
| Watts | 100W |
| Color Temp | |
| Lumens | 1,650 lm |
| Efficacy | |
| Color Accuracy | |
| L70 Lifespan |
| Type | |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts |
Dimensions
Weight: 5.0 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for mounting within 4 ft of the ground.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Electrical
Socket
Medium base porcelain with all copper electrical parts and 20" leads, including a ground lead
Voltage
120V AC
Construction
Globes
Threaded, gasketed globe protects against weather, garden sprinklers and insects. Clear glass GL 100 globes standard for 4 Tier. Clear glass GL60 globes standard for 3 Tier. GL100 white globes also available for attractive appearance and glare reduction.
Housing
Die-cast aluminum housing with powder coat finish
Dome Top
Wide light spread for wider walkways & parking lots where maximum light is required. Full-cutoff for narrow walkways & glare free lighting in garden areas.
Installation
Mounting Stem
Optional 12" mounting stem with 1/2" threads on both ends available here.
Optical
Lamp
Incandescent lamp not supplied. Medium base A-19 lamps, 120V. 100 watt max.
