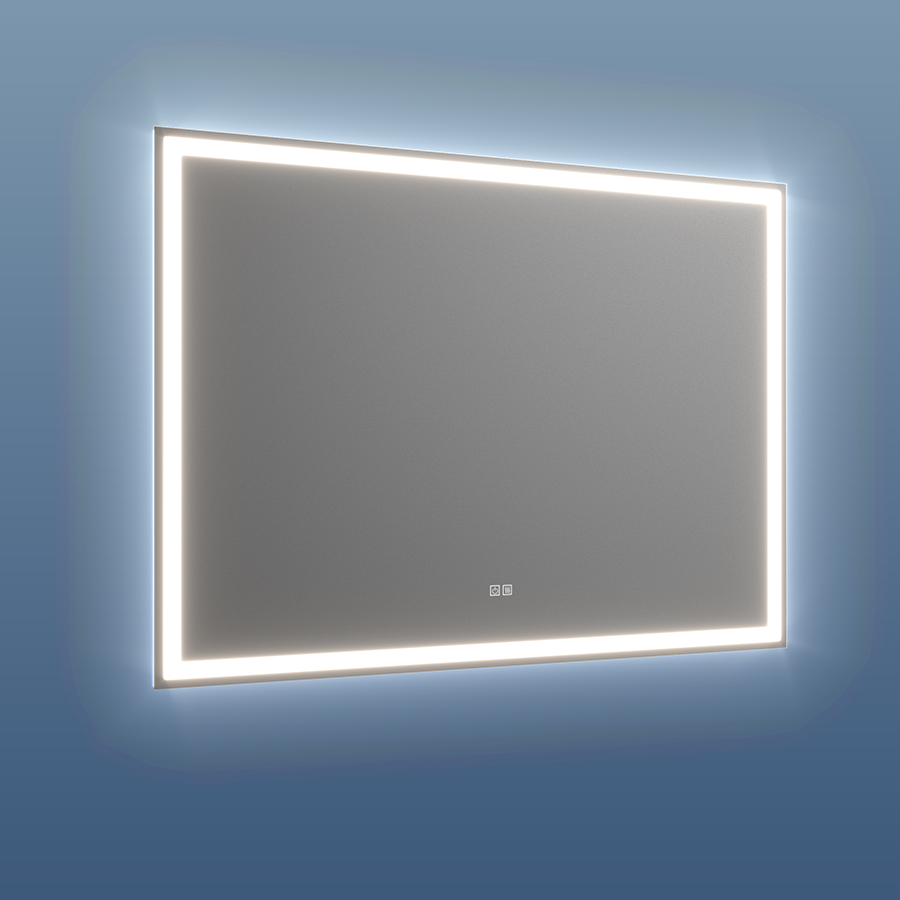

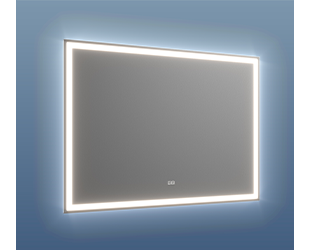

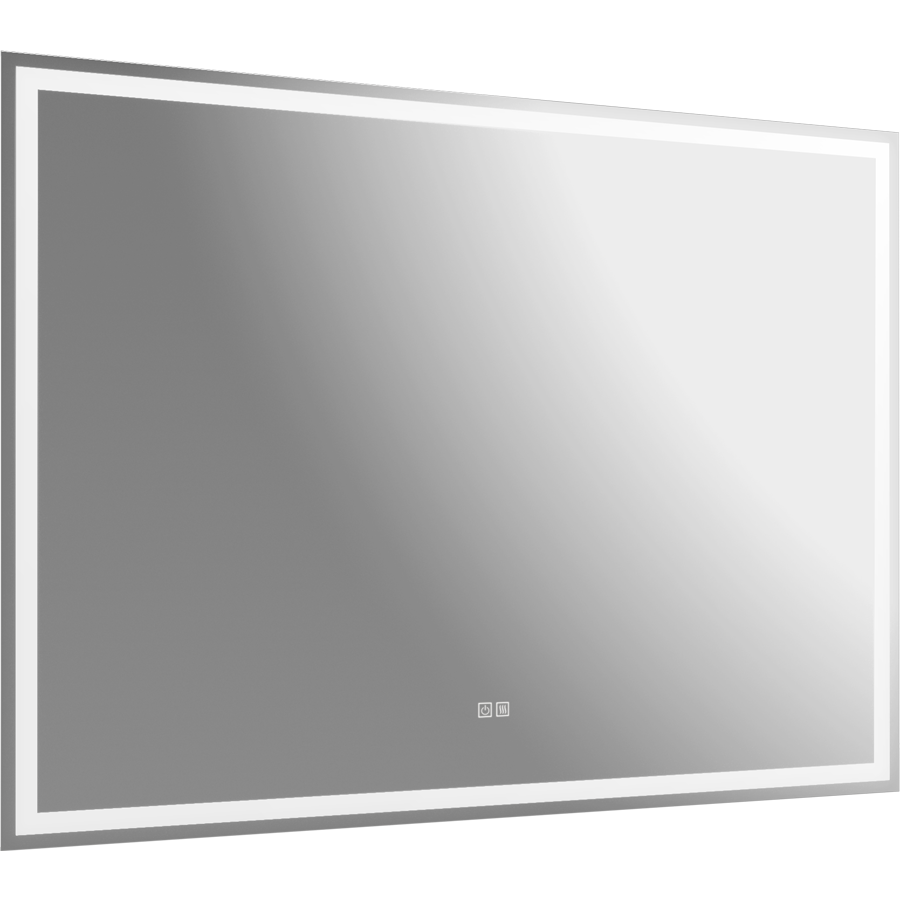

LM4836
- Field-adjustable color temperature via integrated touch control 2700/4000/6500K
- Touch-activated, anti-fog function keeps mirror clear during and after showers
- Memory function restores last used light level and CCT settings
- Frosted lens for smooth diffused light output
- 50,000-hr. lifespan, Title 24, 3-year limited warranty
Performance
| Watts | 70W |
| Color Temp | 2700/4000/6500K |
| Lumens | 2,100 lm |
| Efficacy | 50 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 70W |
Dimensions
Weight: 36.0 lbs
Technical Specifications
Performance
Product Type
Mirror, Frameless
Description
Stylish LED mirrors in round and rectangular designs that feature smooth, diffused light, touch-controlled dimming and CCT, anti-fog technology, and memory recall.
Input Wattage
70W
Lumens (Nominal)
2,100lm
Efficacy
50lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Voltage, Class 2 120V 50/60; 120V: 583mA
THD
≤20%
Power Factor
≥0.9
Dimmable
Yes, stepless dimming via integrated touch control down to 10%.
Input Voltage
120V
Flicker
≤30%
Construction
Operating Temperature Range
-4°F - 104°F (-20°C - 40°C)
Size
48"x36"
Illuminated Width
1.10"
Shape
Rectangle
Finish
Aluminum
Enclosure Material
Aluminum
Style
Frameless
Lens
Frosted lens for smooth diffused light output
Defogger
Yes, integrated touch control activates anti-fog feature to reduce mirror fogging.
Memory Function
Yes, memory function allows light level and CCT settings to be stored after 8 seconds.
LED Characteristics
Beam Angle
25° - 45° ;±10°
Color Temperature
Field adjustable via integrated touch control 2700/4000/6500K
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 greater than 50
Color Consistency
<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Installation
Mounting
Wall mount
Compliance
ETL Listed
This product has been tested by Intertek and found in compliance with accepted national standards.
Environment
Suitable for use indoors in dry, or damp environments.
IP Rating
IP44
Energy Star Approved
No
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Certification Model Number
LM4836
California Title 20 Compliant
No
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
3-Year Limited Warranty
The RAB 3-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty
