LOT2T110YW/D10/PCT

Spec Sheet Instructions Spec Sheet

DISCONTINUED

LOT2T110YW/D10/PCT

Lightweight design and low EPA minimize pole load

Best-in-class 5-G vibration rating

100,000-hour LED lifespan

View Technical Specs

Performance

Watts	110W
Color Temp	3000K (Warm)
Lumens	14,088 lm
Efficacy	131.8 lm/W
Color Accuracy	73 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.93A
208V	0.54A
240V	0.47A
277V	0.40A
Input Watts	106.9W

Dimensions

Weight: 20.9 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P2ZKG9QA

Electrical

Driver

Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.93A, 208V: 0.54A, 240V: 0.47A, 277V: 0.40A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

4.79% at 120V, 14.29% at 277V

Power Factor

99.6% at 120V, 93.3% at 277V

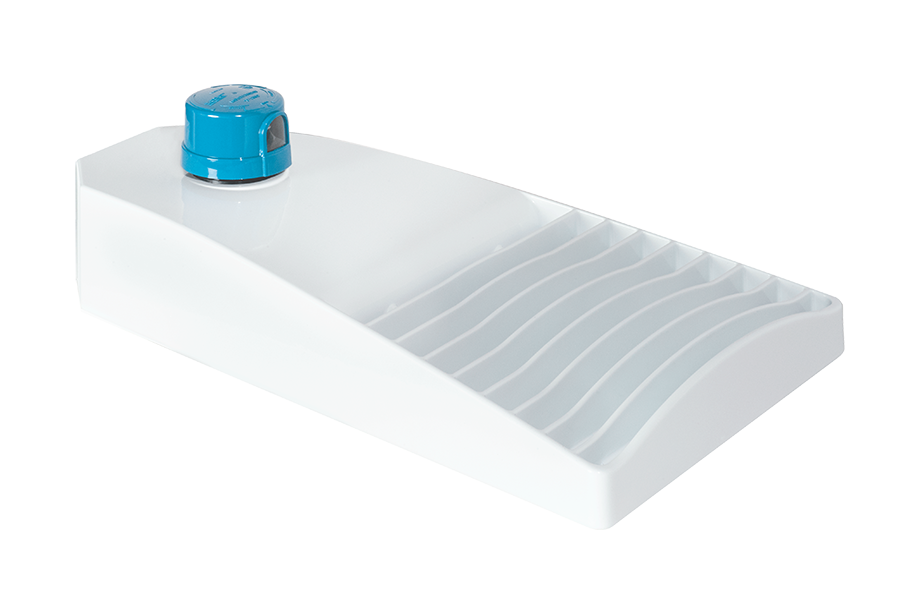

Photocell

120-277V Twistlock photocell included. Photocell is compatible with 120-277V.

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Construction

IES Classification

The Type II distribution is meant for lighting large areas, located by the roadside. Typically found on wide walkways, on ramps, entrace roadways and bike paths.

Effective Projected Area

EPA = 0.8

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs
