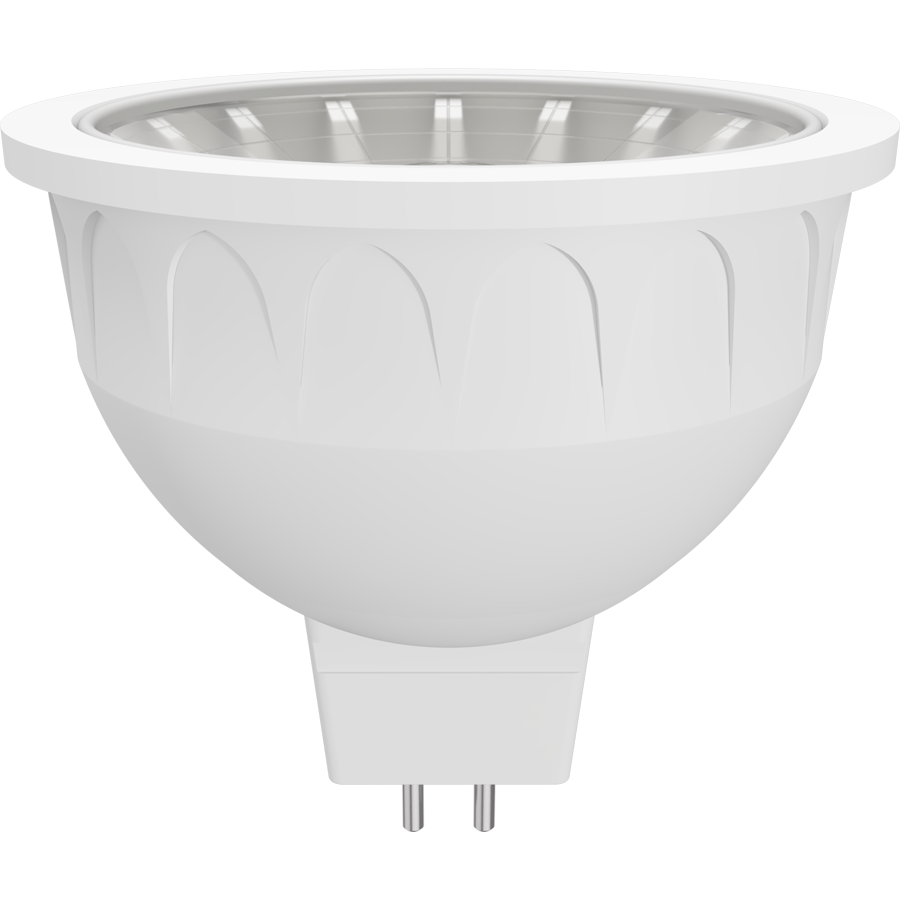

MR16-7-940-40D-DIM

Spec Sheet Family Spec Sheet Spec Sheet

MR16-7-940-40D-DIM

Produces rich and vibrant colors >90CRI

Energy efficient replacement for incandescent and halogen Small diameter reflectors

Single optic and full face lens for precise beam angle control

Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs

Title 20 Compliant, ENERGY STAR Compliant, UL Listed

View Technical Specs

View Price & Availability

Performance

Watts	7W
Color Temp	4000K
Lumens	660 lm
Efficacy	94
Color Accuracy	90 CRI
L70 Lifespan	15,000 Hours

Input Voltage	N/A
Power Factor	N/A
Flicker	N/A
THDi	N/A

Dimensions

Weight: 0.1 lbs

Technical Specifications

Performance

Product Type

Small Reflectors, 90CRI Dimmable

Wattage Equivalency

50W Halogen

Input Wattage

Lumens (Nominal)

660lm

Efficacy

94lm/W

L70 Lifespan

15,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current 12V n/a; 120V: 580mA

THD

<65

Power Factor

0.7

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

12V

Flicker

<30%

Construction

Operating Temperature Range

-4°F - 104°F (-20°C - 40°C)

Shape

MR16

Finish

White

Enclosure Material

Polycarbonate

Lens Finish

Frosted

LED Characteristics

Beam Angle

40°

Color Temperature

4000K

Color Accuracy (CRI)

≥90

R9 Value

High color performance with R9 greater than 0

Color Consistency

<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Installation

Base Type

GU5.3 Bi-pin

Compliance

Environment

Suitable for use indoors in dry and damp environments.

Fixture Rating

Suitable for use in enclosed fixtures

Energy Star Approved

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Certification Model Number

P30031(MR16-7-940-40D-DIM)

California Title 20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
