Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.

DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)

Learn more at www.rablighting.com/feature/new-lightcloud-blue.

No

Bluetooth Mesh

Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.

Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners

Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.

Method 1: Delete from App
Open the app and access the device settings for the paired device. Be sure that the device is online and select 'Delete'. The device will flash on/off 5 times and return to full brightness.
Method 2: Manual
Power the device off and on 5x consecutively. Do not allow less than 4s to elapse from switching off to on. Do not allow more than 2s to elapse from switching on to off. The device will flash 3x, then reset to 100% brightness at default CCT.
Method 3: Rapid Reset Tool
The Rapid Reset process must be done by a professional electrician qualified by RAB. Reach out to your RAB sales manager to request a Rapid Reset Tool. The tool simply needs to be placed directly on the small Lightcloud Blue logo on the device for 2s or until the lamp/luminaire flashes 3x, then resets to 100% brightness at the default CCT.

Low Voltage Controller+Sensor

50,000-Hour LED lifespan based on IES LM-70 results

Yes via the Lightcloud Blue mobile app and devices.
This product will not operate properly when connected to a standard (incandescent) dimmer or dimming control.

12V

50/60Hz

30mA

-4°F to 140°F (-20°C to 60°C)

Pogo pin

50 ft

50 ft diameter mounted at 50 ft

Microwave (MVS)

Uncommissioned State:
Motion Sensitivity: High
Brightness when triggered : 100%
Hold time: 20 minutes
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Daylight: Disabled

Commissioned State:
Once pair, the sensor will default to disabled. Once enabled the following settings apply:
Motion Sensitivity: High
Brightness when triggered: Last on status
Hold time: 20 minutes
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Daylight: Disabled

Yes, using the Lightcloud Blue mobile app

Occupancy or Vacancy (option to disable or set as an independent sensor)

On or On at a Dim Level

Off or On at a Dim Level

1 minute to 240 minutes

The sensor will determine to trigger the light(s) on or not based on the daylight threshold level set in the Lightcloud Blue mobile app.

150 lux to 1500 lux

Round

Black

Plastic

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IP66

This product is on the Design Lights Consortium (DLC) Network Lighting Controls (NLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)

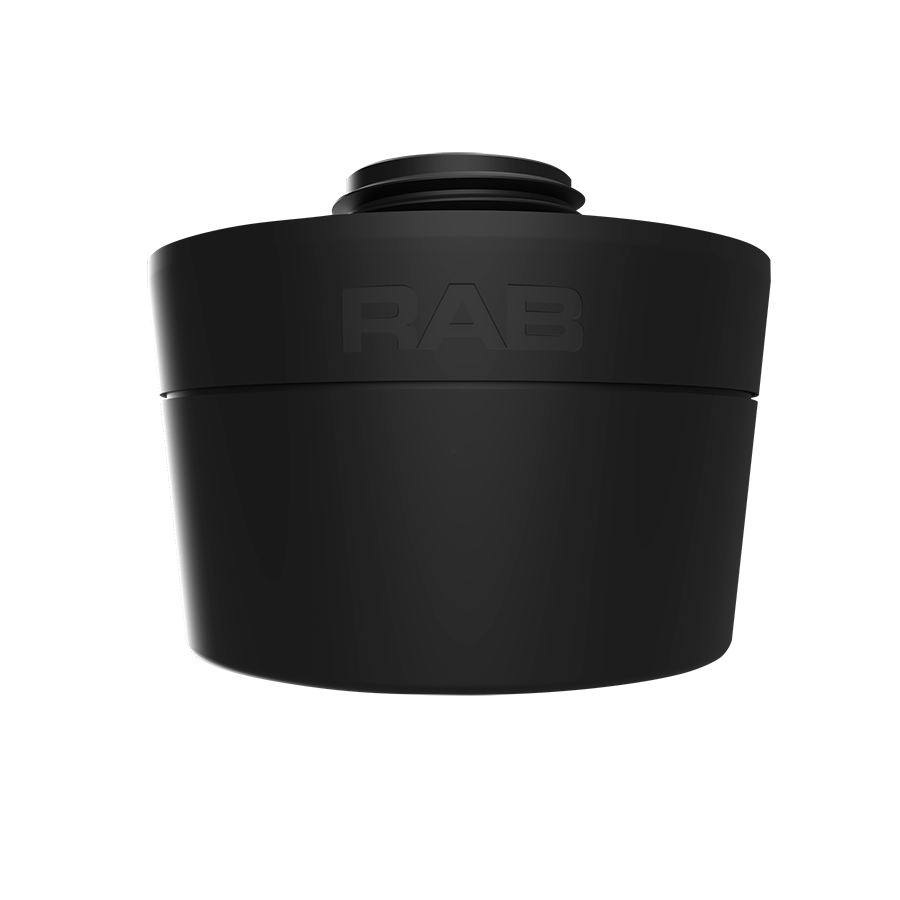

MVS50B/LCB

No

No

Lawful for Sales in California

Mercury and UV free. RoHS-compliant components.

Complies with Part 15 of the FCC Rules

H17 Field-Adjustable High Bay

RBAY17 Field-Adjustable High Bay

VAN17 3-Way Adjustable Canopy

PARK34 Field-Adjustable Garage Light

Requires RAAS; RAASB:
SHARK Field-Adjustable Linear Washdown

SEAL Field-Adjustable Washdown

GUS 17
Linear wrap

SR Field-Adjustable Strip
Linear strip

RAAS
Right angle arm support
RAASB
Right angle arm support

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
