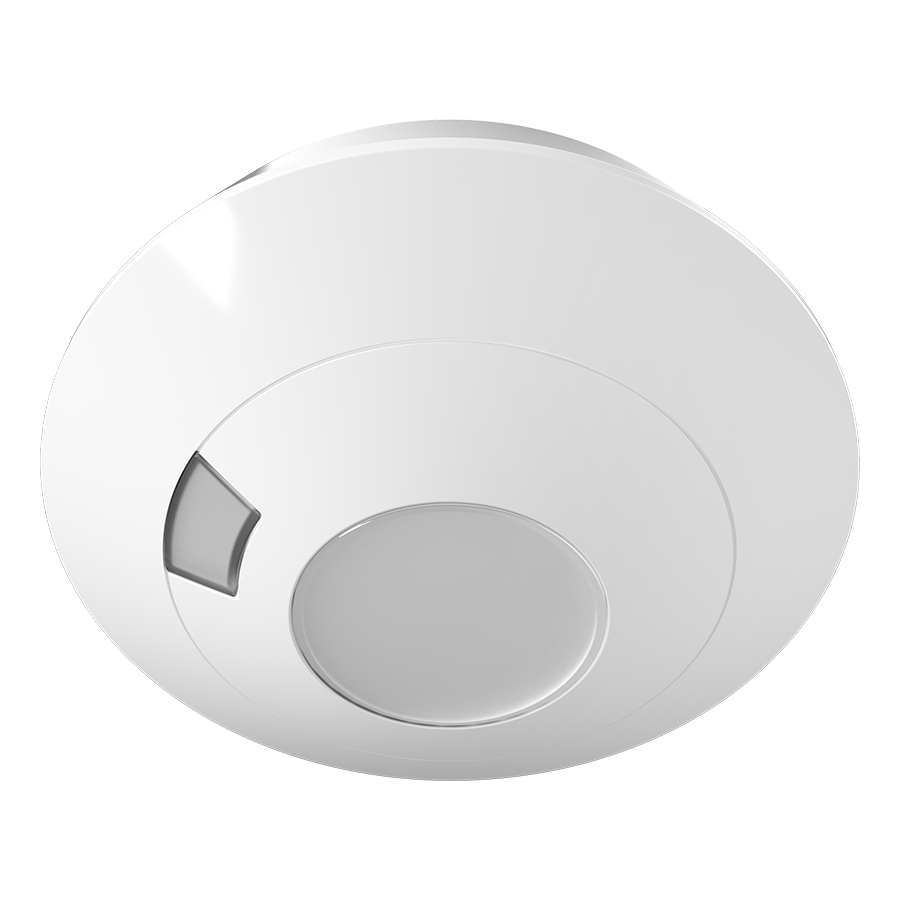

MVSW50/LCB
MVSW50/LCB
- Hardwired occupancy sensor, easily mounts to junction box
- Occupancy and vacancy sensing with adjustable sensitivity and timeouts
- Communicates over secure wireless Bluetooth Mesh network - no Gateway or Hub required
- Motion detector with built-in fixture and zone control
- Closed loop daylight harvesting
Dimensions
Weight: 0.4 lbs
Technical Specifications
Lightcloud
Lightcloud Blue Installed
Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at www.rablighting.com/feature/new-lightcloud-blue.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at www.rablighting.com/feature/new-lightcloud-blue.
Gateway Required
No
Communication Protocol
Bluetooth Mesh
Range
Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.
Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners.
Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners.
Spacing Criteria
Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.
Max # of Devices to Control
This sensor can be assigned to a single Area in the Lightcloud Blue mobile app to control all lights in that Area.
Factory Reset
To restore the Ceiling Sensor to factory settings, press the reset button on the face of the sensor for 10 seconds until the indicator light flashes red.
Performance
Product Type
Occupancy/Daylight Sensor
Description
Ceiling sensors for indoor and outdoor applications for low or high ceilings. Configure sensors for occupancy, vacancy, and daylight using the Lightcloud Blue app. Now with load switching capacity up to 8A.
Electrical
Load Switching Capacity
Magnetic/Resistance:
8A @ 120VAC; 5A @ 277VAC
LED:
5A @ 120VAC; 3A @ 277VAC
8A @ 120VAC; 5A @ 277VAC
LED:
5A @ 120VAC; 3A @ 277VAC
Dimmable
Yes.
When controlling non-Lightcloud Blue lights, requires separate 0-10V DC dimming circuit.
When controlling Lightcloud Blue lights, no load should be connected for wireless communication.
When controlling non-Lightcloud Blue lights, requires separate 0-10V DC dimming circuit.
When controlling Lightcloud Blue lights, no load should be connected for wireless communication.
Input Voltage
120-277V
Operating Frequency (Hz)
60Hz
Input Current @ 120V (mA)
0.007mA
Input Current @ 277V (mA)
0.001mA
Operating Temperature
-4°F to 140°F (-20°C to 60°C)
Sensor Settings
Sensor Connection Type
Hardwired
Max Mounting Height
50 ft
Detection Range
20 ft diameter at 50 ft mounting height
Sensor Technology
Microwave (MVS)
Default Setting
Uncommissioned State:
Motion Sensitivity: High
Brightness when triggered : 100%
Hold time: 20 minutes
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Daylight Sensing: Disabled
Photocell: Disabled
Commissioned State:
Once pair, the sensor will default to disabled. Once enabled the following settings apply:
Motion Sensitivity: High
Brightness when triggered: Last on status
Hold time: 20 minutes
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Daylight Sensing: Disabled
Photocell: Disabled
Motion Sensitivity: High
Brightness when triggered : 100%
Hold time: 20 minutes
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Daylight Sensing: Disabled
Photocell: Disabled
Commissioned State:
Once pair, the sensor will default to disabled. Once enabled the following settings apply:
Motion Sensitivity: High
Brightness when triggered: Last on status
Hold time: 20 minutes
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Daylight Sensing: Disabled
Photocell: Disabled
Adjustable Sensor Settings?
Yes, using the Lightcloud Blue mobile app
Sensing Type
Occupancy, Vacancy
Occupied Actions
On or On at a Dim Level
Vacant Actions
Off or On at a Dim Level
Occupancy Timeout
1 minute to 240 minutes
Daylight Sensing
At the time of the first occupancy event the light will stay off or turn on at an appropriate dim level to meet the daylight threshold level set in the Lightcloud Blue mobile app.
Dim levels will continuously adjust based on the daylight threshold level set in the Lightcloud Blue mobile app.
Dim levels will continuously adjust based on the daylight threshold level set in the Lightcloud Blue mobile app.
Installation
Mounting
Surface mount
Construction
Shape
Round
Finish
White
Enclosure Material
Polycarbonate
Compliance
Listings
UL Listed, UL Recognized
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IP Rating
IP66
DLC NLC Listed
This system is on the Design Lights Consortium (DLC) Network Lighting Controls (NLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
