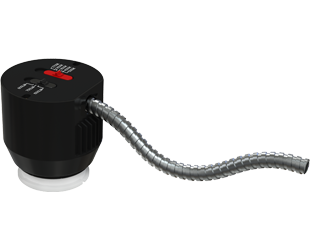

ND22-12

Spec Sheet Instructions Sell Sheet Family Spec Sheet Spec Sheet

ND22-12

View Technical Specs

View Price & Availability

Performance

Watts
Color Temp
Lumens
Efficacy
Color Accuracy
L70 Lifespan	50,000 Hours

Type	Constant Current, Class A
120V
208V
240V
277V
Input Watts

Dimensions

Weight: 1.0 lbs

Technical Specifications

Performance

Product Type

Modular Commercial Downlight

Description

Modular commercial downlights with field-adjustable wattage, CCT, and optics. Select from various interchangeable modules, trims, and accessories.

Input Wattage

12/9/7W

Lumens

1,000/750/600lm

Efficacy

83/83/85

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current, Class A, 50/60 Hz, 120V-277V, 120V: 0.35A, 277V: 0.17A

THD

≤20%

Power Factor

≥0.9/120V
≥0.7/277V

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV on 120V and 0-10V on 120-277V dimming systems. See Dimmer Compatibility List.

Controls

12V Aux for Lightcloud Blue compatibility

Input Voltage

120-277V

Operating Frequency

50/60Hz

Input Current @ 120V (mA)

110mA

Input Current @ 208V (mA)

58mA

Input Current @ 240V (mA)

51mA

Input Current @ 277V (mA)

43mA

Operating Temperature

-4°F to 104°F (-20 to 40°C)

Flicker

≤30%

Emergency Back up

Field-installable emergency backup available

LED Characteristics

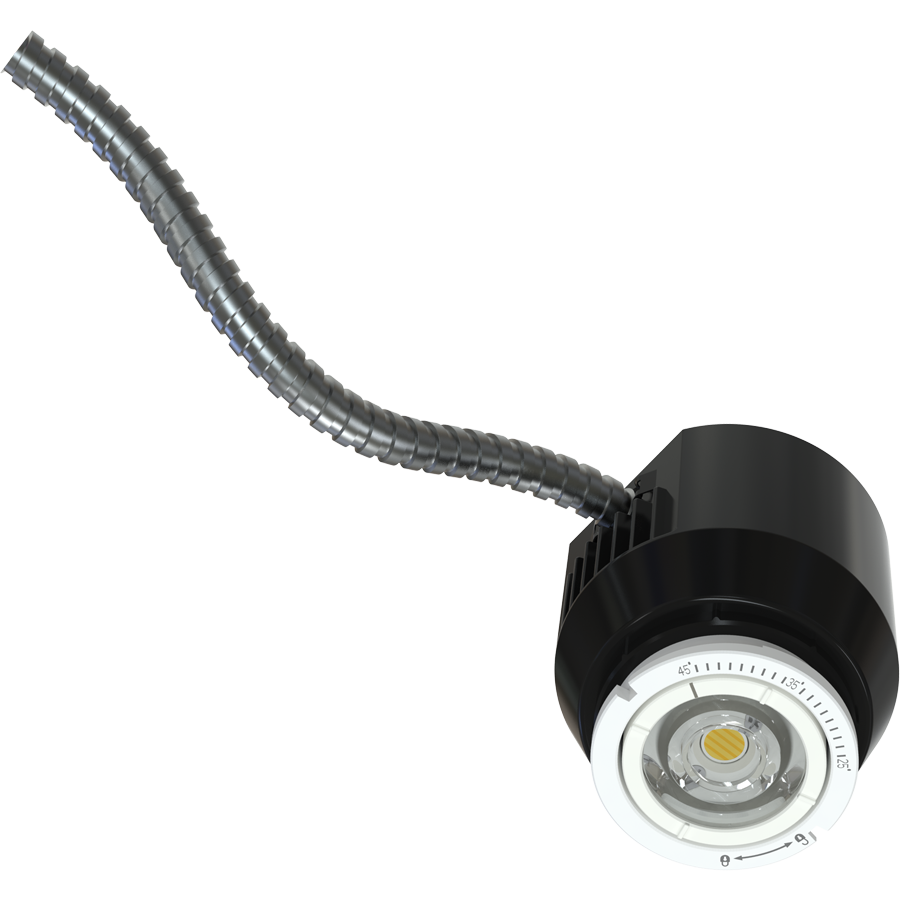

Beam Angle

Adjustable 25° to 45° beam angle via rotating lens assembly

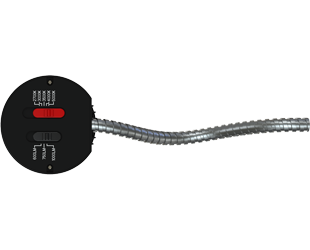

Color Temperature

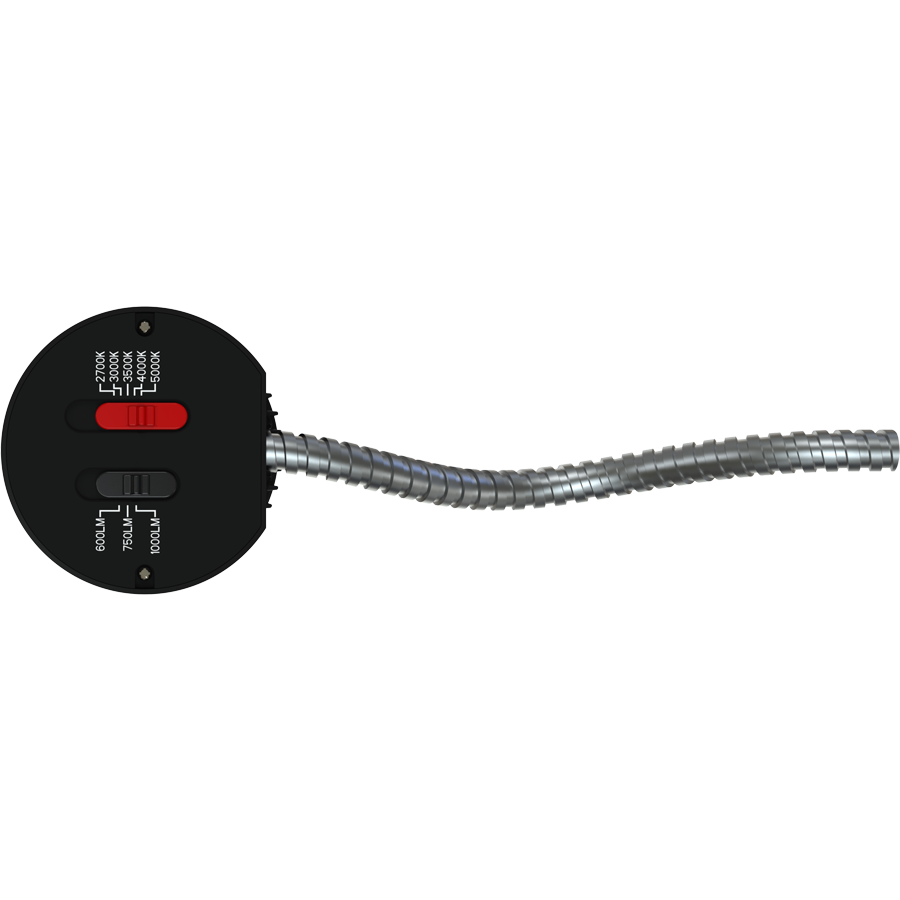

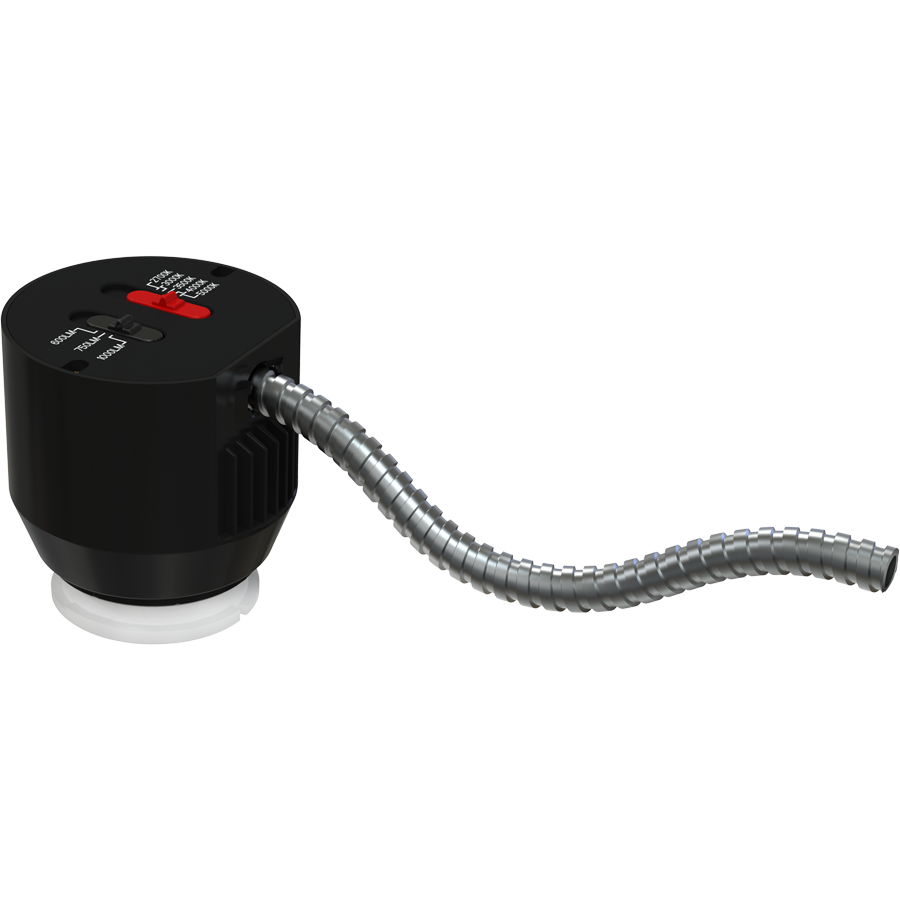

Field-adjustable via dip switch 2700/3000/3500/4000/5000K

Factory Setting

4000K

Color Accuracy (CRI)

90 CRI

R9 Value

High color performance with R9 greater than 50

Color Consistency

<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Set Up

Step 1: Choose the light engine
Step 2: Choose the trim style
Step 3: (Optional) choose a new construction housing
Step 4: (Optional) choose an EM battery or Lightcloud Blue Controller

Mounting

Can be used in retrofit, remodel or new construction installations. Can accommodate up to 2" ceiling thickness

Construction

Trim Size

Trim sold separately

Lens

Curved decorative diffuser

Compliance

Listings

UL Listed, UL Classified

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IC Rated

Air Tight

Housing certified Air Tight as per ASTM-E283

Energy Star Approved

This product is ENERGY STAR® Version 1.0 Certified.

Energy Star ID

3554285

California Title 20 Compliant

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6

California Energy Commission (CEC) Status

Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Compatible Accessories

Trims are available in various shapes and colors.
R = Round; S = Square; -WW = Wall Wash
HZ = Haze/White; W = White; Haze = Haze; B = Black

ND22T-3[R/S][HW/W/H/B][-WW]
3" ND22 Color Trim

ND22T-4[R/S][HW/W/H/B][-WW]
4" ND22 Color Trim

ND22T-6[R/S][HW/W/H/B][-WW]
6" ND22 Color Trim

New Construction Housings
ND22-[R/S]FRAME
ND22 Mounting plate with nailer bar

Wireless Bluetooth Mesh Controls
LCBAUX[-X]/[W/B]
Lightcloud Blue Low Voltage Controllers

Emergency Drivers
EMB-9
Emergency Driver 100-347V 9W 0-10V

EMB-15
Emergency Driver 100-347V 15W 0-10V

EMB-25
Emergency Driver 100-347V 25W 0-10V
