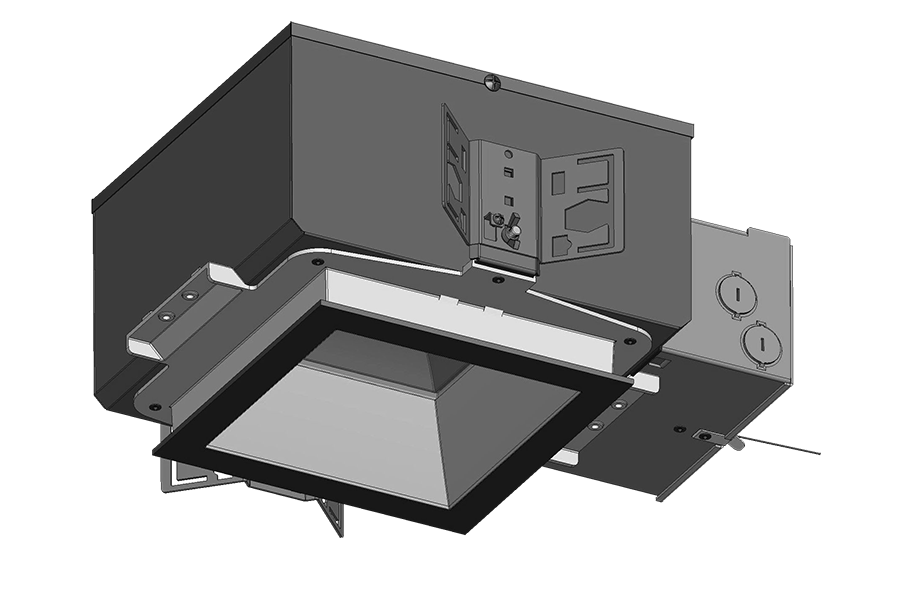

• Butterfly bracket allows mounting with bar stock, "C" channel, 1/2" conduit or nailer bars
  • Low-profile design allows for installation in ceilings with limited space
  • Sturdy design with die cast aperture frame
View Technical Specs
Performance
Watts 26W
Color Temp See Trim Module*
Lumens See Trim Module*
Efficacy See Trim Module*
Color Accuracy 80 CRI
L70 Lifespan
Type Constant Current
120V 0.17A
208V 0.11A
240V 0.10A
277V 0.09A
Input Watts See Trim Module*
Dimensions

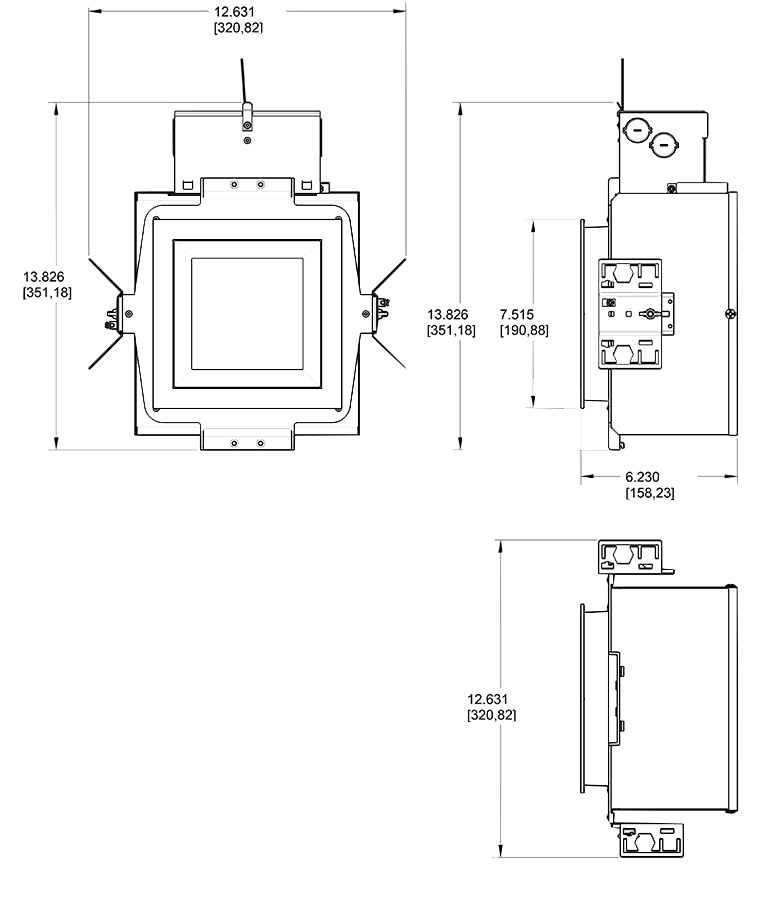

Link to Dimension Drawing

Weight: 4.8 lbs

Technical Specifications
Lightcloud
Lightcloud Controller Installed
Fixture, Zone, and plug-load control from one powerful device. Capable of switching, 0-10V dimming, power monitoring. Can also be used to extend the range of the Lightcloud mesh network. Attach to fixture, junction box, or electrical panel. Learn more at www.lightcloud.com
Compliance
UL Listed
Suitable for wet locations covered ceiling
CCEA Compliant
Luminaire Requirements used in Environmental Air Space per the electrical code specification of the City of Chicago
Energy Star Approved
ENERGY STAR® Version 2.0 Certified
Construction
IC Rated
Suitable for direct contact with insulation
Housing Component
This component must be ordered with New Construction Square Trim Module in order to make a complete fixture.
See here for New Construction Square Trim Module.
Insulation Contact (IC)
Allows direct contact with insulation or keep insulation 3" from fixture at all times
Ambient Temperature
Suitable for use in up to 40°C (104°F)
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Aperture Size
6" Rough-In
Drop Ceiling Installation
NDLED can be installed in drop ceiling tiles when using optional c-channel bars and following local construction codes
Junction Box
Integral junction box with wiring capacity for
Min 90°C supply conductors
4 in 4 out
Air Tight
Housing certified Air Tight as per ASTM E283
Easy Installation
The EZConnector makes installation easy
Thermal Protector
Thermal protector included. Disables power if temperature exceeds safe operation levels.
Electrical
Driver
ELV, 0-10V and TRIAC Dimming, Constant Current, Class 2, 120V-277V, 50/60Hz, Power Factor 98%, THD ≤ 20%
Dimming Driver
0 - 10V (at 120-277V), TRIAC and ELV (at 120V only). See dimmer compatibility guide here.
Performance
Wattage Equivalency
Equivalent to 100W PAR
Installation
Mounting
Housing includes nailer bars and butterfly brackets. Brackets also accommodate mounting with 1/4" to 1/2" bar stock, C channel or 1/2" conduit.
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
