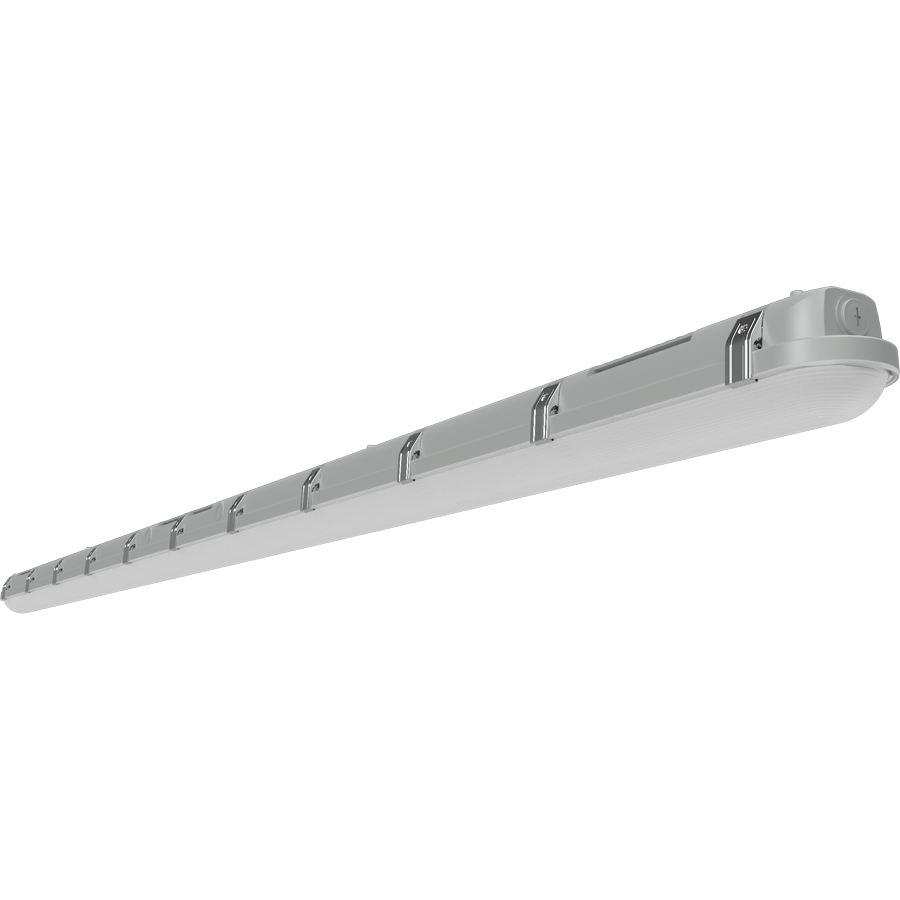

OTTER8

90W 3500/4000/5000K

DLC Premium listed

100,000-Hour LED lifespan

0-10V Dimming (standard)5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	90/75/60W
Color Temp	3500/4000/5000K
Lumens	8299-12755 lm
Efficacy	138.7-150.6 lm/W
Color Accuracy	83-85 CRI
L70 Lifespan	100,000 Hours

Type
120V	0.75A/0.62A/0.49A
208V	0.43A/0.36A/0.28A
240V	0.38A/0.31A/0.24A
277V	0.34A/0.27A/0.22A
Input Watts	57-89.5W

EZ-Layout

Create Custom Lighting Layout

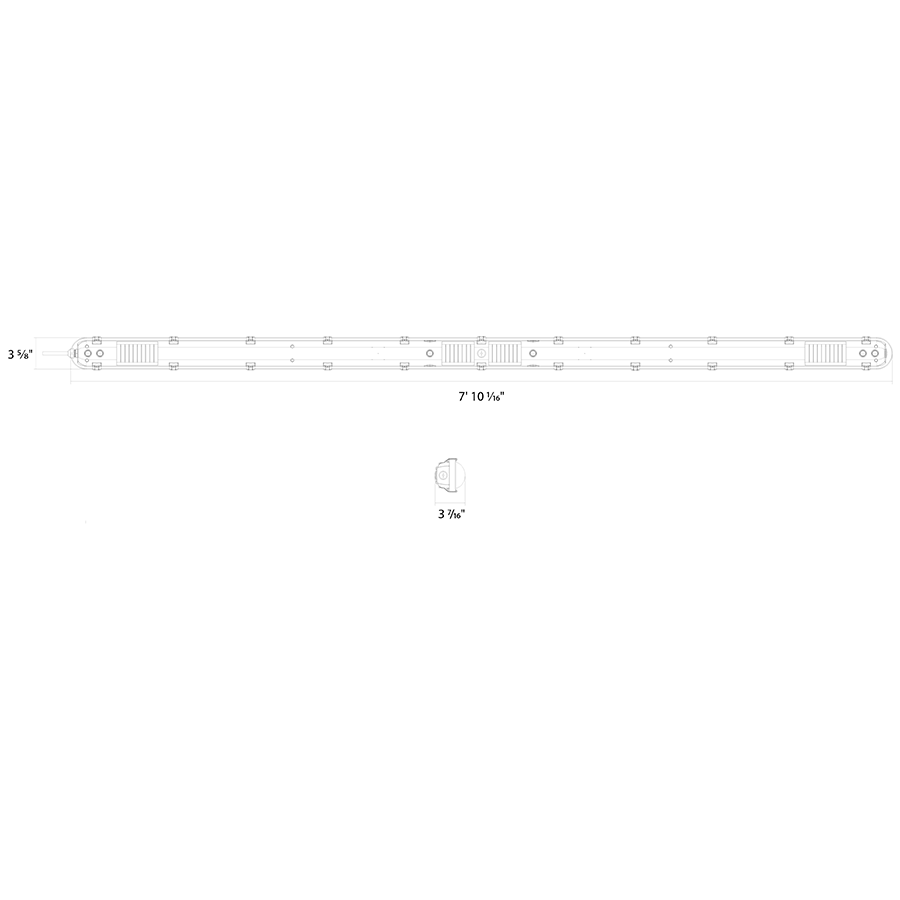

Dimensions

Weight: 10.1 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
90/75/60W (factory default 90W)
Color Temperature Adjustable:
3500K, 4000K and 5000K (factory default 4000K)

Compliance

UL Listed

Suitable for wet locations

NEMA Rating

NEMA 4X rating indicates an enclosure protects against windblown dust and rain, splashing and hose-directed water, and offers additional corrosion resistance.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP66 for dust and water

UL 746C F1 Rated

Built with UL 746C F1 rated polymeric materials certified for long-term outdoor exposure. Engineered to withstand prolonged UV exposure, moisture, and harsh weather conditions while maintaining mechanical strength, impact resistance, and flammability performance for lasting durability in demanding outdoor environments.

UL94

5VA: burning stops within 60 seconds on a vertical specimen; no drips allowed; plaque specimens may not have a burn-through (no hole).

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Optical

NEMA Type

NEMA Type 6H x 5V

Electrical

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Surge Protection

2.5 kV

Aux Power Supply

Yes

Dim to Off

Yes

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Construction

IK Rating

IK09 Protected against 10 joules impact. Equivalent to impact of 5kg mass dropped from 200mm above impacted surface.

Housing Material

Plastic

Lens

Frosted polycarbonate lens

Reflector

Cold-rolled steel

Gaskets

High-temperature silicone

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use in up to 113°F (45°C)

Installation

Tether Cables are provided for easy installation. Quick connector may be used for quick and easy wiring.

Green Technology

Mercury and UV free. RoHS-compliant components.

Effective Projected Area (EPA)

EPA = 0.6

Finish

Formulated for high durability and long-lasting color

Installation

Mounting

Quick-mount, stainless steel snap on brackets supplied for surface mounting. V-Hook brackets supplied standard for suspending the fixture.

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
