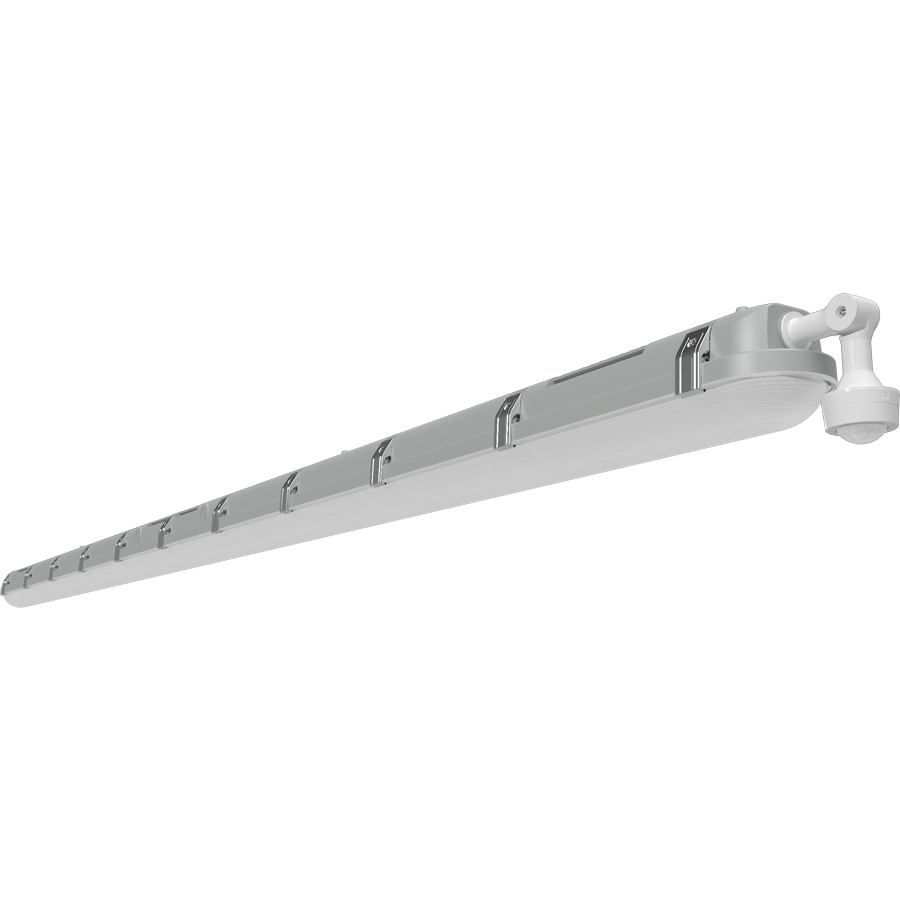

OTTER8/PIR
90W 3500/4000/5000K
- DLC Premium listed
- 100,000-Hour LED lifespan
- 0-10V Dimming (standard)5-Year, limited warranty
Performance
| Watts | 90/75/60W |
| Color Temp | 3500/4000/5000K |
| Lumens | 8299-12755 lm |
| Efficacy | 138.7-150.6 lm/W |
| Color Accuracy | 83-85 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | |
| 120V | 0.75A/0.62A/0.49A |
| 208V | 0.43A/0.36A/0.28A |
| 240V | 0.38A/0.31A/0.24A |
| 277V | 0.34A/0.27A/0.22A |
| Input Watts | 57-89.5W |
Dimensions
Weight: 10.3 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
90/75/60W (factory default 90W)
Color Temperature Adjustable:
3500K, 4000K and 5000K (factory default 4000K)
90/75/60W (factory default 90W)
Color Temperature Adjustable:
3500K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for wet locations
NEMA Rating
NEMA 4X rating indicates an enclosure protects against windblown dust and rain, splashing and hose-directed water, and offers additional corrosion resistance.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP66 for dust and water
UL 746C F1 Rated
Built with UL 746C F1 rated polymeric materials certified for long-term outdoor exposure. Engineered to withstand prolonged UV exposure, moisture, and harsh weather conditions while maintaining mechanical strength, impact resistance, and flammability performance for lasting durability in demanding outdoor environments.
UL94
5VA: burning stops within 60 seconds on a vertical specimen; no drips allowed; plaque specimens may not have a burn-through (no hole).
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Optical
NEMA Type
NEMA Type 6H x 5V
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Surge Protection
2.5 kV
Aux Power Supply
Yes
Dim to Off
Yes
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Construction
IK Rating
IK09 Protected against 10 joules impact. Equivalent to impact of 5kg mass dropped from 200mm above impacted surface.
Housing Material
Plastic
Lens
Frosted polycarbonate lens
Reflector
Cold-rolled steel
Gaskets
High-temperature silicone
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 113°F (45°C)
Installation
Tether Cables are provided for easy installation. Quick connector may be used for quick and easy wiring.
Green Technology
Mercury and UV free. RoHS-compliant components.
Effective Projected Area (EPA)
EPA = 0.6
Finish
Formulated for high durability and long-lasting color
Installation
Mounting
Quick-mount, stainless steel snap on brackets supplied for surface mounting. V-Hook brackets supplied standard for suspending the fixture.
Sensor Settings
Maxmium Mounting Height
19.68 ft. (6m)
Operating Voltage
DC Input: 10.5-15V >50mA
Dimming Control
ON/OFF 0-10V Dimmable
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
IP Rating
Ingress protection rating of IP65 for dust and water
Brightness
Factory Setting: 100%
Sensitivity Setting
25%/50%/75%/100%
(Factory Setting: 50%)
(Factory Setting: 50%)
Standby Period
0s/10s/30s/1min/5min/10min/30min/60min/+∞
(Factory Setting: 1min)
(Factory Setting: 1min)
Daylight
2Lux/10Lux/30Lux/50lLux/80Lux/120Lux/Disabled
(Factory Setting: disabled)
(Factory Setting: disabled)
Hold Time
5s/30s/1min/3min/5min/10min/20min/30min
(Factory Setting: 20min)
(Factory Setting: 20min)
Standby Dimming
10%20%/30%/50%
(Factory Setting: 20%)
(Factory Setting: 20%)
Detection Angle
<120° Fresnel lens
Detection Distance
Radius 9.84-19.68 ft. (3-6m)
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
