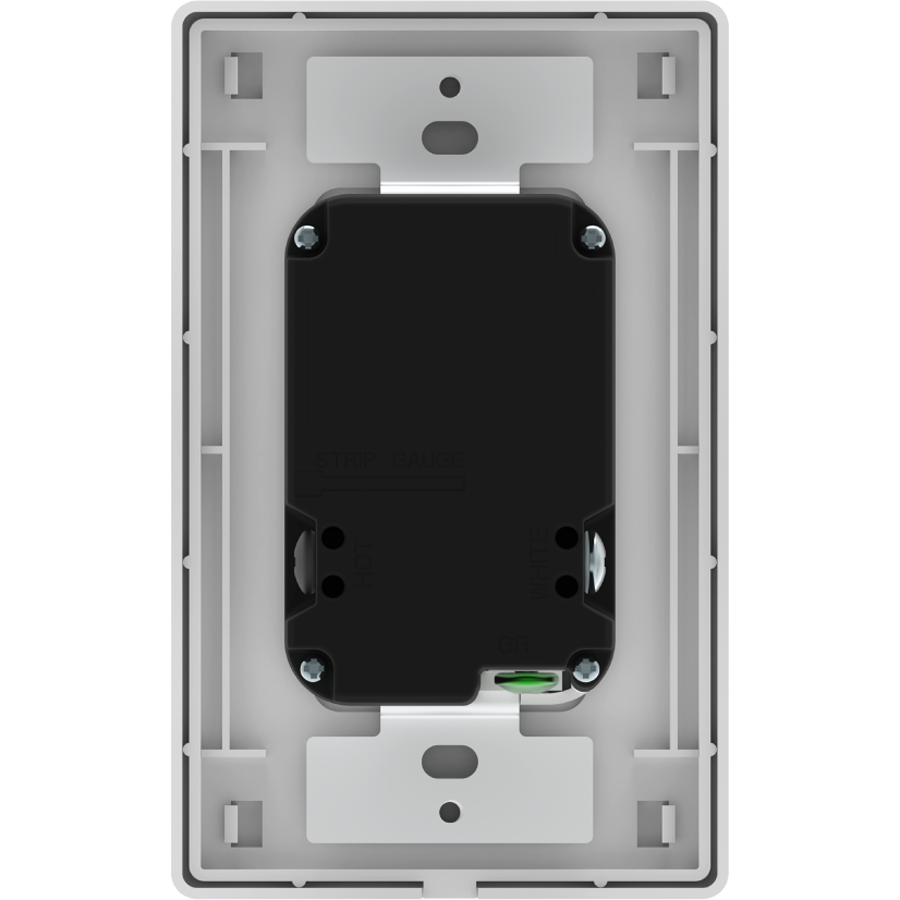

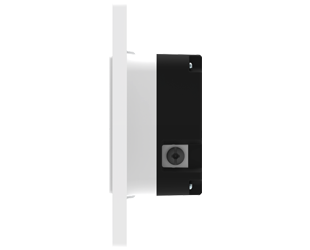

OUTLET15/LCB
OUTLET15/LCB
- 120V, 20A Resistive Load Rating

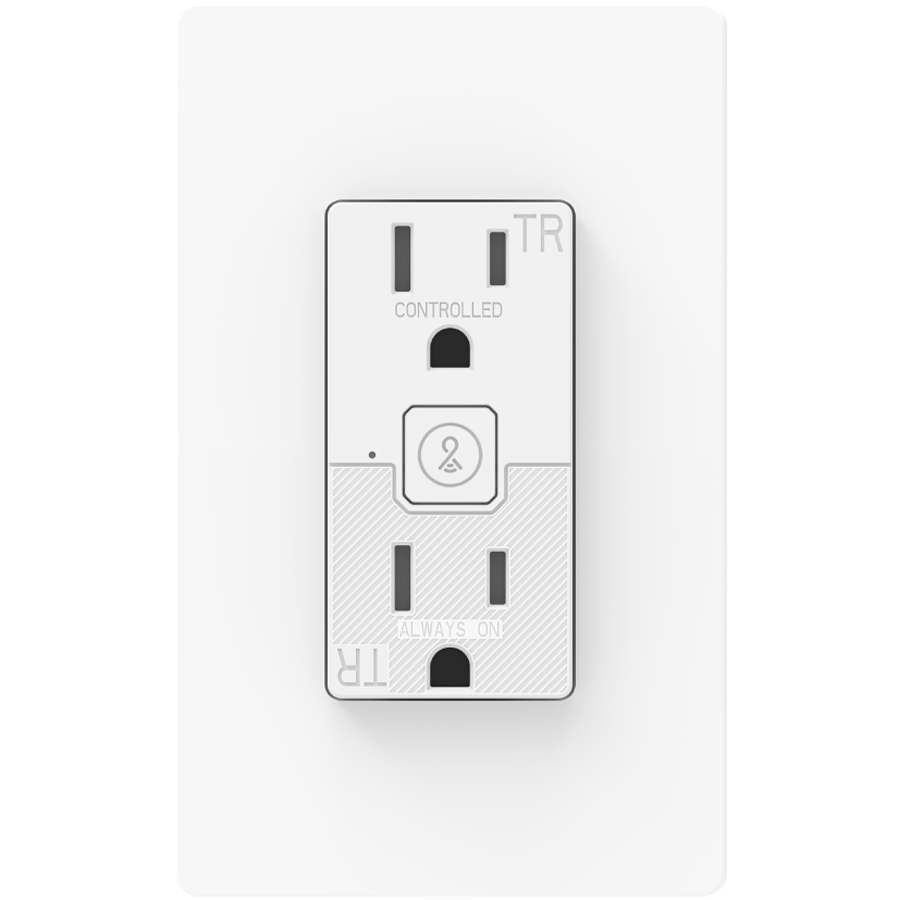

- Top receptacle controlled with Lightcloud Blue, bottom receptacle always on
- Wirelessly configure schedules and occupancy control using the mobile app
- Power monitoring available on both receptacles
- 2-Year limited warranty
Dimensions
Weight: 0.3 lbs
Technical Specifications
Lightcloud
Lightcloud Blue
Lightcloud Blue is a Bluetooth® Mesh lighting control system designed for fast setup and flexibility. Install quickly with no gateways, hubs, or additional control wiring. Start with a single device and easily scale to control entire buildings.
Learn more at rablighting.com/lcb.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at rablighting.com/lcb.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Gateway Required
No
Communication Protocol
Bluetooth Mesh
Range
Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.
Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners.
Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners.
Spacing Criteria
Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.
Performance
Product Type
Smart Outlet
Description
Smart, split-control outlets with one always-on and one app-controlled receptacle. Easily add scheduling, occupancy automation, and power monitoring while meeting code requirements—available in 15A and 20A.
Load Switching Capacity
1800W
Amperage
15A
Lifespan
15,000 Hours
Electrical
Input Voltage
125V
Operating Frequency
60 Hz
Input Current @ 120V
15A
Installation
Terminal Wire
14 AWG
Mounting
Requires a U.S. wallbox with 2-inch depth (recommended) and a minimum depth of 1.46 inches. For use in single or multi-gang applications.
Construction
Shape
Rectangle
Finish
Matte White
Enclosure Material
Polycarbonate, Copper, Iron
Compliance
Listings
UL Listed
Environment
Suitable for use indoors in dry and damp environments.
DLC NLC Listed
This system is on the Design Lights Consortium (DLC) Network Lighting Controls (NLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Certification Model Number
OUTLET15/LCB
California Energy Commission (CEC) Status
Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
2-Year Limited Warranty
The RAB 2-year limited warranty covers defects in materials under normal use and installation conditions. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
