P1L

Spec Sheet IES File LM79 Instructions Sell Sheet Folleto (Español) Family Spec Sheet Spec Sheet EZ Layout

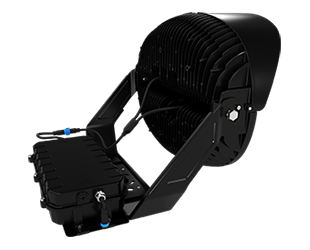

P1L

100,000-Hour LED lifespan

IP65 rating protects against dust and water

10-Year, Limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	850W
Color Temp	5700K
Lumens	113,849 lm
Efficacy	134.4
Color Accuracy	76 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	6.96A
208V	4.00A
240V	3.45A
277V	3.01A
Input Watts	847W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 56.7 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP65 for dust and water

Certification Model Number

PAR16-6-940-40D-DIM

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities.
DLC Product Code: S-PCL0MK

Electrical

Driver

Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 6.96A, 208V: 4.00A, 240V: 3.45A, 277V: 3.01A

Dimming Driver

Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.

THD

3.13% at 120V, 4.71% at 277V

Power Factor

99.9% at 120V, 97.7% at 277V

Surge Protection

10 kV

Aux Power Supply

Yes

Dim to Off

Yes

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Wattage Equivalency

3000W Metal Halide

Construction

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use in up to 122°F (50°C)

Housing

Precision die-cast aluminum

Lens

Polycarbonate lens

Tilt Increment

Continuous tilting with 5° increments

Effective Projected Area (With Shield)

0°: 1.67
15°: 1.7642
25°: 1.8914
45°: 2.2483
60°: 2.4786
75°: 2.6644
90°: 2.774

Gaskets

High-temperature silicone

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

Trunnion mount with stainless steel hardware

Optical

NEMA Type

NEMA Beam Spread 4H x 4V

Other

10-Year Limited Warranty

The RAB 10-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
