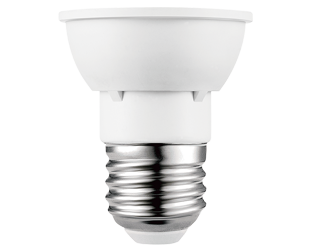

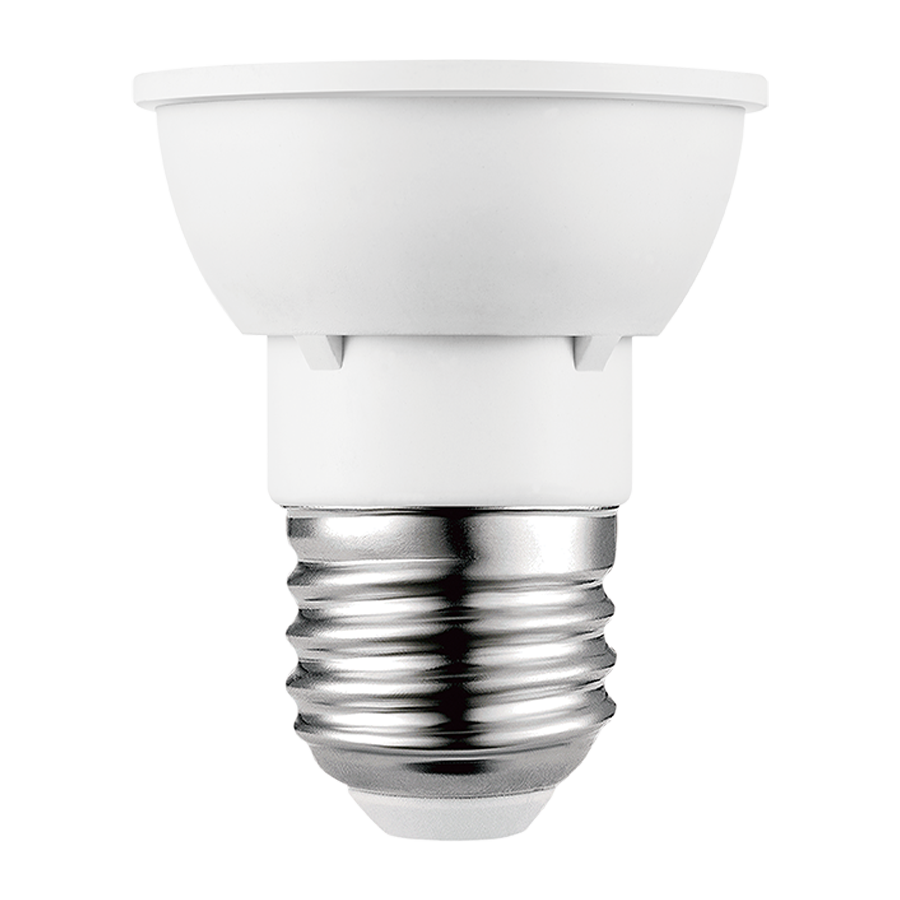

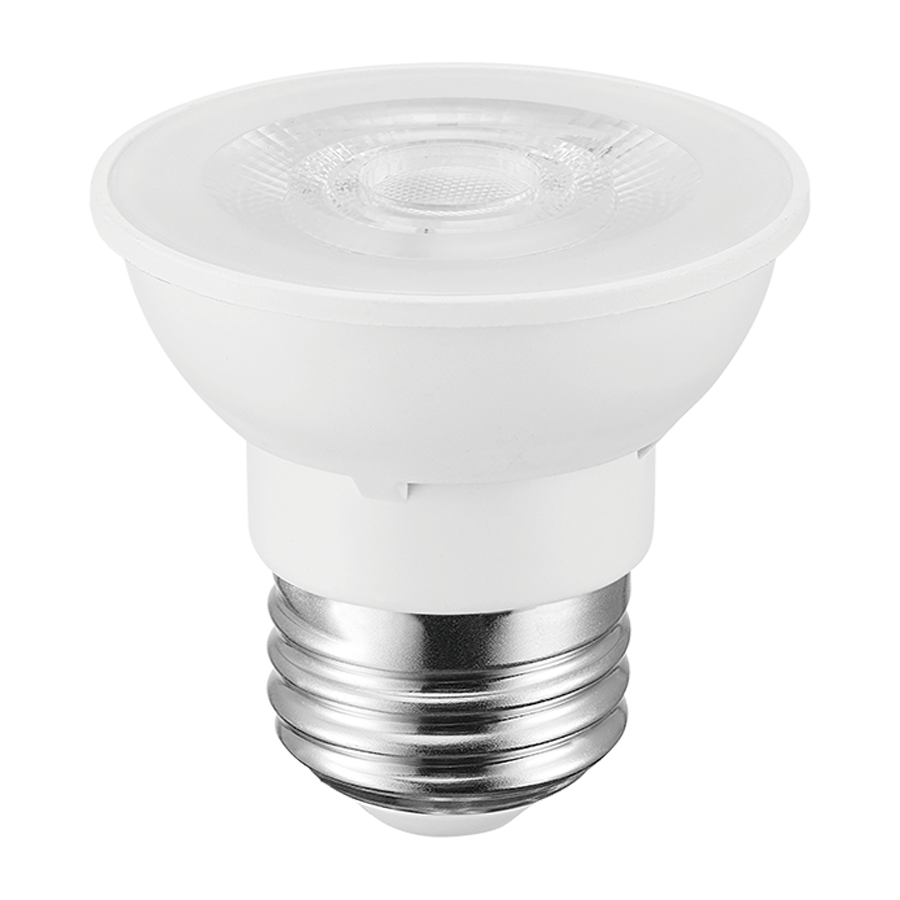

PAR16-6-927-40D-DIM

Spec Sheet IES File Family Spec Sheet Spec Sheet EZ Layout

PAR16-6-927-40D-DIM

Produces rich and vibrant colors >90CRI

Energy efficient replacement for incandescent and halogen Small diameter reflectors

Single optic and full face lens for precise beam angle control

Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs

Title 20 Compliant, ENERGY STAR Compliant, UL Listed

View Technical Specs

View Price & Availability

Performance

Watts	6W
Color Temp	2700K
Lumens	500 lm
Efficacy	83
Color Accuracy	90 CRI
L70 Lifespan	15,000 Hours

Input Voltage	N/A
Power Factor	N/A
Flicker	N/A
THDi	N/A

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.1 lbs

Technical Specifications

Performance

Product Type

Small Reflectors, 90CRI Dimmable

Wattage Equivalency

50W Halogen

Input Wattage

Lumens (Nominal)

500lm

Efficacy

83lm/W

L70 Lifespan

15,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current 120V 50/60 Hz; 120V: 54mA

THD

<55%

Power Factor

0.7

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

120V

Flicker

<30%

Construction

Operating Temperature Range

-4°F - 104°F (-20°C - 40°C)

Shape

PAR16

Finish

White

Enclosure Material

Polycarbonate

Lens Finish

Frosted

LED Characteristics

Beam Angle

40°

Color Temperature

2700K

Color Accuracy (CRI)

≥90

R9 Value

High color performance with R9 greater than 0

Color Consistency

<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Installation

Base Type

E26 Edison

Compliance

ETL Listed

This product has been tested by Intertek and found in compliance with accepted national standards.

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

Fixture Rating

Suitable for use in enclosed fixtures

Energy Star Approved

DLC Listed

Certification Model Number

PAR16-6-927-40D-DIM

California Title 20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
