PAR30L-11-940-35D-DIM

Spec Sheet Compatibility List Photometrics Report FCC Caution Spec Sheet

Produces rich and vibrant colors >90CRI

Energy efficient replacement for incandescent and halogen PAR lamps

Constructed from durable materials which lowers risk of breakage

Rated for use in enclosed and open fixtures in dry and damp locations*

Single optic and full face lens for precise beam angle control

Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs

Title 20 Compliant, UL Listed

Dimmable down to 10% (check dimmer compatibility list)

*PAR38 is wet rated

View Technical Specs

View Price & Availability

Performance

Watts	11W
Color Temp	4000K (Cool White)
Lumens	915 lm
Efficacy	83.2 lm/W
Color Accuracy	90 CRI
L70 Lifespan	25,000 Hours

Input Voltage	120V
Power Factor	0.9
Flicker	<30%
THDi	N/A
R9	50

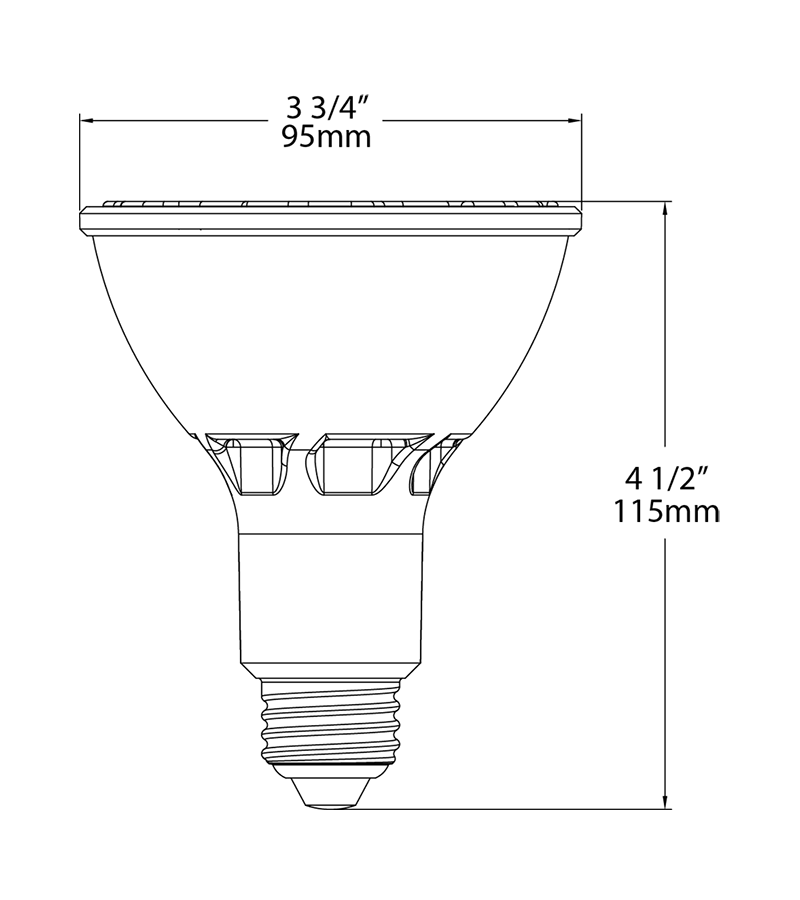

Dimensions

Weight: 0.4 lbs

Technical Specifications

Performance

Product Type

PAR

Input Wattage

11W

Lumens

900lm

Efficacy

82lm/W

L70 Lifespan

25,000-Hour LED lifespan based on IES LM-70 results

Wattage Equivalency

75W

LED Characteristics

Color Accuracy (CRI)

90 CRI

Color Temperature

4000K

Electrical

Power Factor

>0.9

Dimmable

Yes, down to 10%

Input Voltage

120V

Operating Temperature

-20°C to 40°C

Construction

Bulb Shape

PAR30L

Enclosure Material

Plastic

Housing Finish

White

Base Type

E26 Edison

Optical

Beam Angle

35°

MBCP

1640

Other

Technology EQ

Halogen

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Compliance

UL Listed

Yes

Environment

Damp / Enclosed

T20 Compliant

Yes, Title 20 Tier 2

T24 JA8 Compliant

Complies with Title 24 Appendix JA8

Rohs

Mercury and UV free. RoHS-compliant components.

FCC
