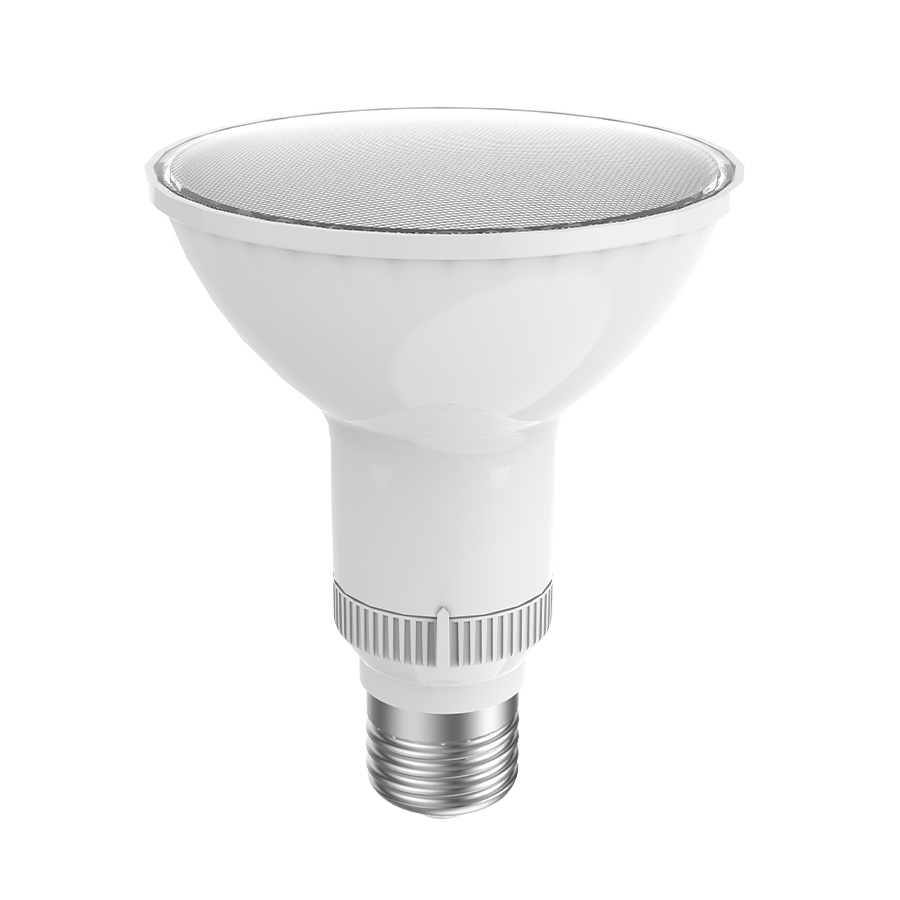

PAR30LFA-15-9CCT-40D-UNV

Spec Sheet Family Spec Sheet Spec Sheet

Adjustable CCT to choose from 2700/3000/3500/4000/5000K

Replacement for incandescent/halogen PAR Lamps

Rated for use in enclosed fixtures in dry, damp, or wet locations

90+CRI provides high quality color rendering. Title 20 and Title 24 Compliant

Range voltage 120-277V making them ideal for commercial applications

View Technical Specs

View Price & Availability

Performance

Watts	15W
Color Temp	2700/3000/3500/4000/5000K
Lumens	1,800 lm
Efficacy	120
Color Accuracy	90 CRI
L70 Lifespan	25,000 Hours

Type
120V
208V
240V
277V
Input Watts	15W

Dimensions

Weight: 0.3 lbs

Technical Specifications

Performance

Product Type

PAR

Description

Replacements for HID commercial PAR lamps. Dimmable CCT-adjustable lamps that are wet rated and great for use outdoors.

Wattage Equivalency

150W

Input Wattage

15W

Lumens

1,800lm

Efficacy

120lm/W

L70 Lifespan

25,000-Hour LED lifespan based on IES LM-70 results (lamps only)

Electrical

Power Factor

0.7

Dimmable

Input Voltage

120-277V AC

Operating Frequency

60 Hz

Input Current @ 120V (mA)

202mA

Operating Temperature

-4°F to 113°F (-20°C to 45°C)

LED Characteristics

Beam Angle

40°

Color Temperature

Field adjustable via dip switch 2700/3000/3500/4000/5000K

Color Accuracy (CRI)

90 CRI

R9 Value

High color performance with R9 no greater than 0

Color Consistency

<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Installation

Base Type

E26 Edison

Construction

Shape

PAR30-L

Finish

White

Endcap Material

Aluminum

Enclosure Material

Plastic+Aluminum

Lens Finish

Frosted

Lens Construction

Single optic and full face lens for precise beam angle control

Compliance

Listings

UL1993

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

Fixture Rating

Suitable for use in enclosed fixtures.
Suitable for use in open fixtures.

Certification Model Number

PAR30LFA-15-9CCT-40D-UNV

California Title 20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
