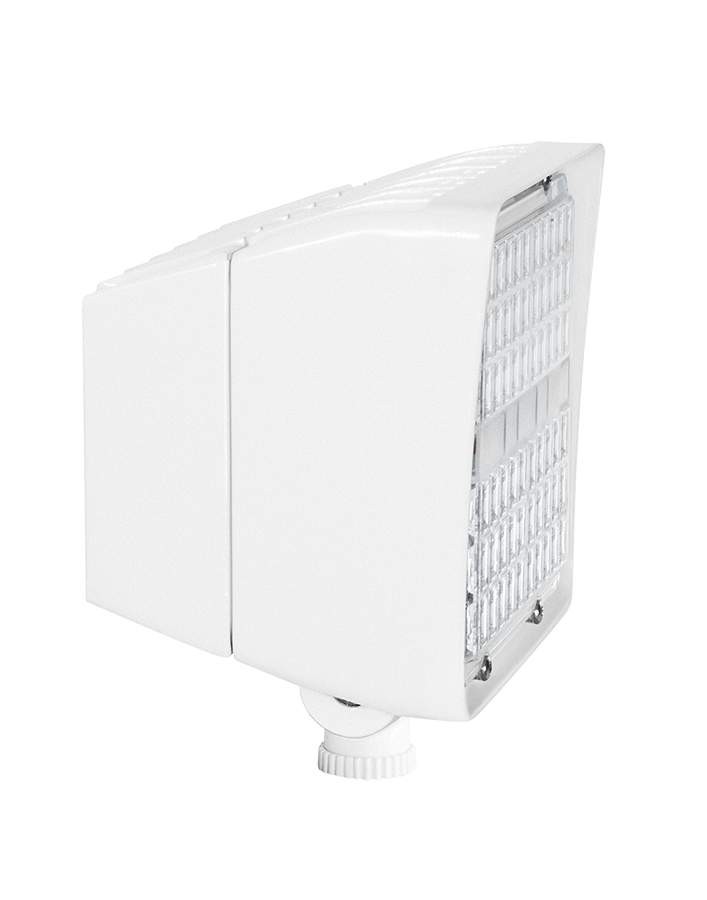

PIP45W/D10 USA
PIP45W/D10 USA large main
  • 0-10V Dimming, standard
  • Replaces 150W MH
  • 60,000-Hour LED lifespan
  • 5-Year, limited warranty
 View Technical Specs
View Price & Availability
Performance
Watts 45W
Color Temp
Lumens 6,387 lm
Efficacy 129.3 lm/W
Color Accuracy
L70 Lifespan
Type Constant Current
120V 0.42A
208V 0.26A
240V 0.22A
277V 0.19A
Input Watts 49.4W
Dimensions
Link to Dimension Drawing

Weight: 4.6 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for ground mounting.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Electrical
Driver
Constant Current, Class 2, 50/60 Hz, 2kV, 120 - 277VAC 120: 0.42A, 208V: 0.26A, 240V: 0.22A, 277V: 0.19A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
11.5% at 120V, 14.7% at 277V
Power Factor
99% at 120V, 94.2% at 277V
Surge Protection
+/- 1 kV line to line (differential mode)/ +/- 2 kV line to common mode ground (tested to secondary ground) on AC power port, +/- 0.5 kV for outdoor cables
