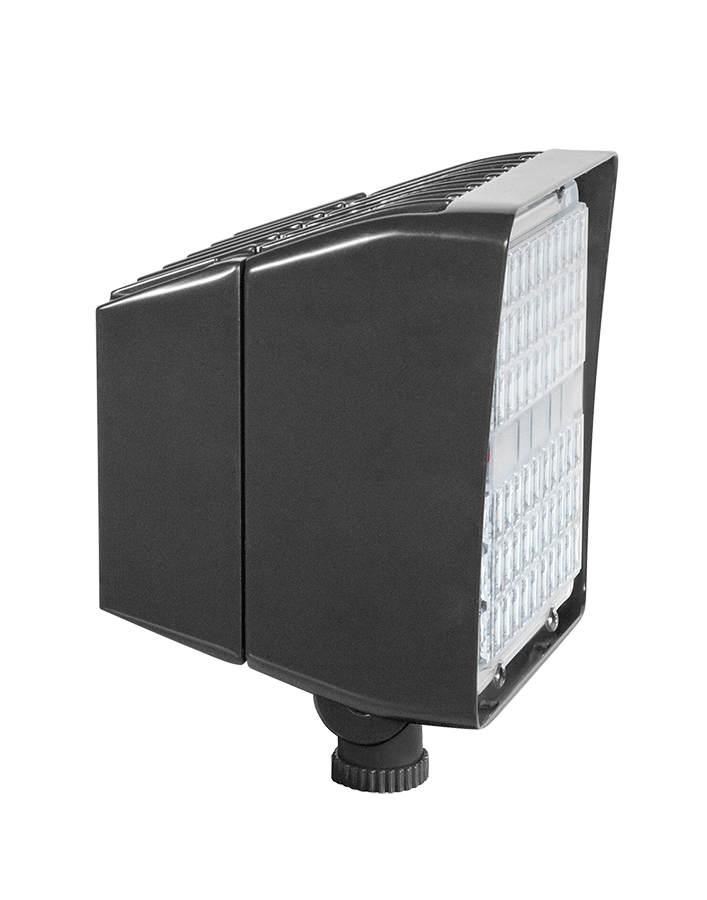

PIP45Y/D10/PCU

Spec Sheet IES File LM79 Instructions Spec Sheet EZ Layout

PIP45Y/D10/PCU

0-10V Dimming, standard

Replaces 150W MH

60,000-Hour LED lifespan

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	45W
Color Temp	3000K (Warm)
Lumens	6,621 lm
Efficacy	131.6 lm/W
Color Accuracy	72 CRI
L70 Lifespan	60,000 Hours

Type	Constant Current
120V	0.42A
208V	0.22A
240V	0.19A
277V	0.19A
Input Watts	50.3W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 4.6 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations. Suitable for ground mounting.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Electrical

Driver

Constant Current, Class 2, 50/60 Hz, 2kV, 120 - 277VAC, 120V: 0.42A, 208V: 0.22A, 240V: 0.19A, 277V: 0.19A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

2.82% at 120V, 6.67% at 277V

Power Factor

99.9% at 120V, 96.2% at 277V

Surge Protection

+/- 1 kV line to line (differential mode)/ +/- 2 kV line to common mode ground (tested to secondary ground) on AC power port, +/- 0.5 kV for outdoor cables
