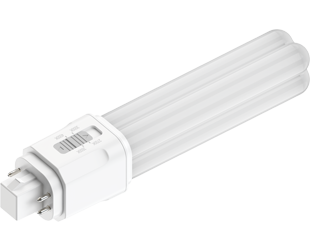

PLC-9-O-8FA-HYB-G24Q

4 color temperatures in 1 SKU (2700/3000/3500/4000K)

Omnidirectional light distribution, suitable for horizontal or vertical installations

Hybrid A/B; can also operate directly on most electroic ballasts, magnetic ballasts or wire to line voltage directly

Compatible with G24d / GX24d & G24q / GX24q installations

5-Year, No-Compromise Warranty

PLC Omnidirectional Lamps. 4-Pin & 2-Pin compact fluorescent replacements with CCT-Adjustability

View Technical Specs

View Price & Availability

Performance

Watts	9W
Color Temp	2700/3000/3500/4000K
Lumens	1050/1100/1200/1200 lm
Efficacy	99/100/106/106 143/1 lm/W
Color Accuracy	80 CRI
L70 Lifespan

Input Voltage	N/A
Power Factor	N/A
Flicker	N/A
THDi	N/A

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.2 lbs

Technical Specifications

Performance

Product Type

PLC Hybrid

Description

PLC & PLT Omnidirectional Lamps. 4-Pin & 2-Pin compact fluorescent replacements with CCT-Adjustability

Wattage Equivalency

26W CFL

Input Wattage

9.5W

Nominal Lumens

1050/1100/1200/1200

Efficacy

99/100/106/106/143/129.3/141.2/137

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current; 120-277V; 50/60 Hz 120V: 90mA, 208V: 48mA, 240V: 42mA, 277V: 36mA

THD

<20%

Power Factor

0.9

Dimmable

Yes, on Type A installation only,dependent on ballast

Input Voltage

120-277V

Operating Frequency

50/60Hz

Operating Temperature

-4°F to 113°F (-20°C to 45°C)

Flicker

Type A: Dependent on ballast
Type B: 50%

LED Characteristics

Beam Angle

360°

Color Temperature

Field adjustable via dip switch 2700/3000/3500/4000K

Color Accuracy (CRI)

>80 CRI

R9 Value

High color performance with R9 greater than 0

Color Consistency

<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Installation Method

UL Type A+B, Hybrid

Installation Orientation

Universal Installation

Base Type

G24q

Construction

Shape

PLC

Finish

White

Endcap Material

Copper

Enclosure Material

Polycarbonate

Lens Finish

Frosted

Compliance

Listings

UL Listed, UL Classified

Environment

Suitable for use indoors in dry and damp environments.

Fixture Rating

Suitable for use in enclosed fixtures.
Suitable for use in open fixtures.

Certification Model Number

T20101(PLC-9-O-8FA-HYB-G24Q)

California Title 20 Compliant

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Not Lawful for Sales in California

NSF Listed

Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
