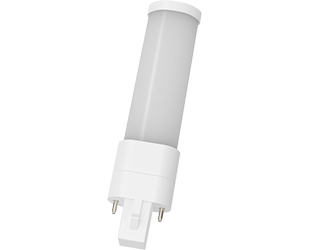

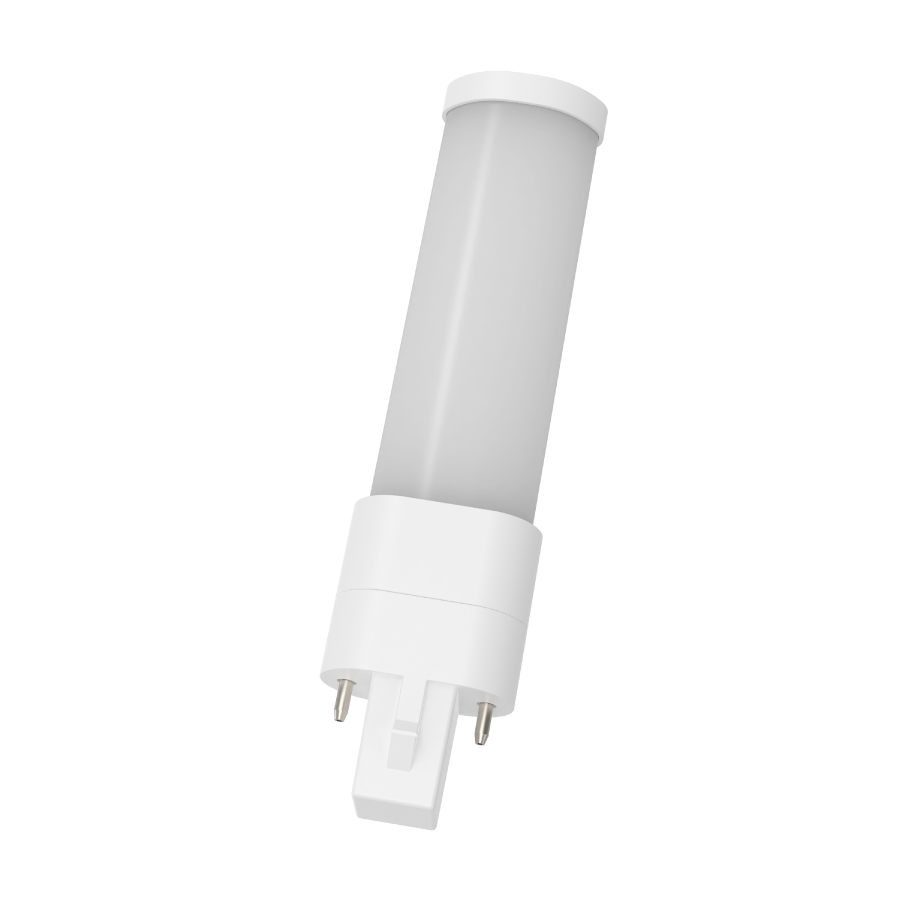

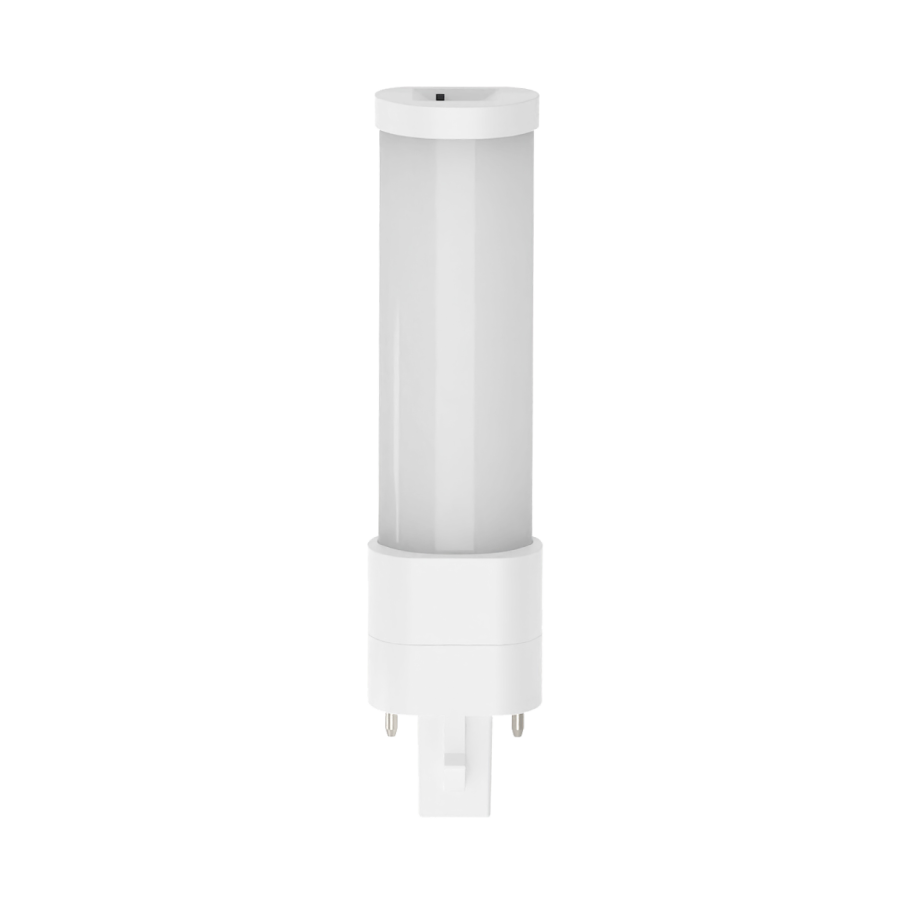

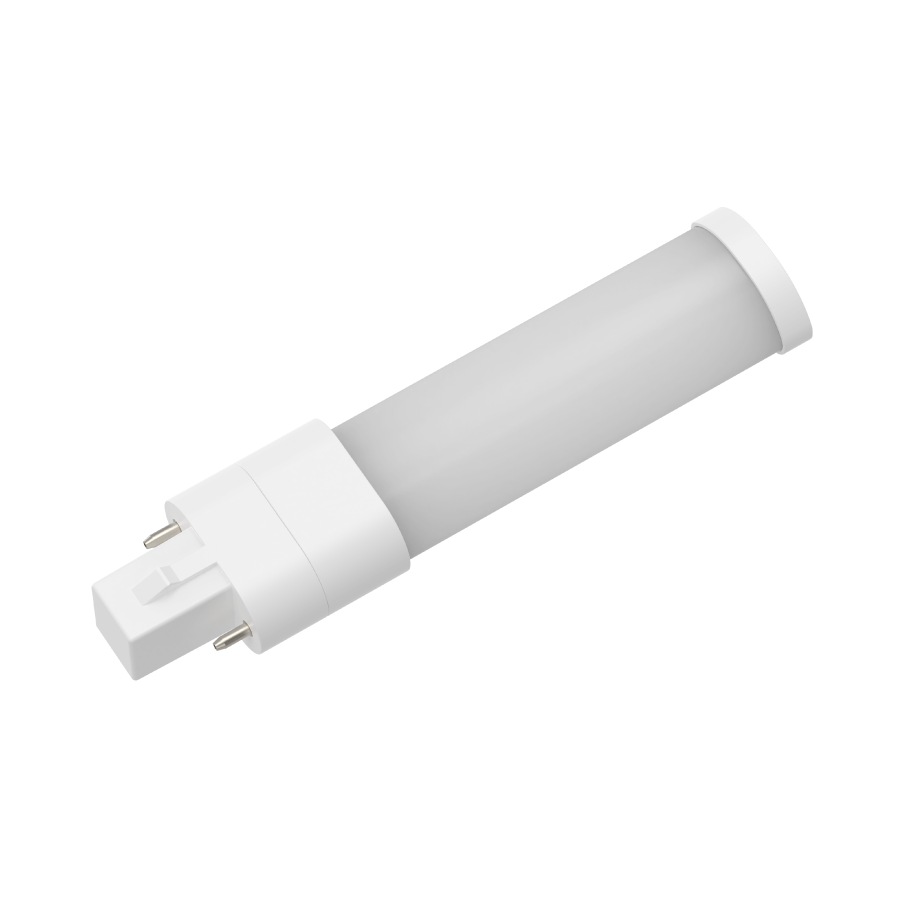

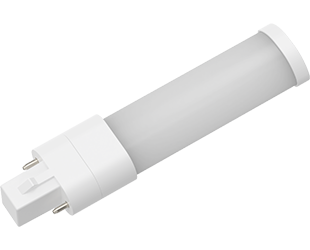

PLS-3.5-H-8FA-HYB-G23
PLS-3.5-H-8FA-HYB-G23
- 4 color temperatures in 1 SKU (2700/3000/3500/4000K)
- Bypass versions replace 7W-13W CFL lamps with 2G7 & 2GX7 bases
- Ballast Bypass-Install directly to line voltage
Frosted diffuser eliminates glare and pixelation
- 5-Year, No-Compromise Warranty
Performance
| Watts | 3W |
| Color Temp | 2700/3000/3500/4000K |
| Lumens | 360/370/380/400 lm |
| Efficacy | 113.7/114.6/127.0/12 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan |
| Input Voltage | N/A |
| Power Factor | N/A |
| Flicker | N/A |
| THDi | N/A |
Dimensions
Weight: 0.1 lbs
Technical Specifications
Performance
Product Type
PLS Hybrid
Description
PLS (Short) 2-Pin & 4-Pin compact fluorescent replacements with CCT-Adjustability
Wattage Equivalency
7-9W CFL
Input Wattage
3.5W
Nominal Lumens
360/370/380/400
Efficacy
113.7/114.6/127.0/123.8
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current; 120-277V; 50/60 Hz 120V: 30mA, 208V: 19mA, 240V: 16mA, 277V: 14mA
THD
<20%
Power Factor
0.9
Dimmable
No
Input Voltage
120-277V
Operating Frequency
50/60Hz
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
Flicker
50%
LED Characteristics
Beam Angle
120°
Color Temperature
Field adjustable via dip switch 2700/3000/3500/4000K
Color Accuracy (CRI)
>80 CRI
R9 Value
High color performance with R9 greater than 0
Color Consistency
<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Installation Method
UL Type A+B, Hybrid
Installation Orientation
Horizontal
Base Type
G23
Construction
Shape
PLS
Finish
White
Endcap Material
Copper
Enclosure Material
Polycarbonate
Lens Finish
Frosted
Compliance
Listings
UL Listed, UL Classified
Environment
Suitable for use indoors in dry and damp environments.
Fixture Rating
Suitable for use in enclosed fixtures.
Suitable for use in open fixtures.
Suitable for use in open fixtures.
Certification Model Number
T20099(PLS-3.5-H-8FA-HYB-G23)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Not Lawful for Sales in California
NSF Listed
Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
