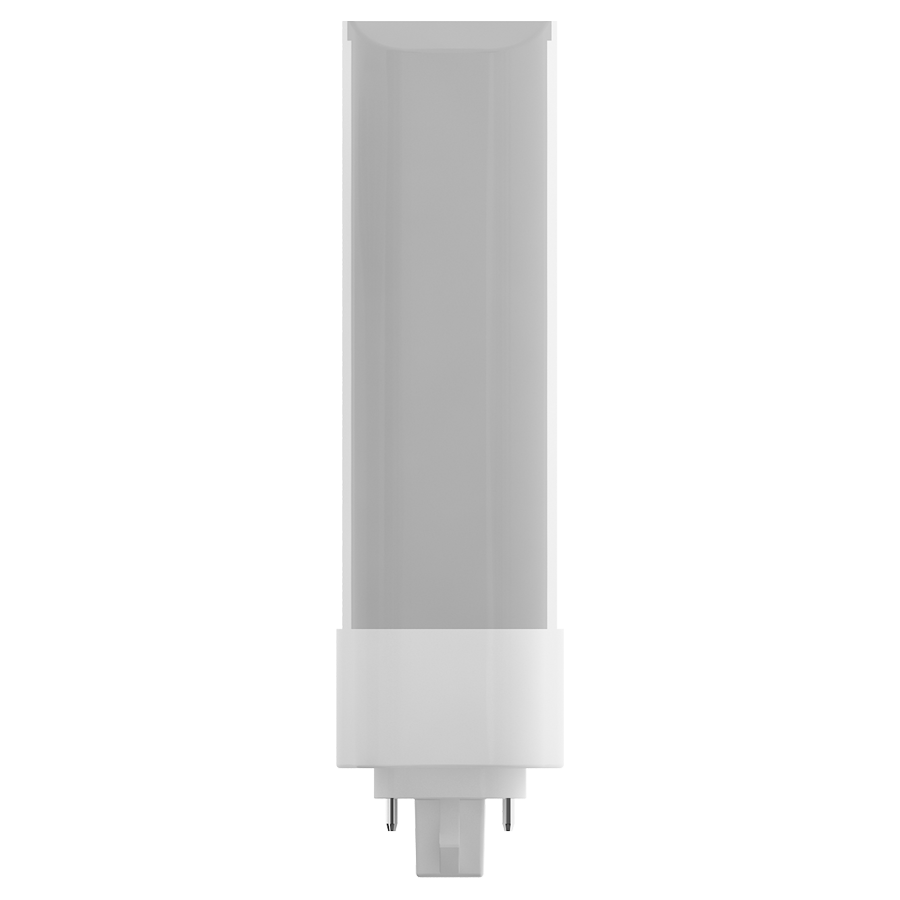

PLT-14.5-H-840-DIR
PLT-14.5-H-840-DIR
- Replaces 42W G24q Lamps
- Ballast Compatible. Directly Compatible with Most Existing CFL Ballasts.
- Compatible with G24q / GX24q (4-pin CFL) installations
- 50,000 hour Lifespan
- Environmentally friendly, no mercury used
- UL Listed, DLC Listed
- Rated for use in enclosed and open fixtures in dry or damp locations
- 5 Year No Compromise Warranty
Performance
| Watts | 14W |
| Color Temp | 4000K |
| Lumens | 1,950 lm |
| Efficacy | 134.5 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | Ballast Dependen |
| 208V | |
| 240V | |
| 277V | Ballast Dependen |
| Input Watts | 14.5W |
Dimensions
Weight: 0.6 lbs
Technical Specifications
Performance
Product Type
Compact
Input Wattage
14.5W
Lumens
1,950lm
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Wattage Equivalency
42W G24q & Gx24q
Electrical
THD
<20%
Power Factor
>0.9
Dimmable
Not suggested for dimming applications
Input Voltage
120-277V AC
Operating Frequency
Ballast Dependent
Operating Temperature
Ballast Dependent
LED Characteristics
Color Accuracy (CRI)
80
Color Temperature
4000K
Construction
Bulb Shape
PLT-Horizontal
Enclosure Material
Polycarbonate endcap with aluminum heatsink and glass envelop
Housing Finish
White
Lens Finish
Frosted
Installation
Base Type
4-Pin G24q
Installation Method
UL Type A, Plug and Play
Burning Position
Horizontal
Other
Technology EQ
CFL
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compliance
Listings
UL Listed
Environment
Damp / Enclosed
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Certification Model Number
T10216(PLT-14.5-H-840-DIR)
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PLPE5XZIC08T
DLC Product Code: PLPE5XZIC08T
