PLT-23-O-8FA-BYP

Spec Sheet IES File LM79 Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

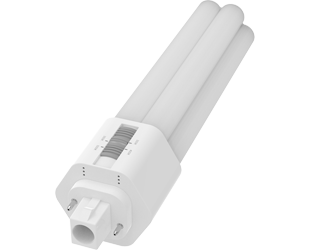

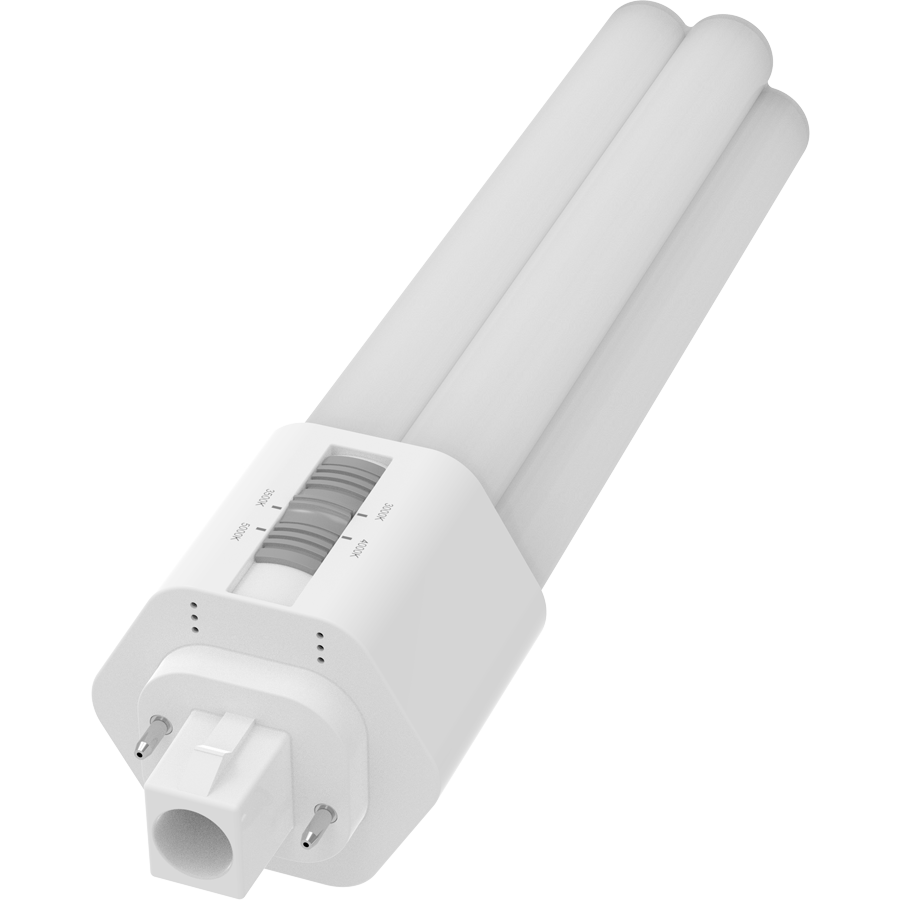

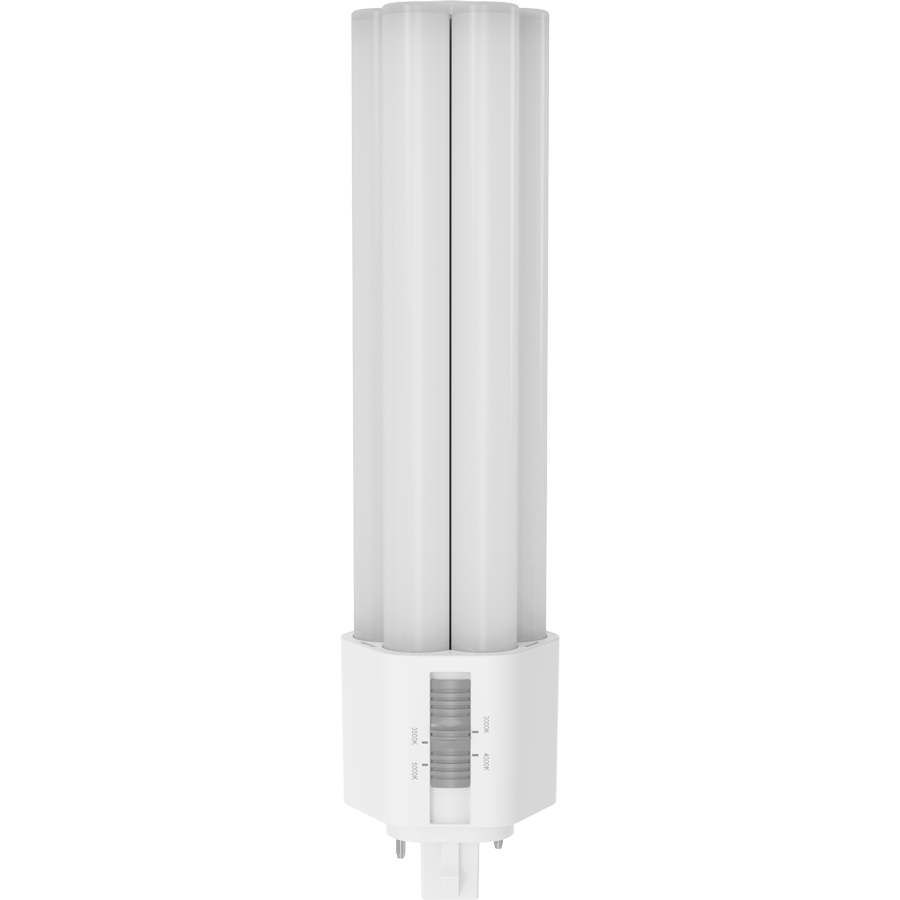

PLT-23-O-8FA-BYP

4 color temperatures in 1 SKU (3000/3500/4000/5000K)

Omnidirectional light distribution, suitable for horizontal or vertical installations

Compatible with G24d / GX24d & G24q / GX24q installations

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	23W
Color Temp	Default: 3000K<br><br> Field adjustable via dip switch 3000/3500/4000/5000K
Lumens	3000/3100/3300/3300 lm
Efficacy	130/135/140/140 lm/W
Color Accuracy	80 CRI
L70 Lifespan

Input Voltage	N/A
Power Factor	N/A
Flicker	N/A
THDi	N/A

EZ-Layout

Create Custom Lighting Layout

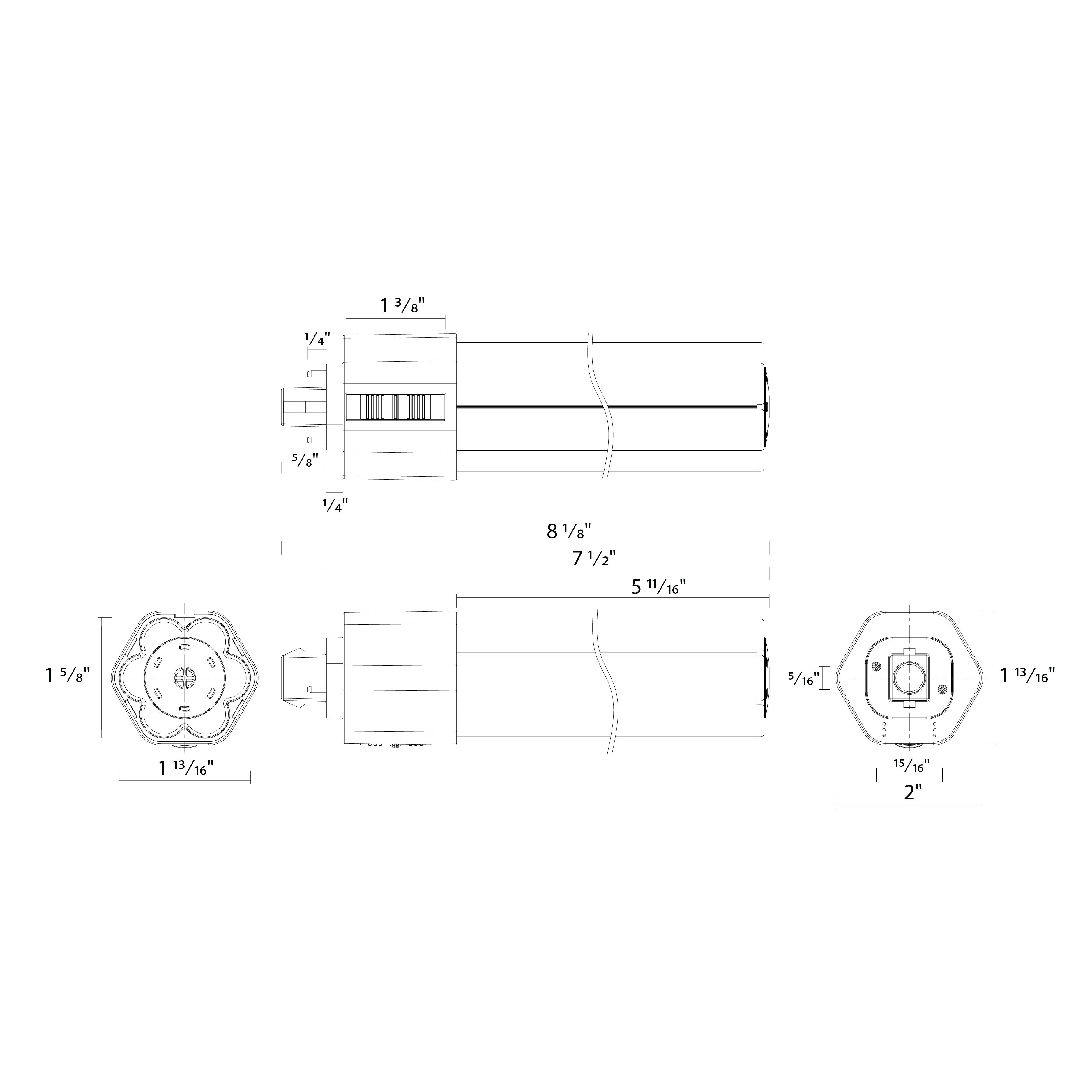

Dimensions

Weight: 0.6 lbs

Technical Specifications

Performance

Product Type

PLT Omnidirectional

Description

Omnidirectional, compact fluorescent replacements for 2-pin and 4-pin applications

Wattage Equivalency

57W CFL

Input Wattage

23W

Lumens (Nominal)

3,000/3,100/3,300/3,300lm

Efficacy

130/135/140/140lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current 120-277V 50/60 Hz; 120V: 46mA; 208V: 111mA; 240V: 96mA; 277V: 83mA

THD

<20%

Power Factor

0.9

Dimmable

Operating Temperature

-4°F to 113°F(-20 to 45°C)

Flicker

50%

LED Characteristics

Beam Angle

360°

Color Temperature

Default: 3000K

Field adjustable via dip switch 3000/3500/4000/5000K

Color Accuracy (CRI)

>80 CRI

R9 Value

High color performance with R9 greater than 0

Color Consistency

<7-step (3500K/4000K) <5-step (3000K/5000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Base Type

GX24D 2-pin

Construction

Shape

PLT

Finish

White

Enclosure Material

Constructed from frosted, shatter-resistant polycarbonate

Compliance

Listings

UL Lsted, UL Recognized, UL Classified

Environment

Suitable for use indoors in dry and damp environments.

Fixture Rating

Suitable for use in enclosed fixtures

Certification Model Number

T20140(PLT-23-O-8FA-BYP)

California Title 20 Compliant

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
