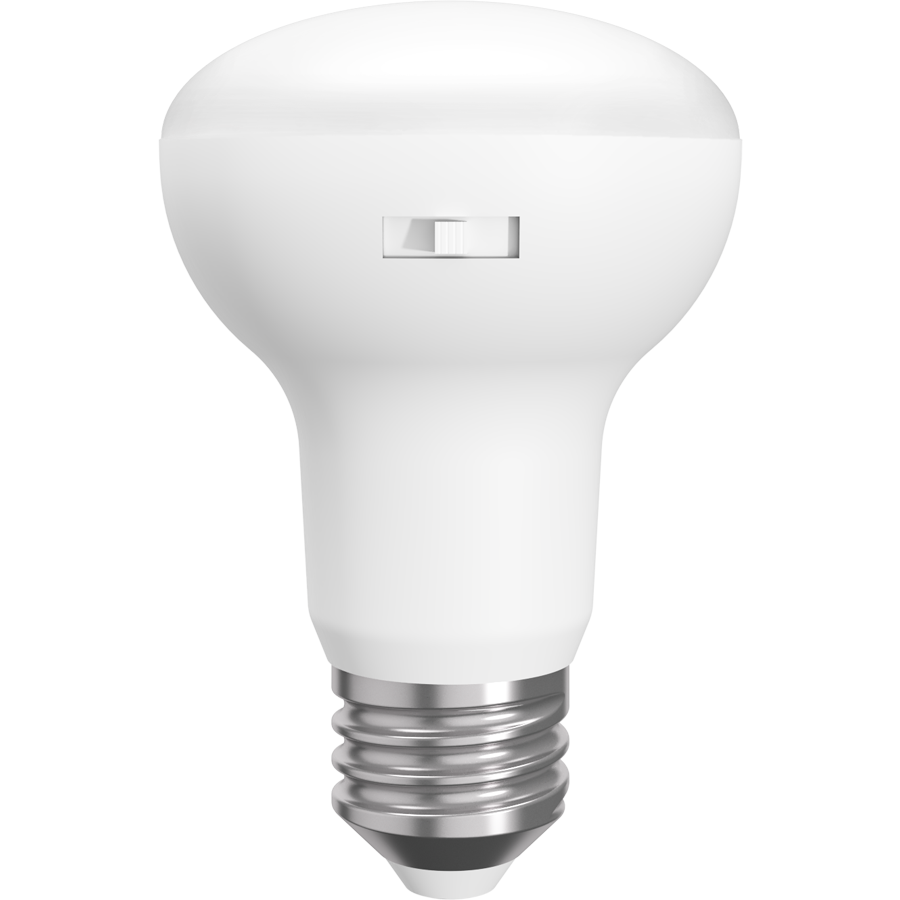

R20-6-9CCT-DIM

CCT- adjustable color temperature 2700/3000/3500/4000/5000K

Energy efficient replacement for incandescent and halogen lamps

Produces rich and vibrant colors >90CRI

Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs

Dimmable, see Dimmer Compatibility List

View Technical Specs

View Price & Availability

Performance

Watts	6W
Color Temp	2700/3000/3500/4000/5000K
Lumens	525 lm
Efficacy	88
Color Accuracy	90 CRI
L70 Lifespan	15,000 Hours

Input Voltage	120V
Power Factor	0.9
Flicker	<30%
THDi	N/A

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.1 lbs

Technical Specifications

Performance

Product Type

Reflector, CCT-Adjustable

Description

CCT-selectable lamps replace up to 150W conventional incandescent.

Wattage Equivalency

50W Halogen

Input Wattage

Lumens

525lm

Efficacy

88lm/W

L70 Lifespan

25,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current 120V 50/60 Hz; 120V: 63mA

THD

<75%

Power Factor

0.9

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

120V

Operating Temperature

-4°F to 113°F(-20 to 45°C)

Flicker

<30%

LED Characteristics

Beam Angle

120°

Color Temperature

Field adjustable via dip switch 2700/3000/3500/4000/5000K

Default: 3000K

Color Accuracy (CRI)

≥90

R9 Value

High color performance with R9 greater than 50

Color Consistency

<4-step (2700K/5000K); <7-step (3000/3500/4000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Installation

Base Type

E26 Edison

Construction

Shape

R20

Finish

White

Endcap Material

Nickel-plated aluminum

Enclosure Material

Constructed from frosted, shatter-resistant polycarbonate

Lens Finish

Frosted

Compliance

ETL Listed

This product has been tested by Intertek and found in compliance with accepted national standards.

Environment

Suitable for use indoors in dry and damp environments.

Fixture Rating

Suitable for use in enclosed fixtures

Energy Star Approved

DLC Listed

Certification Model Number

P30011(R20-6-9CCT-DIM)

California Title 20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
