R34X-6-B

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

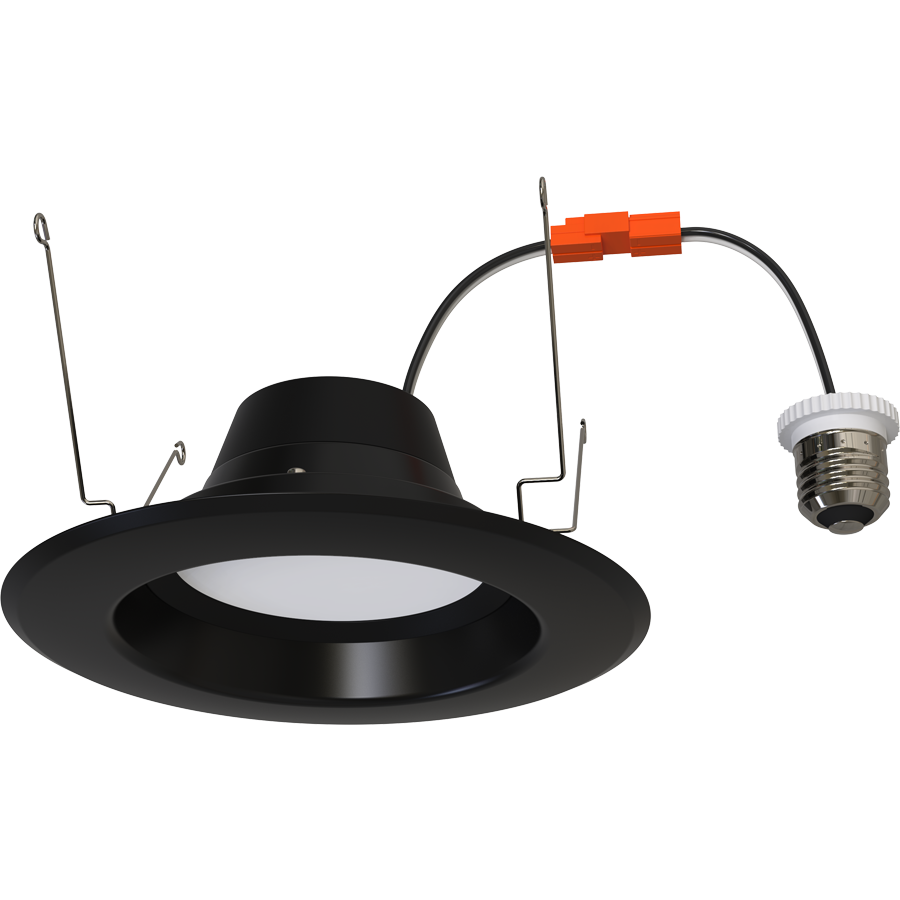

R34X-6-B

4" & 5/6" Recessed LED trims are compatible with most recessed housings

3 Selectable lumen outputs: 4" - 500/600/700 lumens, 6" - 750/1,050/1,300 lumens

5 Color temperature selectable 2700K, 3000K, 3500K, 4000K, & 5000K

Constructed from die-cast aluminum available in a smooth splay reflector or baffled trim with a smooth flat frosted polycarbonate lens

Available in Painted White or Black finish. Optional color trim overlays sold separately.

Dimmable down to 10% with compatible TRIAC/ELV dimmers, see dimmer compatibility list

5-year warranty, 50,000 hours lifespan, Title 24 JA8 and Title 20 compliant, wet location rated, Air Tight

View Technical Specs

View Price & Availability

Performance

Watts	14/11/7.5W
Color Temp	2700/3000/3500/4000/5000K
Lumens	1300/1050/750 lm
Efficacy	100
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.06A
208V
240V
277V
Input Watts	14/11/7.5W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.5 lbs

Technical Specifications

Performance

Product Type

LED Trim - Metal

Description

Available in 4" and 6" models with 3 power settings and 5 field-adjustable color temperatures. Offered with smooth or baffle trims. Ideal for applications with tighter budgets.

Wattage Equivalency

60W/75W/100W Incandescent

Input Wattage

14/11/7.5W

Lumens

1,300/1,050/750lm

Measured Lumens

7.5W
2700K: 767lm
3000K: 781lm
3500K: 792lm
4000K: 787lm
5000K: 773lm

11W
2700K: 1050lm
3000K: 1080lm
3500K: 1110lm
4000K: 1120lm
5000K: 1090lm

13W
2700K: 1300lm
3000K: 1330lm
3500K: 1360lm
4000K: 1370lm
5000K: 1340lm

Efficacy

100lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current

THD

≤20%

Power Factor

≥0.9

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

120V

Operating Frequency

60 Hz

Input Current @ 120V (mA)

130mA

Operating Temperature

-4°F to 104°F (-20 to 40°C)

Flicker

≤30%

LED Characteristics

Beam Angle

85°±10°

Color Temperature

Field-adjustable via dip switch 2700/3000/3500/4000/5000K

Color Accuracy (CRI)

90 CRI

R9 Value

High color performance with R9 greater than 50

Color Consistency

<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color (2700K/5000K)

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

Recessed with housing

Construction

Size

Shape

Round

Finish

Black

Material

Constructed from spun aluminum

Trim Style

Smooth Splay

Lens Finish

Frosted

Lens

Single optic and full-face lens for precise beam angle control

Compliance

Listings

UL Classified, UL Recognized

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IC Rated

Air Tight

Energy Star Approved

This product is ENERGY STAR® Certified.

Certification Model Number

DLR0173(R34X-6-B)

California Title 20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6

California Energy Commission (CEC) Status

Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Accessories

RFLED-GOOF-6R-8R-W
6"-8" Goof ring round white

DLTRIM/R6RS-BN
6" Color trim round smooth brushed nickel

DLTRIM/R6RS-BRZ
6" Color trim round smooth bronze

DLTRIM/R6RS-B
6" Color trim round smooth black

DLTRIM/R6RB-BN
6" Color trim round baffle brushed nickel

DLTRIM/R6RB-BRZ
6" Color trim round baffle bronze

DLTRIM/R6RB-B
6" Color trim round baffle black

RFLED-RETROBAND
6" Retrofit band

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
