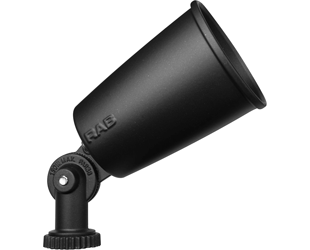

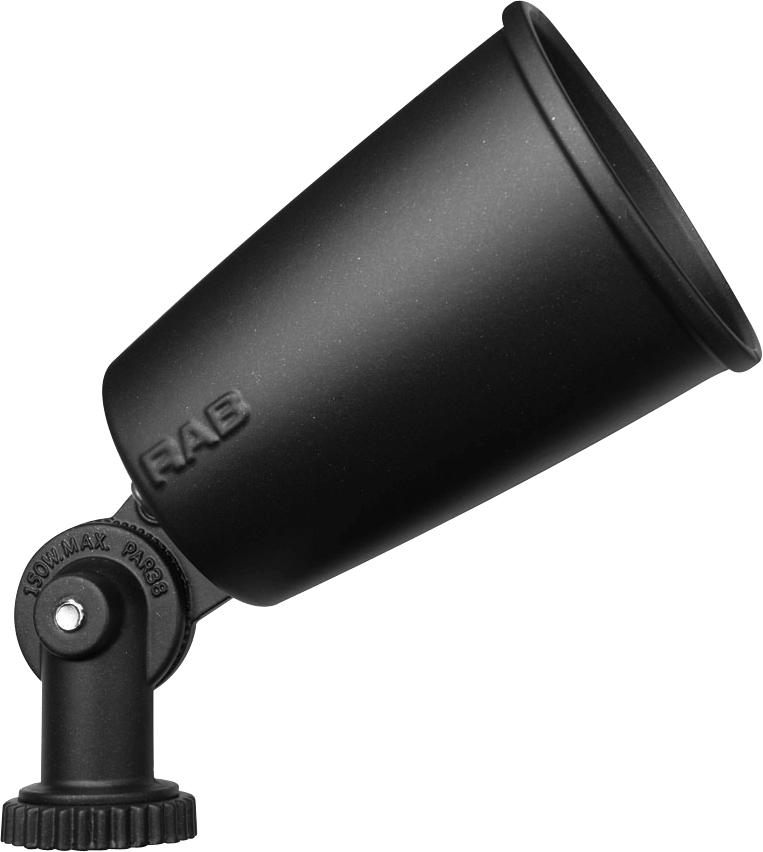

R90B
R90B large main
  • Molded, high temperature silicone gasket
  • EZ Grip locknut matches fixture finish and can be adjusted with fingers, pliers or a screwdriver
  • Rugged heavy sand die cast aluminum housing with durable powder coating
  • Sockets have all copper current carrying components
  • Fully adjustable swivel with sure-grip locks
  • Mounting arms have 1/2" threads
 View Technical Specs
View Price & Availability

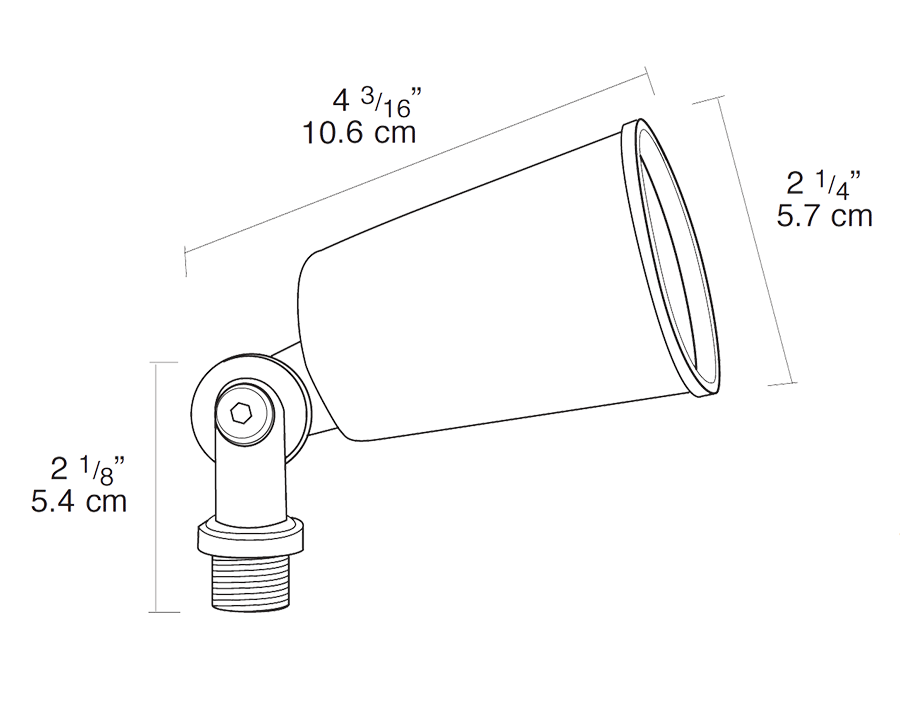

Dimensions
Link to Dimension Drawing

Weight: 0.4 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Electrical
Sockets
Porcelain with all copper current carrying components and spring loaded center contact
Construction
Swivels
Fully adjustable with sure-grip locknuts. 1/2" NPS threaded arm with locking swivel fits all standard mounting covers.
Housings
Precision die-cast aluminum. Tuffy flood is molded plastic.
Optical
Lamp
Medium base PAR38 lamps up to 150W. lamp not supplied.
