RAIL150W/480/D10/8C
RAIL150W/480/D10/8C large main
  • Ideal for large spaces
  • 100,000-hour lifespan - virtually maintenance free operation
  • 0-10V driver for variable dimming down to 10%
  • Low-glare design with semi-diffuse lens
 View Technical Specs
View Price & Availability
Performance
Watts 150W
Color Temp 5000K (Cool)
Lumens 17,924 lm
Efficacy 139.2 lm/W
Color Accuracy
L70 Lifespan 100,000 Hours
Type Constant Current
120V
208V
240V
277V
Input Watts 128.7W
Dimensions

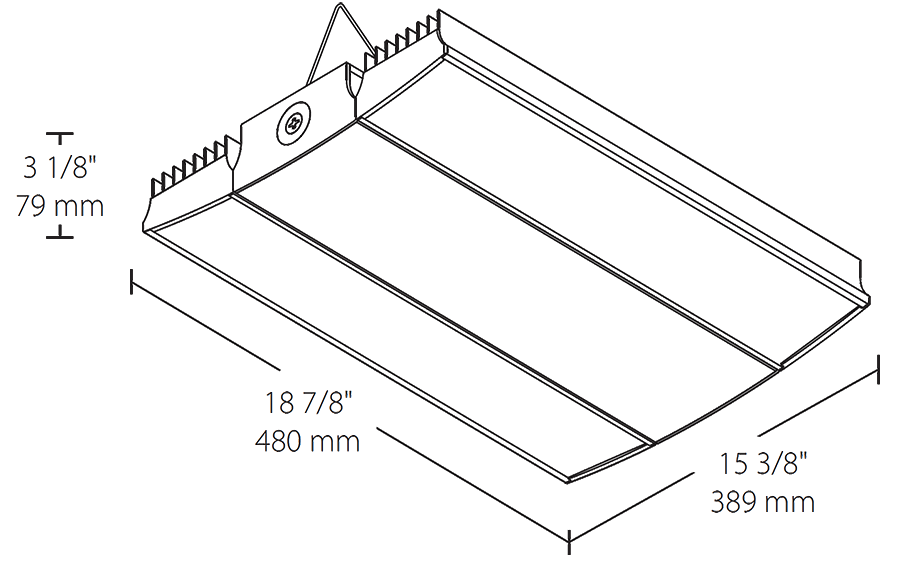

Link to Dimension Drawing

Weight: 15.6 lbs

Technical Specifications
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED Color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
(2) Dimmable 347-480V drivers programmed to 2450mA
THD
8.04% at 480V
Power Factor
97.2% at 480V
