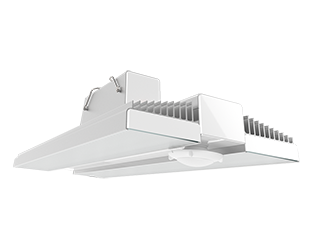

RAIL225/PIR/E

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

RAIL225/PIR/E

100,000-Hour LED lifespan

DLC Premium Listed

0-10V dimming, standard

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	225W
Color Temp	5000K (Cool)
Lumens	34,847 lm
Efficacy	143.4
Color Accuracy	83 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	1.71A
208V	1.00A
240V	0.86A
277V	0.74A
Input Watts	243W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 14.6 lbs

Technical Specifications

Compliance

UL Listed

Suitable for damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-9ID168

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 750W Metal Halide

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Consistency

3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED Color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Electrical

Driver

Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 1.71A, 208V: 1.00A, 240V: 0.86A, 277V 0.74A

THD

1.73% at 120V, 5.83% at 277V

Power Factor

99.9% at 120V, 96.1% at 277V

Surge Protection

6kV

Battery Backup

Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V.

Battery Backup Light Loss Factor

0.104

Construction

Cold Weather Starting

The minimum starting temperature is -20°C (-4°F)

Maximum Ambient Temperature

Suitable for use in up to 45°C (113°F)

Housing

Extruded aluminum

Lens

Polycarbonate lens

Reflector

Polyethylene Terephthalate (PET)

Installation

Mounting

V hooks (chain by others)

Sensor Settings

Maximum Mounting Height

40 ft

Voltage

12V DC (+3V-0V)

Dimming

0-10V dimming ouput, max 20mA sinking current

Operating Temperature

-20°C to 50°C (-4°F to 122°F)

Storage Temperature

-25°C - 70°C (-13°F - 158°F)

Operating Humidity

5% - 93% without condensation

IP Rating

IP20

Warm Up Time

45s +/-5s

Standby (w)

<0.3W

Module Interaction

Wire AWG 22 (Grey Dim -, Purple Dim +, Yellow 12V DC)

On-Time Adjustment

10s, 5min, 10min, 30min with +/-5% tolerance
(Factory Setting: 30min +/-5%)

Bi-Level

0, 10%, 30%, 50% with +/-5% tolerance
(Factory Setting: 10%)

Debounce Time

Day to Night: 5s
Night to Day: 30s

Open Circuit Protection

Short Circuit Protection

Yes

Remote Control Accessory

Adjust settings using remote control (catalog# WSREM). Only available with 0-10V dimming driver options. Remote control available here.

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
