RAILP150NW/D10/WS2 USA
RAILP150NW/D10/WS2 USA
- Ideal for large spaces
- Ultra-high efficacy
- Up to 60% less energy usage than equivalent metal halide fixtures
- 100,000-hour lifespan, virtually maintenance free operation
- 0-10V driver for variable dimming down to 10%
Performance
| Watts | 150W |
| Color Temp | |
| Lumens | 17,812 lm |
| Efficacy | 134.8 lm/W |
| Color Accuracy | |
| L70 Lifespan |
| Type | Constant Current |
| 120V | 1.12A |
| 208V | 0.70A |
| 240V | 0.60A |
| 277V | 0.51A |
| Input Watts | 132.1W |

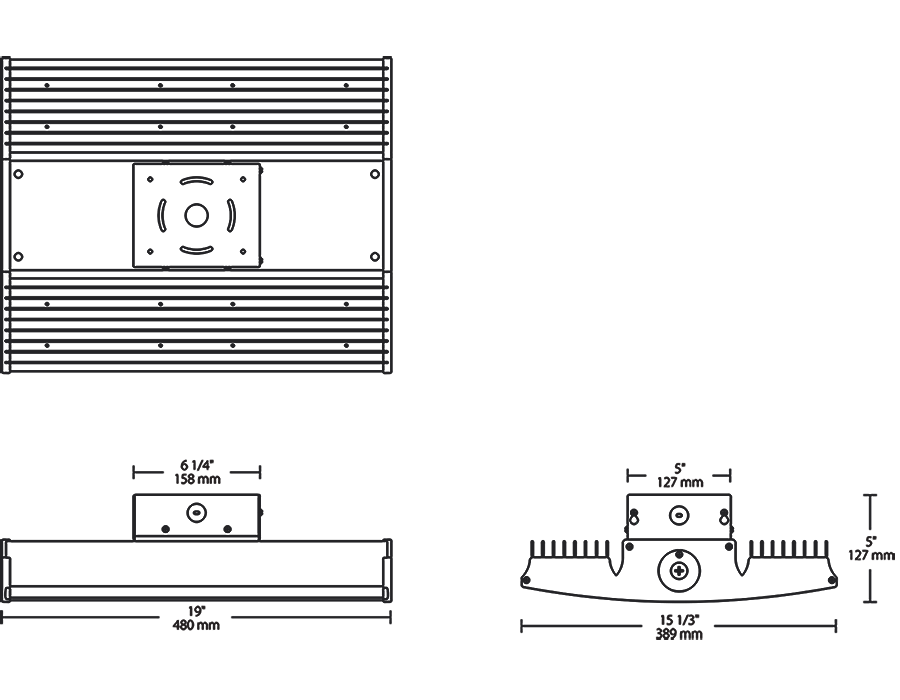

Dimensions
Weight: 20.7 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED Color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 1.12A, 208V: 0.70A, 240V: 0.60A, 277V 0.51A
THD
13.4% at 120V, 20.6% at 277V
Power Factor
98.7% at 120V, 91.5% at 277V
