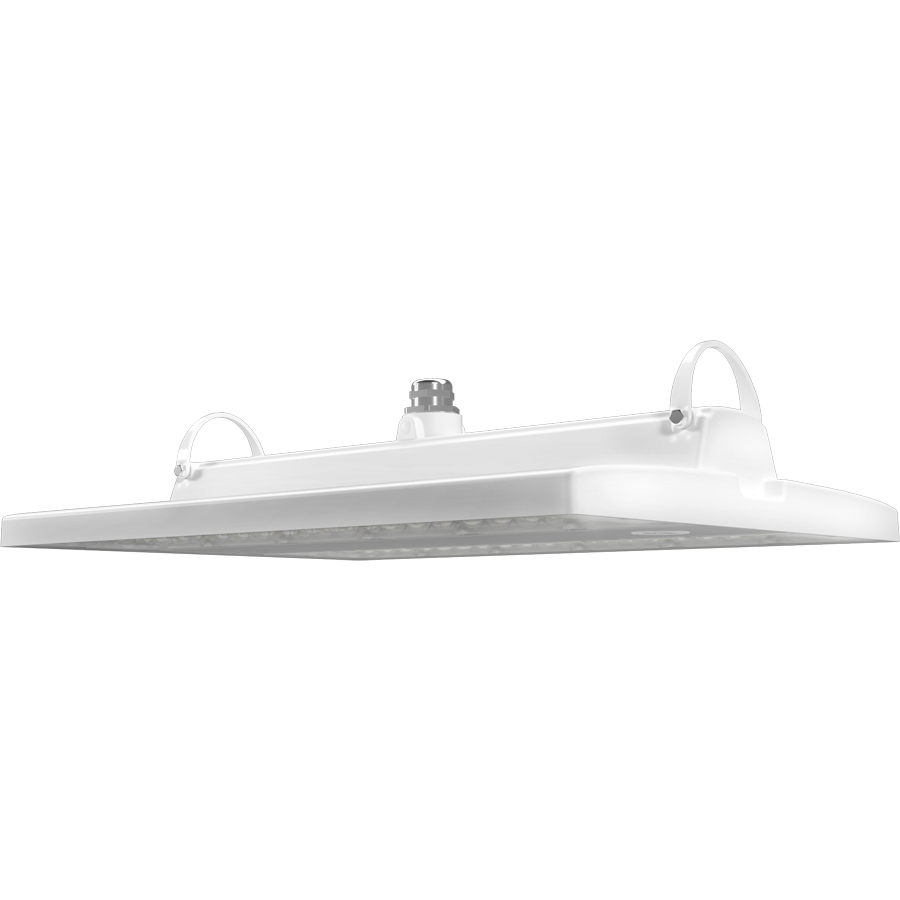

RBAY22S
RBAY22S
160W 3500/4000/5000K
- 100,000-Hour LED lifespan
- DLC Premium Listed
- 0-10V dimming, standard
- 5-Year, limited warranty
Performance
| Watts | 160/130/100W |
| Color Temp | 3500/4000/5000K |
| Lumens | 14,460-23,224 lm |
| Efficacy | 133.9-163.3 lm/W |
| Color Accuracy | 84-85 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 1.40A/1.20A/0.95A |
| 208V | 0.80A/0.70A/0.55A |
| 240V | 0.70A/0.60A/0.50A |
| 277V | 0.65A/0.55A/0.50A |
| Input Watts | 95-160.4W |

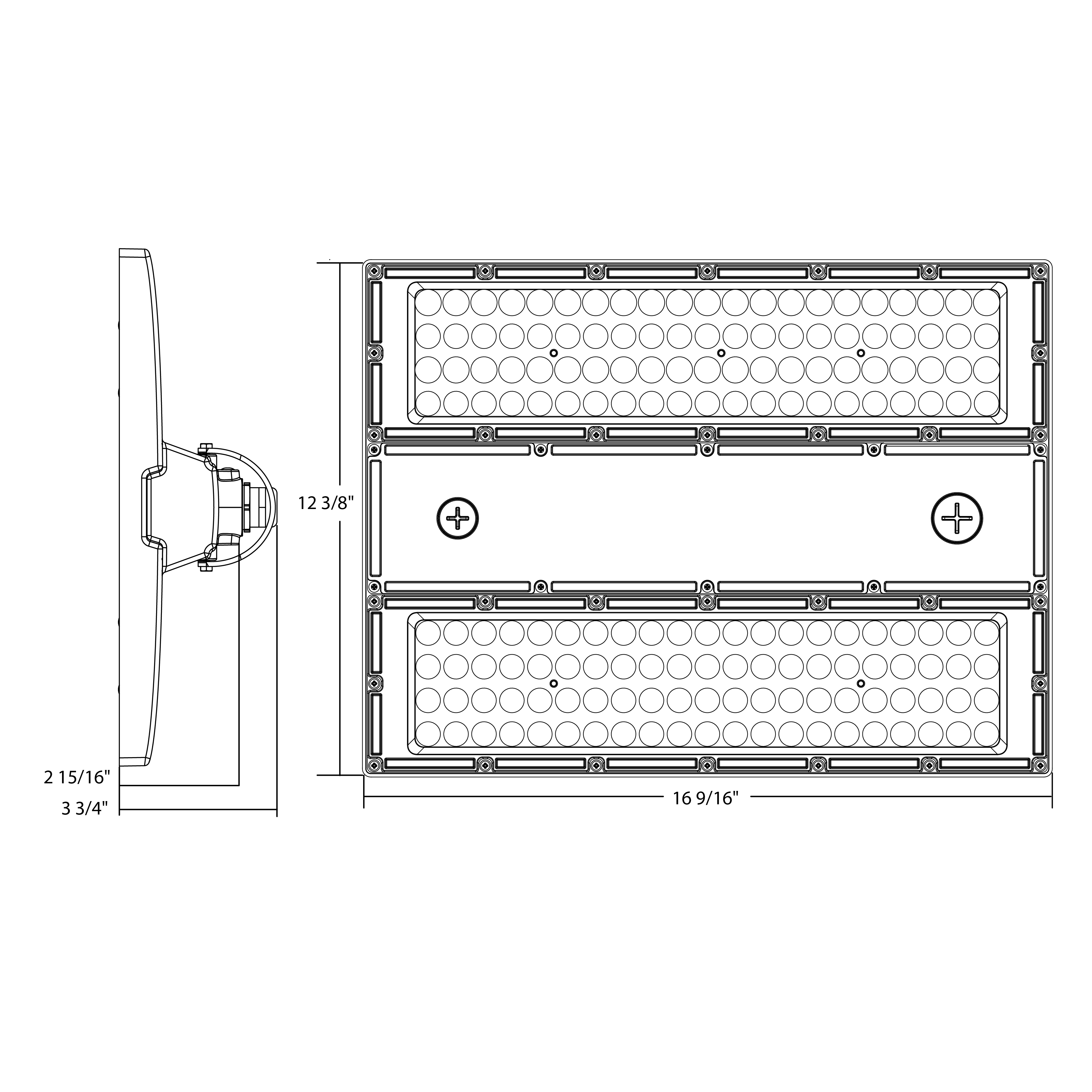

Dimensions
Weight: 8.8 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
160W/130W/100W (factory default 160W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
160W/130W/100W (factory default 160W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
Optical Field Adjustability
55°, 85°, and 105° (factory default 85°)
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP66 for dust and water
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-BKXYSB
DLC Product Code: S-BKXYSB
LED Characteristics
LEDs
Long-life, high-efficacy, discrete, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Electrical
Driver
Constant Current, Class 1, 120-277V, 50/60 Hz:
160W: 120V: 1.40A, 208V: 0.80A, 240V: 0.70A, 277V: 0.65A
130W: 120V: 1.20A, 208V: 0.70A, 240V: 0.60A, 277V: 0.55A
100W: 120V: 0.95A, 208V: 0.55A, 240V: 0.50A, 277V: 0.50A
160W: 120V: 1.40A, 208V: 0.80A, 240V: 0.70A, 277V: 0.65A
130W: 120V: 1.20A, 208V: 0.70A, 240V: 0.60A, 277V: 0.55A
100W: 120V: 0.95A, 208V: 0.55A, 240V: 0.50A, 277V: 0.50A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
4.93% at 120V, 7.92% at 277V
Power Factor
99.8% at 120V, 96.6% at 277V
Aux Power Supply
Yes
Dim to Off
Yes
Surge Protection
6kV + 6kV
Construction
Cold Weather Starting
The minimum starting temperature is -20°C (-4°F)
Maximum Ambient Temperature
Suitable for use in up to 50°C (122°F)
Lens
Polycarbonate lens
Housing
Die-cast aluminum
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Comes standard with V-hooks for chain mounting. Accessories available for pendant and surface mounting (purchased separately).
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
