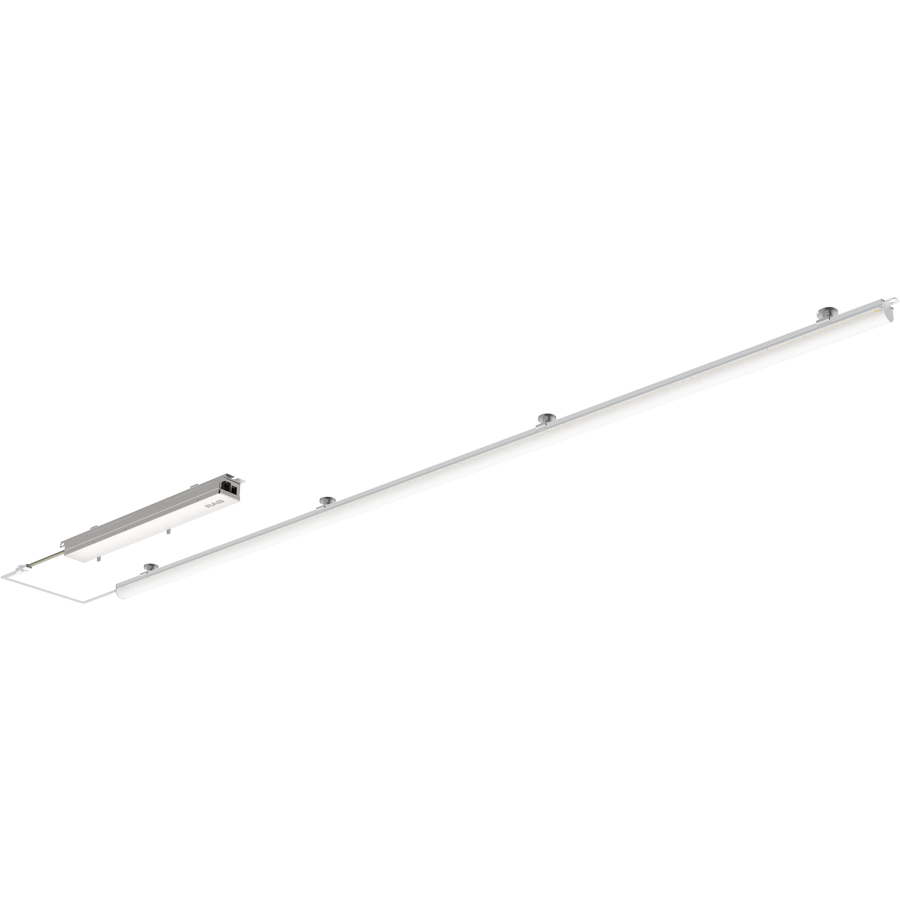

RLB-4F

30W 3000/3500/4000/5000/6500K

100,000-hour LED Life

0-10V dimming standard

DLC listed

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	30/25/20W
Color Temp	3000/3500/4000/5000/6500K
Lumens	2,540-3,953 lm
Efficacy	128-137.1 lm/W
Color Accuracy	84-87 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.28A
208V	0.16A
240V	0.14A
277V	0.12A
Input Watts	19.4-29.5W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 1.1 lbs

Technical Specifications

Compliance

UL Listed

Suitable for damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-Q4TPK7

Electrical

Driver

Constant Current, Class 2 , 120-277V, 50/60 Hz:
30W: 120V: 0.28A, 208V: 0.16A, 240V: 0.14A, 277V: 0.12A
25W: 120V: 0.23A, 208V: 0.13A, 240V: 0.12A, 277V: 0.10A
20W: 120V: 0.18A, 208V: 0.11A, 240V: 0.09A, 277V: 0.08A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

6.9% at 120V, 11.2% at 277V

Power Factor

99.83% at 120V, 99.73% at 277V

Aux Power Supply

Yes

Dim to Off

Yes

Surge Protection

L-N:1 kV, L/N-PG:2 kV

Construction

Cold Weather Starting

The minimum starting temperature is -20°C (-4°F)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

IC Rated

Suitable for direct contact with insulation

Lens

Frosted polycarbonate lens

Housing

Aluminum

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
