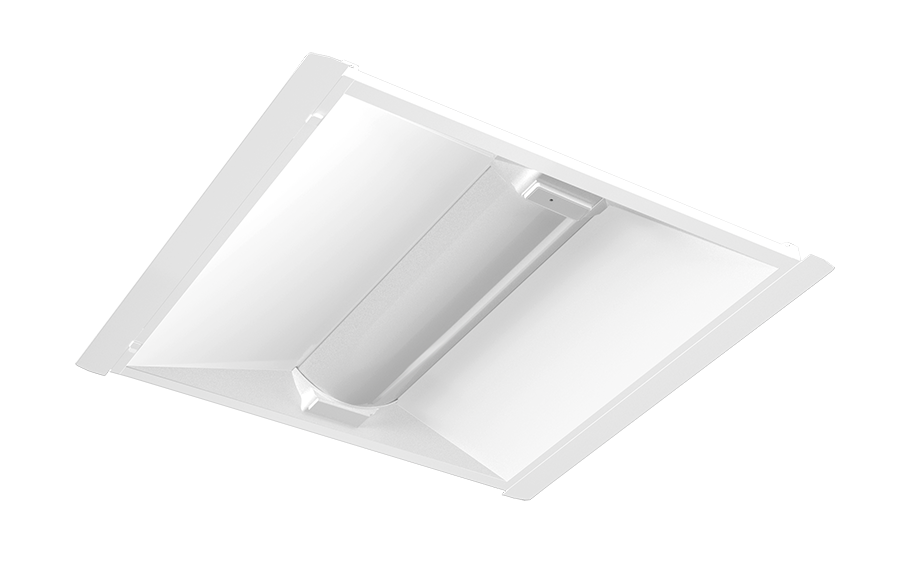

RTLED2X2/LCBS/MVS/E

Spec Sheet IES File Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

RTLED2X2/LCBS/MVS/E

30W 3500/4000/5000K

View Technical Specs

View Price & Availability

Performance

Watts	30/25/18W
Color Temp	3500/4000/5000K
Lumens	2,293-3,814 lm
Efficacy	125.69-138.1 lm/W
Color Accuracy	84-85 CRI
L70 Lifespan	100,000 Hours

Type	Constant
120V	0.25A/0.21A/0.15A
208V	0.15A/0.12A/0.09A
240V	0.13A/0.10A/0.08A
277V	0.11A/0.10A/0.07A
Input Watts	17-28.58W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 6.7 lbs

Technical Specifications

Compliance

UL Listed

Suitable for damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-R1IK8X

Electrical

Driver

30W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.25A, 208V: 0.15A, 240V: 0.13A, 277V: 0.11A

25W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.21A, 208V: 0.12A, 240V: 0.10A, 277V: 0.10A

18W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.15A, 208V: 0.09A, 240V: 0.08A, 277V: 0.07A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

3.41% at 120V, 4.37% at 277V

Power Factor

99.67% at 120V, 96.3% at 277V

Battery Backup

Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120.

Surge Protection

2.5kV

Construction

Housing

Steel sheet metal

Ambient Temperature

Suitable for use in up to 40°C (104°F)

Reflector

High-reflectance, powder-coated finish, optimized for uniform light distribution

Lens

Polycarbonate lens

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

Retrofits into the existing housing

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Sensor Settings

Detection Angle

About 30 to 150 degrees

Lightcloud

Lightcloud Blue Low Voltage Controller and Related Sensor Installed

Occupancy,Vacancy, and closed loop daylight harvesting in oneVersatile sensor. In addition control any fixture in your Lightcloud Blue integrated/embedded networked lighting luminaire-level control system. LLLC - capable of switching, 0-10V dimming, power/energy monitoring. Can also be used to extend the range of the Lightcloud Blue utilizing a "BLE Mesh" network communication protocols. The Lightcloud Blue sensor can be attached to the fixture provided an unobstructedView of the coverage area is available.
DLC system - N1XMLOEATBA
Learn more at www.lightcloud.com

Uncommissioned State Parameters

Motion Sensor Status: Enabled
Motion Sensitivity: high (100% range)
Brightness when triggered: 100%
Hold Time: 1 minute
Stand-By-Dim Level: 20%
Daylight Harvesting: Disabled

Commissioned State Parameters (Once paired to Lightcloud Blue App)

Motion Sensor Status: Disabled (can be enabled via app)
Motion Sensitivity: High (100% range, can be adjusted to medium and low)
Brightness when triggered: Last on status (can also be adjusted to certain dim level)
Hold Time: 20 minutes (can be adjusted from 1 minute to 240 minutes)
When Vacant: Off (can be adjusted to certain dim level)
Daylight Harvesting: Disabled (can be enabled to close-loop)

Technology

Microwave Sensor

Microwave Frequency

5.8GHz +/-7.5MHz

Maximum Mounting Height

13.1 ft

Maximum Detection Range

26.2 ft diameter at 13.1 ft height

Other

5 Yr Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
