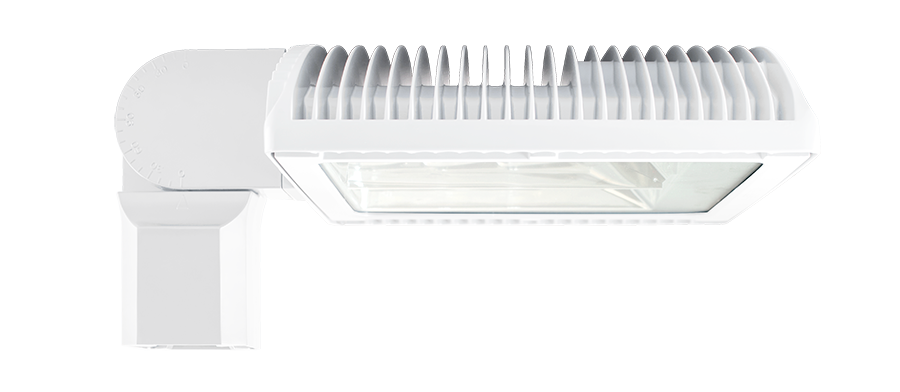

RWLED3T78W/BL
RWLED3T78W/BL
- Ideal for roadway, general parking and major roads
- 78W High-Performance LED
- Replaces 250W metal halide roadway fixtures
- 27 year lifespan dramatically reduces maintenance and re-lamping costs
- Precision optics deliver maximum downward street side lumens with uniformity and minimal glare
- Compatible with standard roadway arms
- Universal adaptors for 1", 1 1/4", 1 1/2" and 2" OD pipe included
- Industry-leading 5G vibration rating per ANSI C136.31
- Easy-access electrical compartment makes wiring fast and secure
- 10-Year, No-Compromise Warranty
Performance
| Watts | 78W |
| Color Temp | 5100K (Cool) |
| Lumens | 9,263 lm |
| Efficacy | 120.7 lm/W |
| Color Accuracy | 71 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.66A |
| 208V | 0.41A |
| 240V | 0.35A |
| 277V | 0.30A |
| Input Watts | 76.8W |
Dimensions
Weight: 32.5 lbs
Technical Specifications
Other
RWLED3T78 with Bi-Level Operation
Allows 33%-66%-100% output modes
Compliance
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
UL Listed
Suitable for wet locations as a downlight
IP Rating
Ingress protection rating of IP66 for dust and water
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Construction
Vibration Rating
Industry-leading 5G vibration rating per ANSI C136.31
Electrical
Drivers
Two Drivers Constant Current, Class 2, 1050mA, 100-277V, 50/60Hz, 0.6A, Power Factor 99%
THD
4.7% at 120V, 13.9% at 277V
Power Factor
99.5% at 120V, 93.7% at 277V
