SHARK4

Spec Sheet IES File LM79 Instructions Spec Sheet EZ Layout

SHARK4

50W 3500/4000/5000K

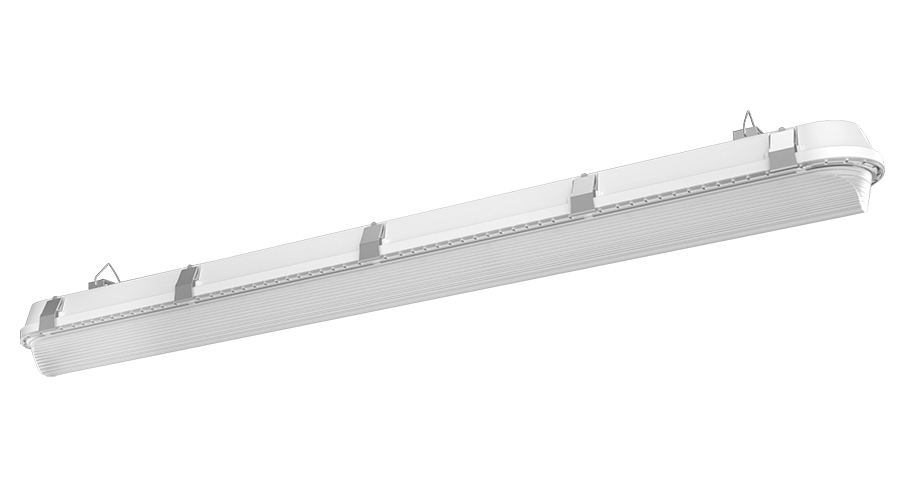

Impact-resistant linear washdown

Ideal for tunnels and stairwells

Mounting options: Chain, junction box, angled surface mount or vandal-resistant surface mount

IP66 Rating protects against dust & water ingress

5-Year, No-Compromise Warranty

100,000-Hour LED lifespan

View Technical Specs

View Price & Availability

Performance

Watts	50/40/30W
Color Temp	3500/4000/5000K
Lumens	4,489-7,323 lm
Efficacy	139.1-154.8 lm/W
Color Accuracy	84-86 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.42A/0.35A/0.26A
208V	0.24A/0.20A/0.15A
240V	0.21A/0.17A/0.13A
277V	0.19A/0.15A/0.12A
Input Watts	30.1-50.7W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Technical Specifications

Compliance

UL Listed

Suitable for wet locations

UL 746C

F1 weatherability rating for UV resistance, water exposure, and extreme temperature conditions.

NSF

NSF Certified by Public Health and Safety

NEMA Rating

4X, protected against corrosion

IP Rating

Ingress protection rating of IP66 for dust and water

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-ICZWTG (Direct Linear Ambient Luminaires)
DLC Product Code: S-QEWAXU (Stairwell and Passageway Luminaires)
DLC Product Code: S-V8PXFE (Low-Bay Luminaires for Commercial and Industrial Buildings)

Electrical

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

2.8% at 120V, 3.03% 277V

Power Factor

99.9% at 120V, 97.7% at 277V

Surge Protection

2.5kV

Construction

Housing

IK09 impact-resistant polycarbonate with 5VA flame rating*
1/2" openings for conduit and bushing/cord entry
*Polycarbonate is affected by cleaning agents or other liquids containing partial solvents such as low molecular weight aldehydes and ethers, ketones, esters, aromatic hydrocarbons and perchlorinated hydrocarbons. Click here for a detailed list of damaging chemicals.

Lens

Diffuse polycarbonate lens for low glare and maximum protection

Maximum Ambient Temperature

Suitable for use in up to 40°C (104°F)

Cold Weather Starting

The minimum starting temperature is -40°C (-40°F)

Green Technology

Mercury and UV free. RoHS-compliant components.

Finish

Formulated for high durability and long-lasting color

Installation

Mounting

Quick-mount, surface, stainless steel spring clips supplied. 4 additional mounting accessory kits available.

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Other

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
