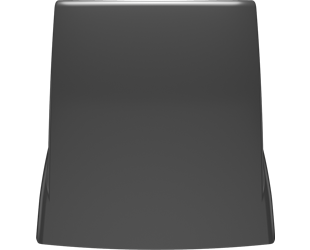

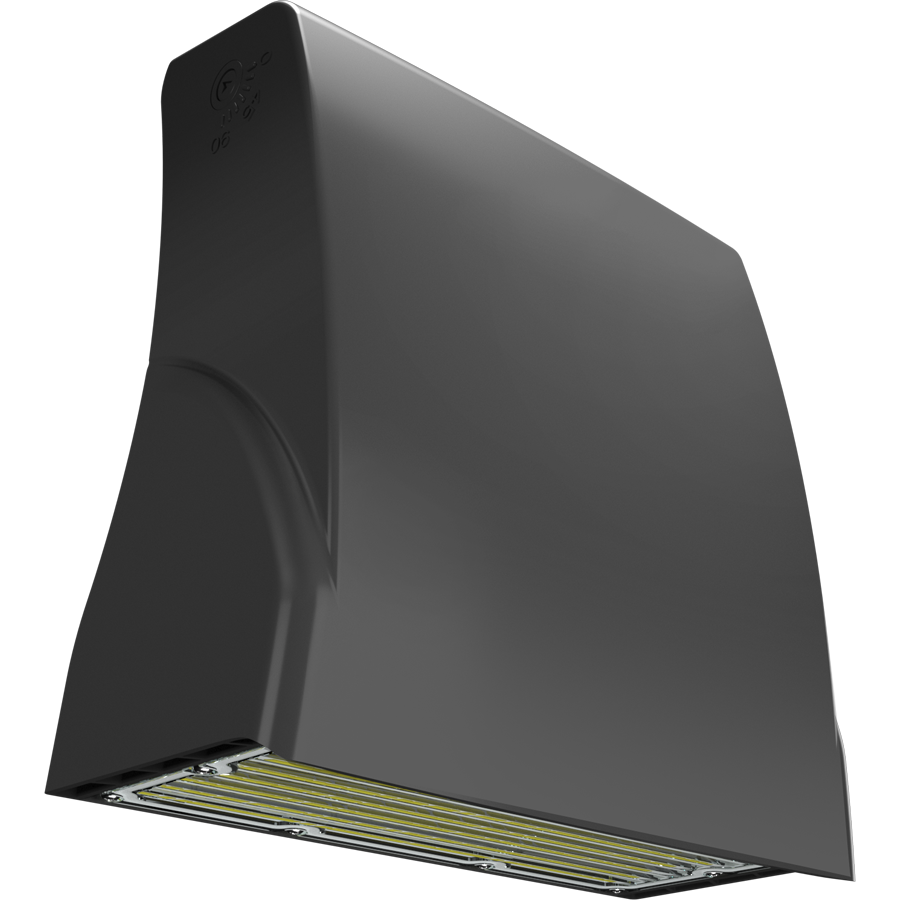

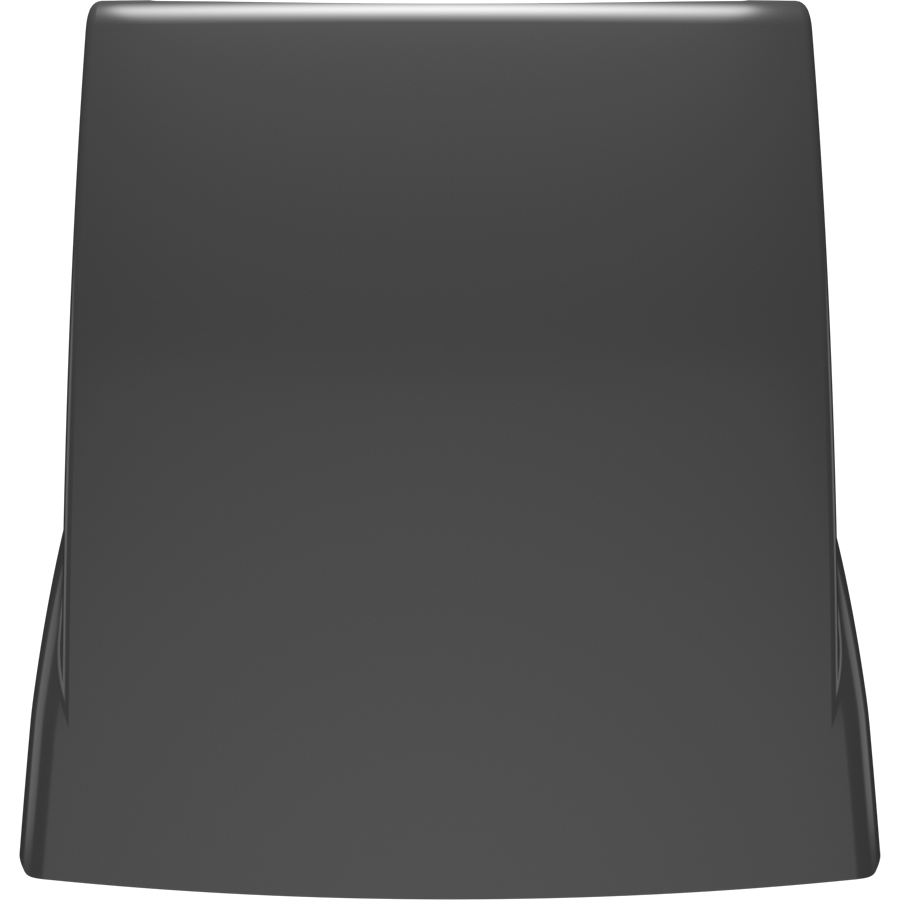

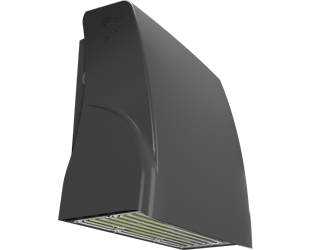

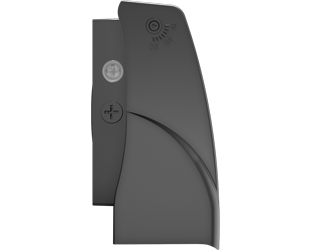

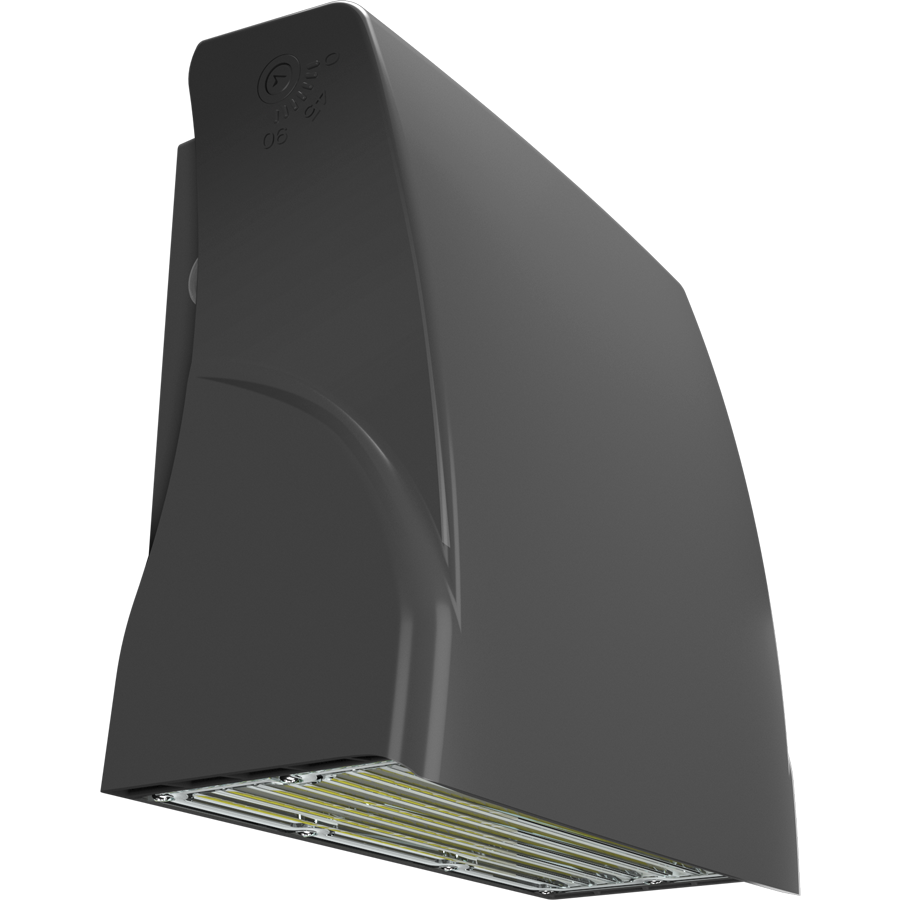

SLIM17FA80ADJ
SLIM17FA80ADJ
80W 3000K/4000K/5000K
- Selectable CCT
- Adjustable cutoff
- Integrated photocell
- 0-10V dimming, standard
Performance
| Watts | 80W |
| Color Temp | 3000K/4000K/5000K |
| Lumens | 11682-12364 lm |
| Efficacy | 144.9-158.3 lm/W |
| Color Accuracy | 82-85 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.68A |
| 208V | 0.39A |
| 240V | 0.34A |
| 277V | 0.29A |
| Input Watts | 78.1-80.6W |

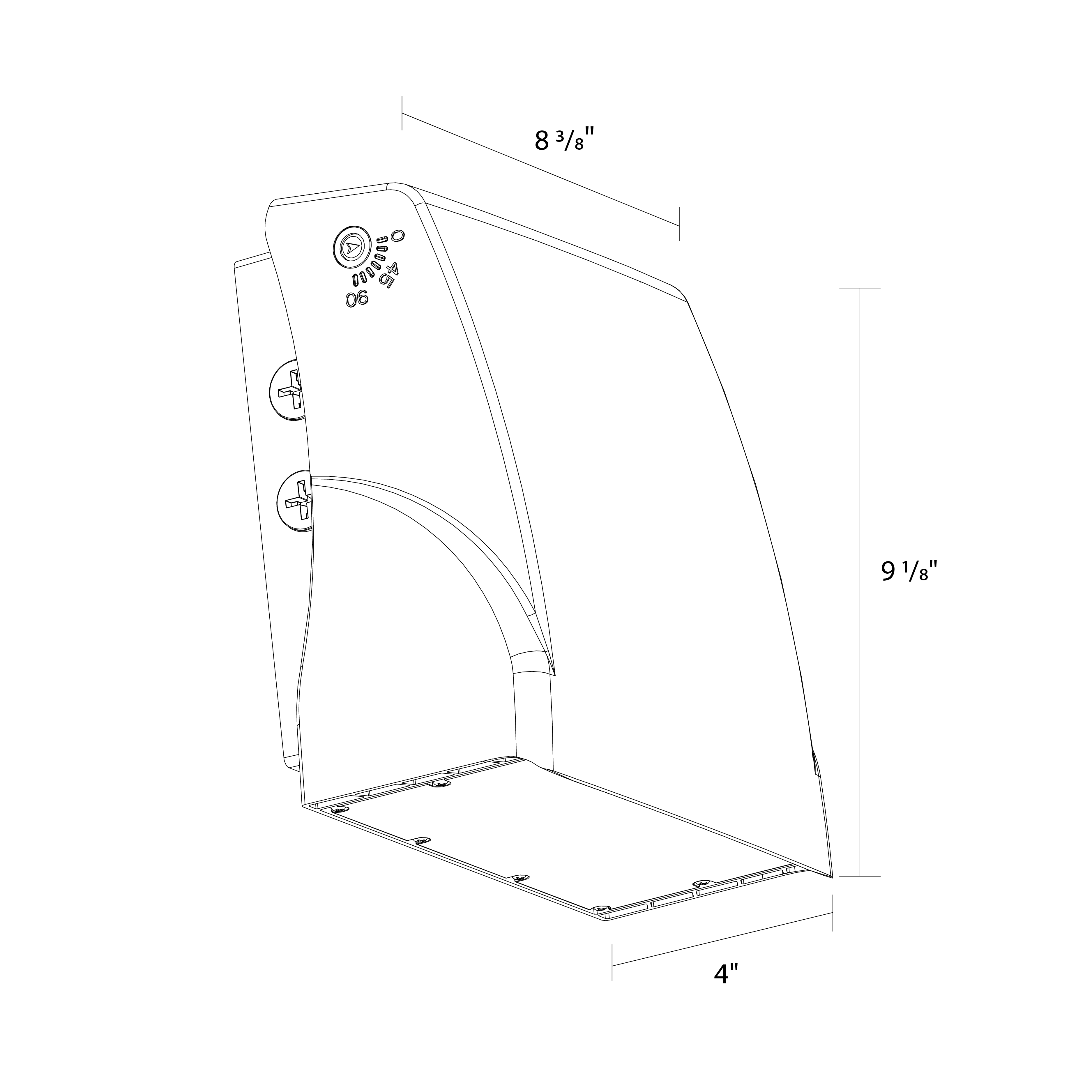

Dimensions
Weight: 4.8 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Color temperature selectable by 3000K, 4000K and 5000K
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.
IP Rating
Ingress protection rating of IP65 for dust and water
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-J834W0
DLC Product Code: S-J834W0
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 175W Metal Halide
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.81A, 208V: 0.47A, 240V: 0.41A, 277V: 0.35A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Photocell
120-277V Integrated button photocell included.
Surge Protection
L-N:2.5 kV,L/N-GND:2.5 kV
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Ambient Temperature
Max Power Temp Rating: 122°F ( 50°C)
Middle Power Temp Rating: 122°F ( 50°C))
Low Power Temp Rating: 122°F ( 50°C)
Middle Power Temp Rating: 122°F ( 50°C))
Low Power Temp Rating: 122°F ( 50°C)
Housing
Precision die-cast aluminum housing and door frame
Lens
Polycarbonate lens
Cut Off

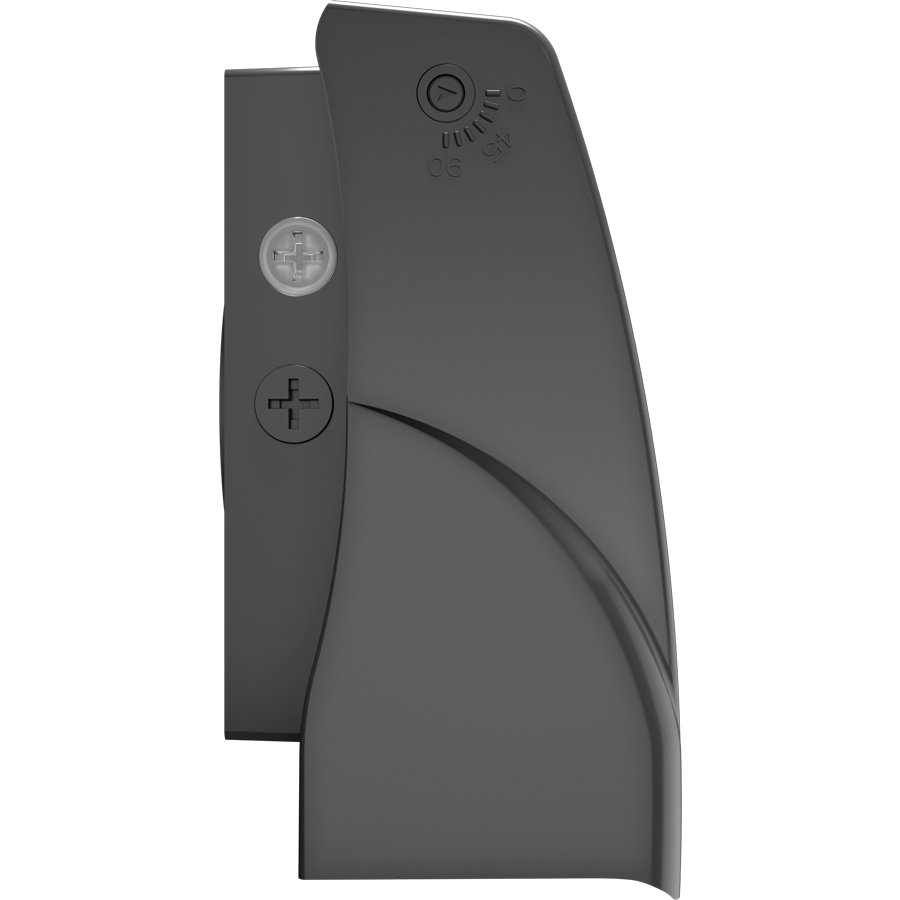

Adjustable from 0° (full cutoff) to 90°. 7 settings at 15° each.
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Hinged wiring access and conduit entries on the back, sides, top and bottom make installation a snap
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
