SLIM17FAFC100/LCB

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

SLIM17FAFC100/LCB

100W 3000/4000/5000K

Selectable CCT

Full cutoff

Selectable on/off photocell

0-10V dimming, standard

View Technical Specs

View Price & Availability

Performance

Watts	100W
Color Temp	3000/4000/5000K
Lumens	13,780/15,088/14,505 lm
Efficacy	135.25/153.33/142.89 lm/W
Color Accuracy	84/86/83 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.85A
208V	0.49A
240V	0.42A
277V	0.38A
Input Watts	101.89/98.4/101.5W

EZ-Layout

Create Custom Lighting Layout

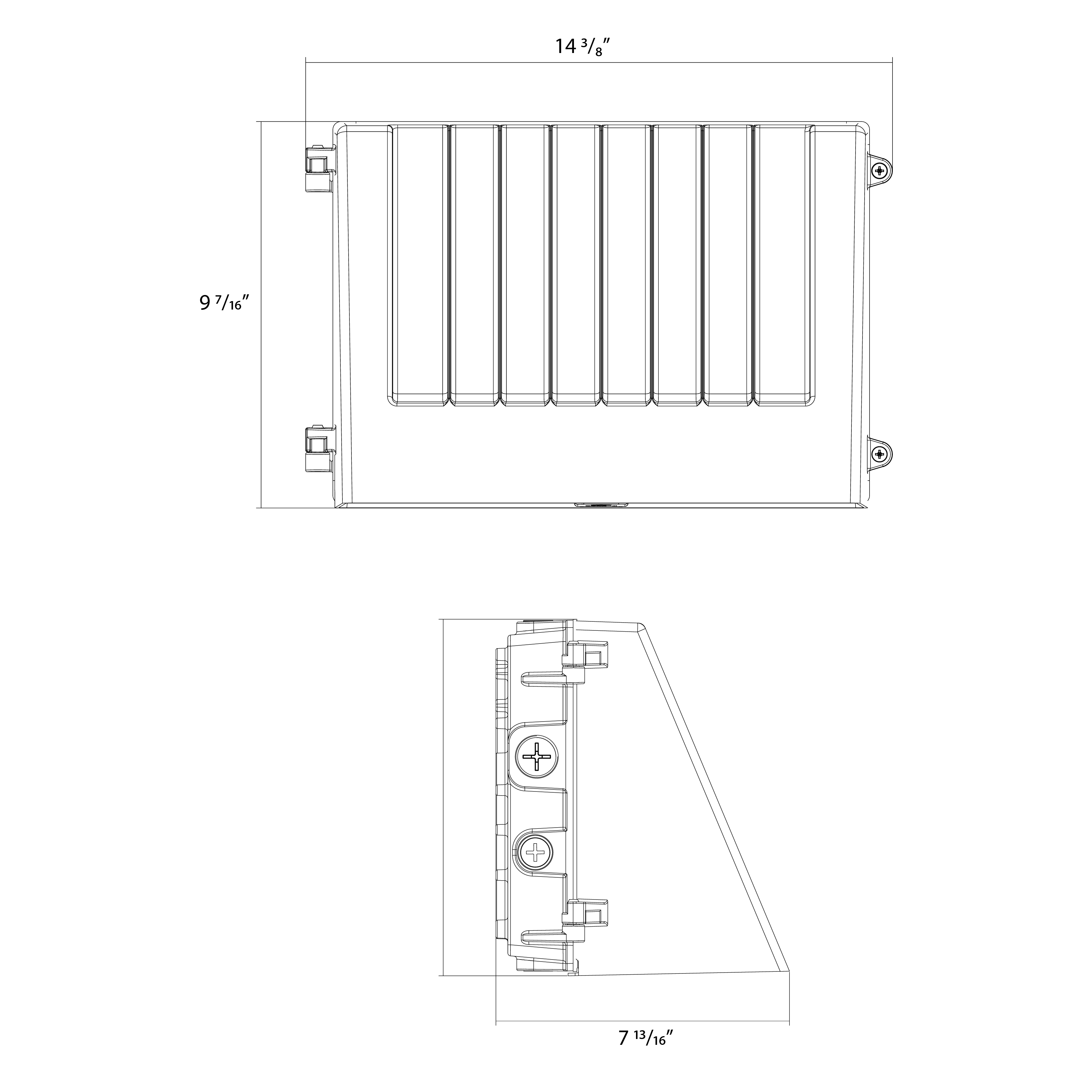

Dimensions

Weight: 10.6 lbs

Technical Specifications

Lightcloud

Lightcloud Blue Installed

Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.

DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)

Learn more at www.rablighting.com/feature/new-lightcloud-blue.

Gateway Required

Communication Protocol

Bluetooth Mesh

SmartShift

Range

Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.

Outdoor: Up to 200 feet clear line of sight; Up to 120 feet around corners

Spacing Criteria

Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.

Lightcloud Blue Controller

LCBAUX-X/B

Factory Reset

Method 1: Delete from App
Open the app and access the device settings for the paired device. Be sure that the device is online and select 'Delete'. The device will flash on/off 3x and return to full brightness.

Method 2: Manual
Locate the device identification button at the top of the Controller under the Lightcloud logo. Press and hold this button for 10s or until the indicator light begins flashing red. If the Controller is attached to a fixture, the fixture will also flash on/off 3x.

Status Indicator

The status indicator light is located around the circumference of the top of the Controller.

Solid Green: connected to a Lightcloud Blue network
Blinking Red: unprovisioned, ready to pair

Device Identification Button

Located at the top of the controller under the Lightcloud logo.
Once the Controller has been provisioned to the Lightcloud Blue mobile app this button offers the following functionality:
Press once to rapid identify this device in the Lightcloud Blue mobile app
Press twice to toggle circuit on and off
Press twice and hold to set dim level
Press and hold for 10s to reset the device to factory settings and into pairing mode

Field Adjustability

Field Adjustable

Color temperature selectable by 3000K, 4000K and 5000K (factory default 4000K)

Compliance

UL Listed

Suitable for Wet Locations. Wall Mount Only.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP65 for dust and water

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 400W Metal Halide

LED Characteristics

LEDs

Long-life, high-efficiency, surface-mount LEDs

Electrical

Driver

Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 0.85A, 208V: 0.49A, 240V: 0.42A, 277V: 0.38A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

9.53% at 120V, 6.12% at 277V

Power Factor

99.5% at 120V,, 95.6% at 277V

Photocell

120-277V selectable photocell that can be turned on and off.

Surge Protection

L/N: 6 kV, L/N-PE: 6 kV

Dim to Off

Yes

Aux Power Supply

Yes

Construction

IK Rating

IK08 Protected against 5 joules of impact. Equivalent to the impact of a 3.75 lbs. (1.7kg) mass dropped from 11.8" (300mm) above the impacted surface.

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Ambient Temperature

Max Power Temp Rating: 122°F ( 50°C)
Middle Power Temp Rating: 122°F ( 50°C))
Low Power Temp Rating: 122°F ( 50°C)

Housing

Precision die-cast aluminum housing and door frame

Lens

Polycarbonate lens

Cut Off

Full cutoff (0°)

Gaskets

High-temperature silicone

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

Hinged wiring access and conduit entries on the back, sides, top and bottom make installation a snap

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
