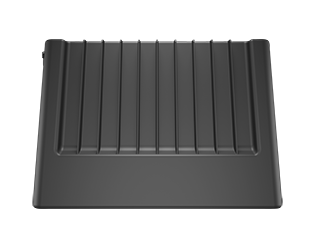

SLIM17FAFC40

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

SLIM17FAFC40

Selectable CCT

Full cutoff

Selectable on/off photocell

0-10V dimming, standard

View Technical Specs

View Price & Availability

Performance

Watts	40W
Color Temp	3000/4000/5000K
Lumens	5,632/6,052/6,032 lm
Efficacy	138.18/152.9/148.17 lm/W
Color Accuracy	84/86/83 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.34A
208V	0.20A
240V	0.17A
277V	0.15A
Input Watts	40.76/39.57/40.71W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 6.8 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Color temperature selectable by 3000K, 4000K and 5000K (factory default 4000K)

Compliance

UL Listed

Suitable for Wet Locations. Wall Mount Only.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP65 for dust and water

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-FZ8GV2

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 200W Metal Halide

LED Characteristics

LEDs

Long-life, high-efficiency, surface-mount LEDs

Electrical

Driver

Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 0.34A, 208V: 0.20A, 240V: 0.17A, 277V: 0.15A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

11.17% at 120V, 7.91% at 277V

Power Factor

99.3% at 120V,, 96.8% at 277V

Photocell

120-277V selectable photocell that can be turned on and off.

Surge Protection

L/N: 6 kV, L/N-PE: 6 kV

Dim to Off

Yes

Aux Power Supply

Yes

Construction

IK Rating

IK08 Protected against 5 joules of impact. Equivalent to the impact of a 3.75 lbs. (1.7kg) mass dropped from 11.8" (300mm) above the impacted surface.

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Ambient Temperature

Max Power Temp Rating: 122°F ( 50°C)
Middle Power Temp Rating: 122°F ( 50°C))
Low Power Temp Rating: 122°F ( 50°C)

Housing

Precision die-cast aluminum housing and door frame

Lens

Polycarbonate lens

Cut Off

Full cutoff (0°)

Gaskets

High-temperature silicone

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

Hinged wiring access and conduit entries on the back, sides, top and bottom make installation a snap

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
