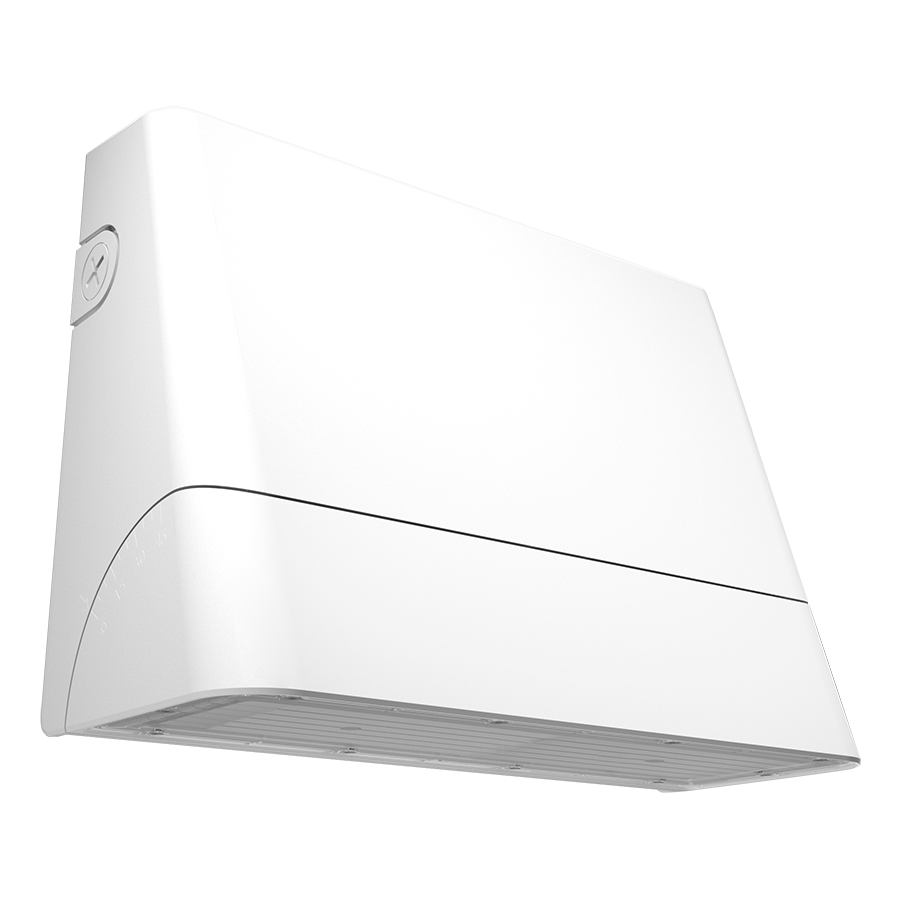

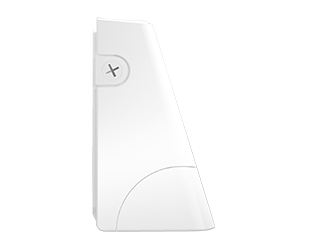

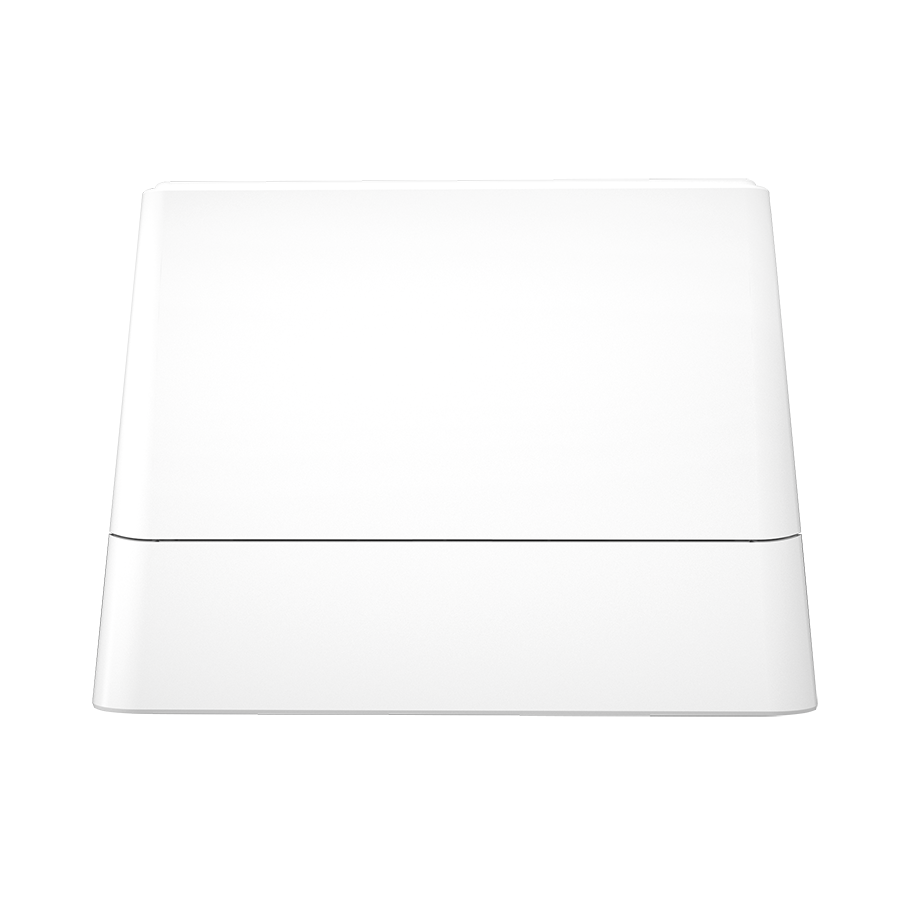

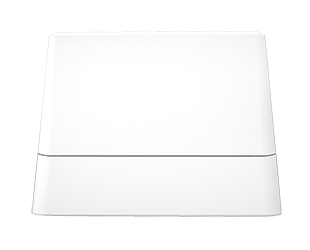

SLIM22-M-100W
SLIM22-M-100W
100W 3000/4000/5000K
- DLC Premium listed
- 0-10V dimming standard
- 100,000-hour LED Life
- 5-Year, limited warranty
Performance
| Watts | 100/85/70/50W |
| Color Temp | 3000/4000/5000K |
| Lumens | 7,219-14,382 lm |
| Efficacy | 123.1-169.3 lm/W |
| Color Accuracy | 83-86 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant |
| 120V | 0.94A |
| 208V | 0.56A |
| 240V | 0.51A |
| 277V | 0.46A |
| Input Watts | 48.2-103.2W |
Dimensions
Weight: 9.7 lbs
Technical Specifications
Field Adjustability
Optical Field Adjustability
45°, 30°, 15° and 0° (factory default 0°)
Field Adjustable
Field Adjustable Light Output:
100W/85W/70W/50W (factory default 100W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 4000K)
100W/85W/70W/50W (factory default 100W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 4000K)
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
100W: Replaces up to 400W Metal Halide (MH) or 310W High Pressure Sodium (HPS)
85W: Replaces up to 400W Metal Halide (MH) or 310W High Pressure Sodium (HPS)
70W: Replaces up to 400W Metal Halide (MH) or 250W High Pressure Sodium (HPS)
50W: Replaces up to 350W Metal Halide (MH) or 200W High Pressure Sodium (HPS)
85W: Replaces up to 400W Metal Halide (MH) or 310W High Pressure Sodium (HPS)
70W: Replaces up to 400W Metal Halide (MH) or 250W High Pressure Sodium (HPS)
50W: Replaces up to 350W Metal Halide (MH) or 200W High Pressure Sodium (HPS)
LED Characteristics
LEDs
Edge-lit long-life, high-efficacy, surface-mount LEDs; binned and mixed for uniform light output and color.
Electrical
Driver
100W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.94A, 208V: 0.56A, 240V: 0.51A, 277V: 0.46A
85W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.80A, 208V: 0.48A, 240V: 0.43A, 277V: 0.40A
70W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.66A, 208V: 0.39A, 240V: 0.36A, 277V: 0.35A
50W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.47A, 208V: 0.30A, 240V: 0.28A, 277V: 0.26A
85W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.80A, 208V: 0.48A, 240V: 0.43A, 277V: 0.40A
70W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.66A, 208V: 0.39A, 240V: 0.36A, 277V: 0.35A
50W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.47A, 208V: 0.30A, 240V: 0.28A, 277V: 0.26A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
100W: 3.12% at 120V, 5.81% at 277V
85W: 3.23% at 120V, 6.81% at 277V
70W: 3.43% at 120V, 8.85% at 277V
50W: 3.92% at 120V, 14.72% at 277V
85W: 3.23% at 120V, 6.81% at 277V
70W: 3.43% at 120V, 8.85% at 277V
50W: 3.92% at 120V, 14.72% at 277V
Power Factor
100W: 99.8% at 120V, 94.9% at 277V
85W: 99.7% at 120V, 93.6% at 277V
70W: 99.6% at 120V, 91.5% at 277V
50W: 99.2% at 120V, 83.3% at 277V
85W: 99.7% at 120V, 93.6% at 277V
70W: 99.6% at 120V, 91.5% at 277V
50W: 99.2% at 120V, 83.3% at 277V
Aux Power Supply
Yes
Dim to Off
Yes
Photocell
120-277V selectable photocell that can be turned on and off.
Surge Protection
DM(L/N): 6KV, CM(L/N-PE): 6KV
Construction
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Housing
Die-cast aluminum
Lens
Polycarbonate lens
Gaskets
High-temperature silicone
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP65 for dust and water
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-N7LBHX
DLC Product Code: S-N7LBHX
Installation
Mounting
Hinged wiring access and conduit entries on the back, sides, top and bottom make installation a snap
Optical
BUG Rating
100W: B3 U0 G2
85W: B3 U0 G2
70W: B3 U0 G2
50W: B3 U0 G1
85W: B3 U0 G2
70W: B3 U0 G2
50W: B3 U0 G1
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
