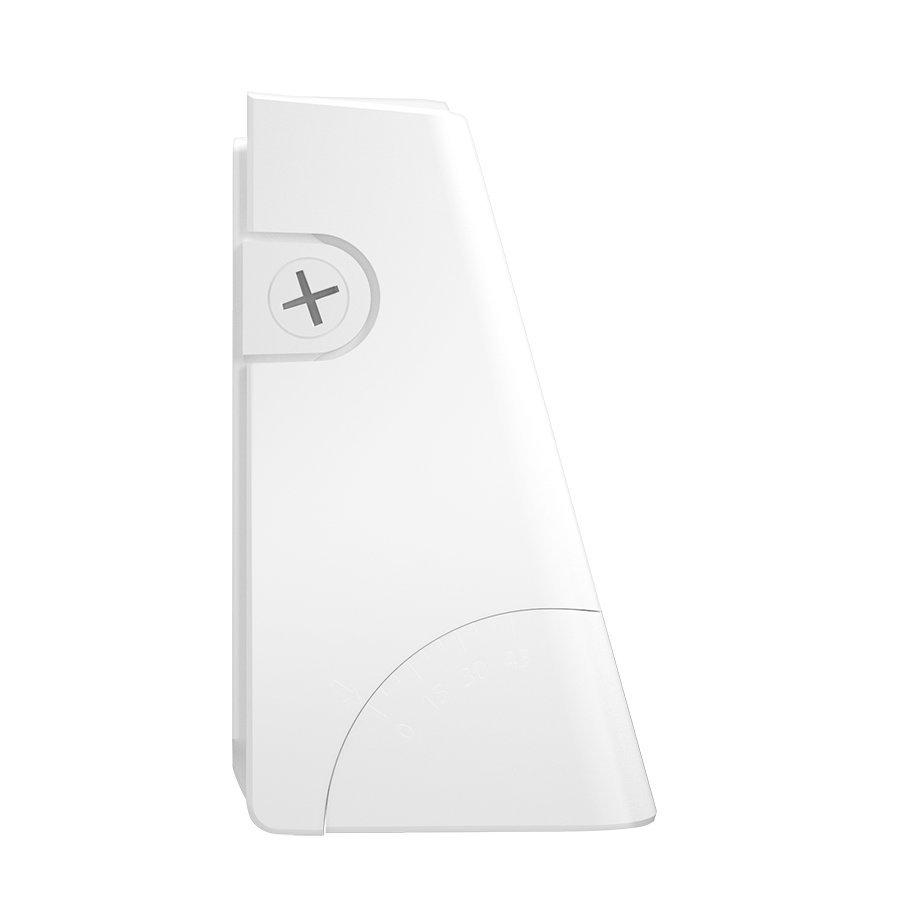

SLIM22-S-60W

Spec Sheet IES File LM79 Instructions Folleto (Español) Family Spec Sheet Spec Sheet EZ Layout

SLIM22-S-60W

60W 3000/4000/5000K

DLC Premium listed

0-10V dimming standard

100,000-hour LED Life

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	60/50/40/30W
Color Temp	3000/4000/5000K
Lumens	4,418-8,862 lm
Efficacy	128.7-167.3 lm/W
Color Accuracy	83-86 CRI
L70 Lifespan	100,000 Hours

Type	Constant
120V	0.56A
208V	0.34A
240V	0.30A
277V	0.27A
Input Watts	29.4-62W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 7.1 lbs

Technical Specifications

Field Adjustability

Optical Field Adjustability

45°, 30°, 15° and 0° (factory default 0°)

Field Adjustable

Field Adjustable Light Output:
60W/50W/40W/30W (factory default 60W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 4000K)

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Wattage Equivalency

50W: Replaces up to 250W Metal Halide (MH) or 200W High Pressure Sodium (HPS)
40W: Replaces up to 250W Metal Halide (MH) or 200W High Pressure Sodium (HPS)
30W: Replaces up to 175W Metal Halide (MH) or 150W High Pressure Sodium (HPS)

LED Characteristics

LEDs

Edge-lit long-life, high-efficacy, surface-mount LEDs; binned and mixed for uniform light output and color.

Electrical

Driver

60W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.56A, 208V: 0.34A, 240V: 0.30A, 277V: 0.27A
50W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.47A, 208V: 0.30A, 240V: 0.25A, 277V: 0.23A
40W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.38A, 208V: 0.24A, 240V: 0.21A, 277V: 0.19A
30W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.29A, 208V: 0.19A, 240V: 0.17A, 277V: 0.14A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

60W: 4.53% at 120V, 10.6% at 277V
50W: 4.93% at 120V, 11.91% at 277V
40W: 5.74% at 120V, 14.66% at 277V
30W: 7.54% at 120V, 19.61% at 277V

Power Factor

60W: 99.7% at 120V, 94.6% at 277V
50W: 99.6% at 120V, 93.5% at 277V
40W: 99.4% at 120V, 91.4% at 277V
30W: 99% at 120V, 87% at 277V

Aux Power Supply

Yes

Dim to Off

Yes

Photocell

120-277V selectable photocell that can be turned on and off.

Surge Protection

DM(L/N): 6 kV, CM(L/N-PE): 6 kV

Construction

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Housing

Die-cast aluminum

Lens

Polycarbonate lens

Gaskets

High-temperature silicone

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP65 for dust and water

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Installation

Mounting

Hinged wiring access and conduit entries on the back, sides, top and bottom make installation a snap

Optical

BUG Rating

60W: B3 U0 G1
50W: B3 U0 G1
40W: B3 U0 G1
30W: B2 U0 G1

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
