SUMO-R-12

Super Slim design with less than 1" fixture profile

5 color temperatures in 1 SKU (2700/3000/3500/4000/5000K)

Suitable for wet and damp locations

Wet and damp location rated can be used indoors or outdoors

Easy to install on a wide variety of junction boxes

Color trim accessories available

50,000-hr lifespan, Dimmable, & Title 24 compliant

View Technical Specs

View Price & Availability

Performance

Watts	22W
Color Temp	2700/3000/3500/4000/5000K
Lumens	1,650 lm
Efficacy	70
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.20A
208V
240V
277V
Input Watts	22W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 1.4 lbs

Technical Specifications

Performance

Product Type

Slim Style Edge-Lit Surface mount downlight

Description

5 selectable color temperatures in one surface mount fixture. Contemporary, low-profile design with 3 sizes and 2 forms available. Built for 120V use. TRIAC dimming compatibility and 90 CRI.

Wattage Equivalency

100W Incandescent

Input Wattage

22W

Lumens (Nominal)

1,650lm

Efficacy

70lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current @ 120V, 60Hz: 203 mA

Power Factor

≥0.9

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

120V

Operating Frequency

60 Hz

Input Current @ 120V (mA)

203mA

Construction

Operating Temperature Range

-4°F - 104°F (-20°C - 40°C)

Size

12"

Shape

Round

Finish

Matte Black, fade & Scratch resistant Color trim overlays available, sold separately

Enclosure Material

Steel heatsink with robust thermal performance Polyester UV resistant Polyester trim ring

Trim Style

Smooth

Lens Finish

Frosted

Lens

Acrylic lightguide diffuses light evenly & smoothly without hotspots

LED Characteristics

Color Accuracy (CRI)

90 CRI

R9 Value

High color performance with R9 greater than 50

Color Consistency

<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

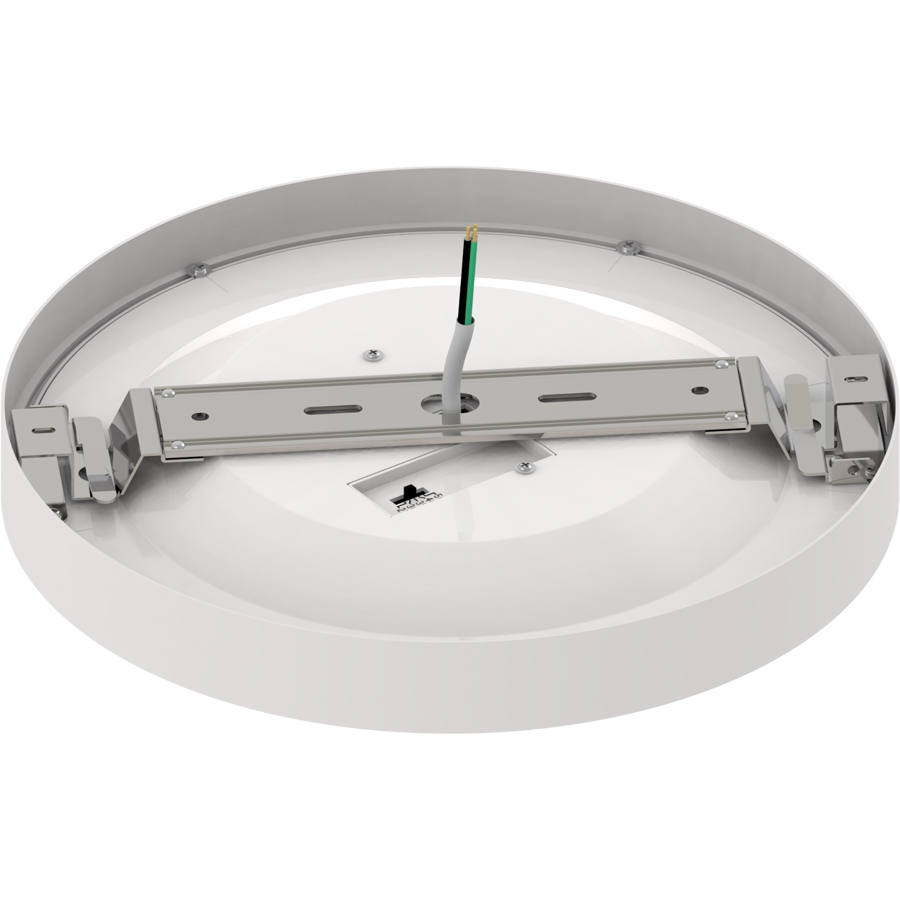

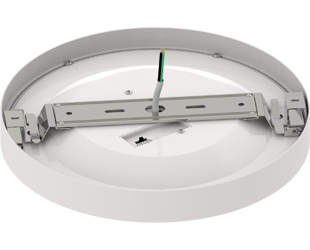

Driver on board design allows for extremely thin fixture design without a driver on back, making it simple to install on most common junction boxes. Accessory available to mount fixture to existing recessed housings, sold separately.

Compliance

Listings

UL Listed

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IC Rated

Air Tight

Certification Model Number

DLS0199(SUMO-R-12K)

California Title 20 Compliant

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6.

California Energy Commission (CEC) Status

Lawful for Sales in California

NEC Compliant

Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
