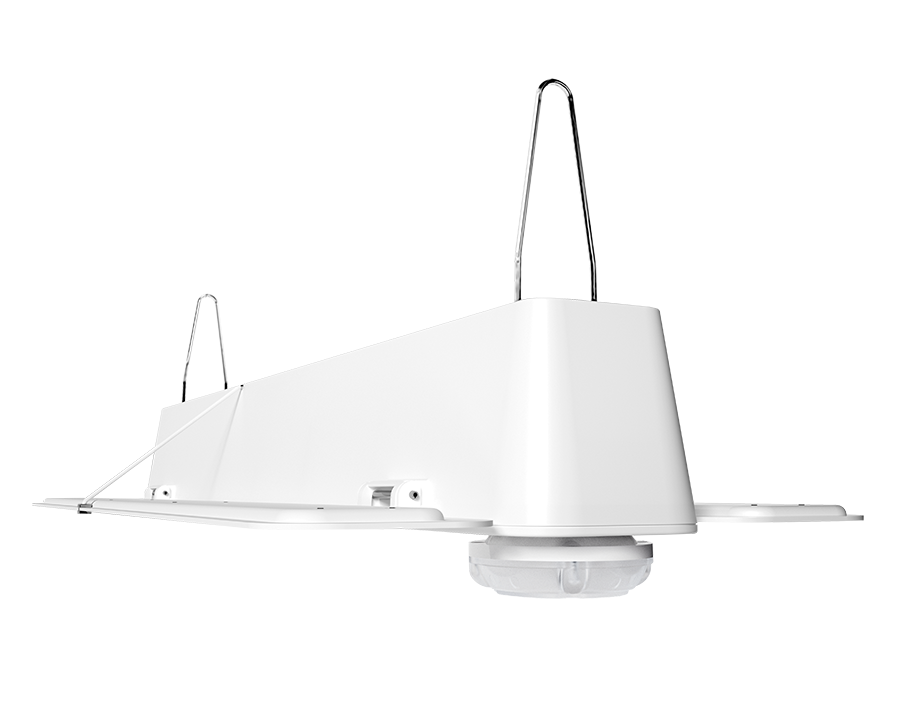

L34-110/MVS

50,000-Hour LED lifespan

DLC listed

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	100W
Color Temp	5000K (Cool)
Lumens	13,534 lm
Efficacy	134.7 lm/W
Color Accuracy	85 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.92A
208V	0.53A
240V	0.46A
277V	0.40A
Input Watts	100.5W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 5.3 lbs

Technical Specifications

Compliance

UL Listed

Suitable for damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PTF2Z78V

Performance

Lifespan

50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Tilt Angle

0° - 100.5W; 13,534 lumens
15° - 100.4W; 13,601 lumens
27° - 100.3W; 13,630 lumens
39° - 100.4W; 13,646 lumens
50° - 100.2W; 13,617 lumens

Wattage Equivalency

Equivalent to 250W Metal Halide

Electrical

Driver

Constant Current, Class 2, Class P, 120-277V, 50/60 Hz, 120V: 0.92A, 208V: 0.53A, 240V: 0.46A, 277V: 0.40A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

6.48% at 120V, 8.9% at 277V

Power Factor

99.7% at 120V, 97.2% at 277V

Surge Protection

2.5kV

LED Characteristics

LEDs

Long-life, high-efficacy, discrete, surface-mount LEDs

Color Consistency

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

Cold Weather Starting

The minimum starting temperature is -20°C (-4°F)

Maximum Ambient Temperature

Suitable for use in up to 50°C (122°F)

Housing

Polycarbonate and ABS (PC/ABS)

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

V-hooks and optional pendant mounting

Sensor Settings

Capacitance Load

400VA at 120VAC, 800VA at 230VAC, 1000VA at 277VAC

Operating Temperature

-20°C to +60°C (-4°F to +140°F)

Relay

Zero-cross relay

Maximum Mounting Height

16.4 ft

Customizable Detection Area

10, 50, 75 or 100%

Time Delay

5s, 30s, 1min, 5min, 10min, 20min, 30min

Cut Off Period

0s, 10s, 1min, 5min, 10min, 30min, 1hr, Bi-Level

Cut-Off Dimming level

10, 20, 30, 50%

Cut-Off Power

Less than 1W

Daylight Threshold

About .2-5 fc for disabled

Sensor Principle

High Frequency

Microwave Frequency

5.8GHz +/- 75MHz

Microwave Power

<0.2mW

Max Detection Range

26 ft diameter at 16 ft mounting height

Detection Angle

About 30 to 150 degrees

Remote Control Accessory

Adjust settings using remote control (catalog# MVSREM). Only available with 0-10V dimming driver options. Remote control available here.

Other

5 Yr Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
