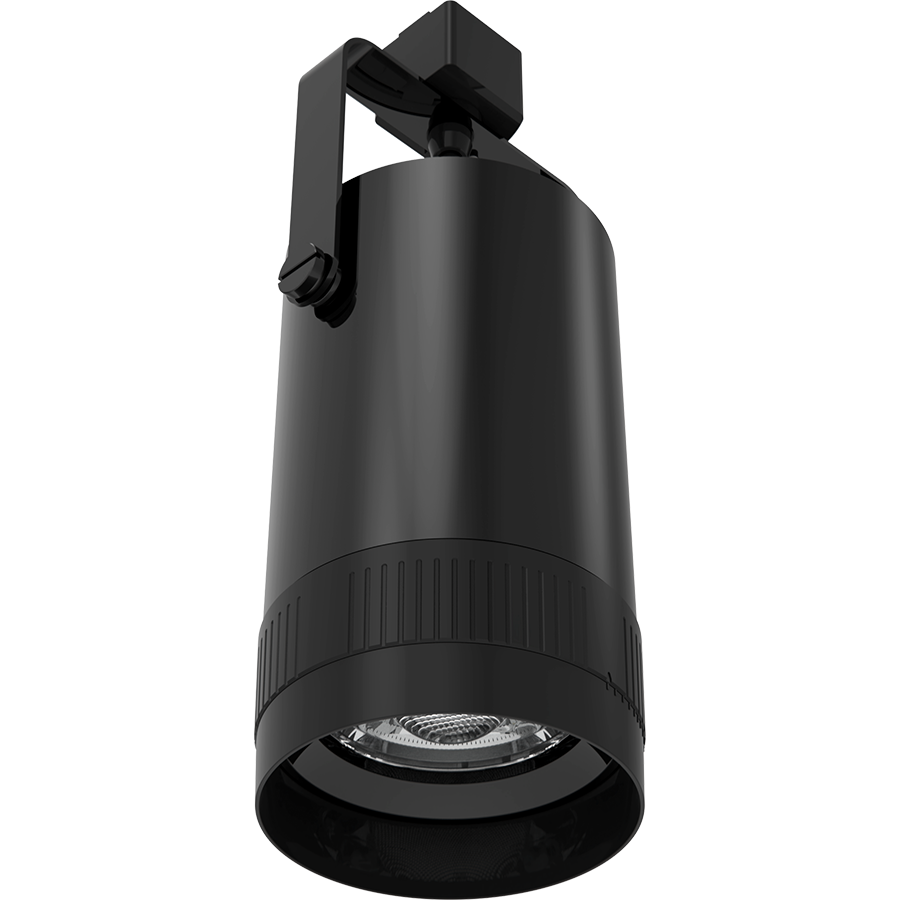

TK22MB
TK22MB
20W 2700/3000/3500/4000/5000K
- 100,000-Hour LED lifespan
- DLC Listed
- TRIAC dimming
- 120V
- Dry location only
- 5-Year, limited warranty
Performance
| Watts | 20/15/10W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 948-2053 lm |
| Efficacy | 81.9-119.9 lm/W |
| Color Accuracy | 92-99 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.22A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 9.3-20.6W |
Dimensions
Weight: 1.7 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
20/15/10W (factory default 20W)
Color temperature selectable 2700K, 3000K, 3500K, 4000K and 5000K (factory default 4000K)
Beam angle selectable by 15°, 20°, 30°, 40°, and 55° (factory default 55°)
20/15/10W (factory default 20W)
Color temperature selectable 2700K, 3000K, 3500K, 4000K and 5000K (factory default 4000K)
Beam angle selectable by 15°, 20°, 30°, 40°, and 55° (factory default 55°)
Compliance
UL Listed
Suitable for dry locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP20 for protection against solid objects larger than 12.5mm
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-NB6T5M
DLC Product Code: S-NB6T5M
Performance
Lamp Type
Track Light
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Construction
IK Rating
IK06 Protected against 1 joules of impact. Equivalent to the impact of a 0.55 lbs. (.25kg) mass dropped from 15.8" (400mm) above the impacted surface.
Cold Weather Starting
The minimum starting temperature is -4°F (-20°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Housing
Aluminum
Lens
Polymethyl Methacrylate (PMMA)
Number of Heads
1
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Electrical
Driver
Constant Current, Class 1, 120V, 60 Hz, 120V: 0.22A
Dimming Driver
120V TRIAC Dimmers
Surge Protection
L-N:2.5 kV,LN-PE 2.5 kV
Aux Power Supply
No
Dim to Off
No
Installation
Mounting
Track mount. Compatible with RAB Track System and accessories.
LED Characteristics
LEDs
Long-life, high-efficacy, COB (Chip on Board) LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
