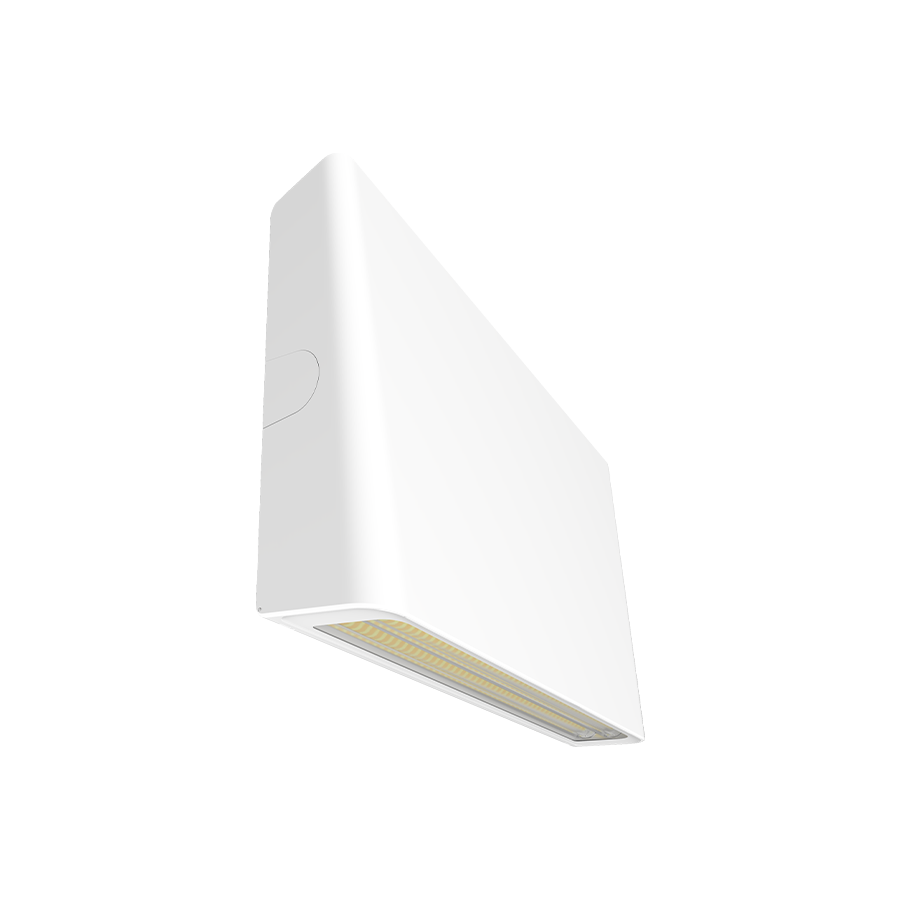

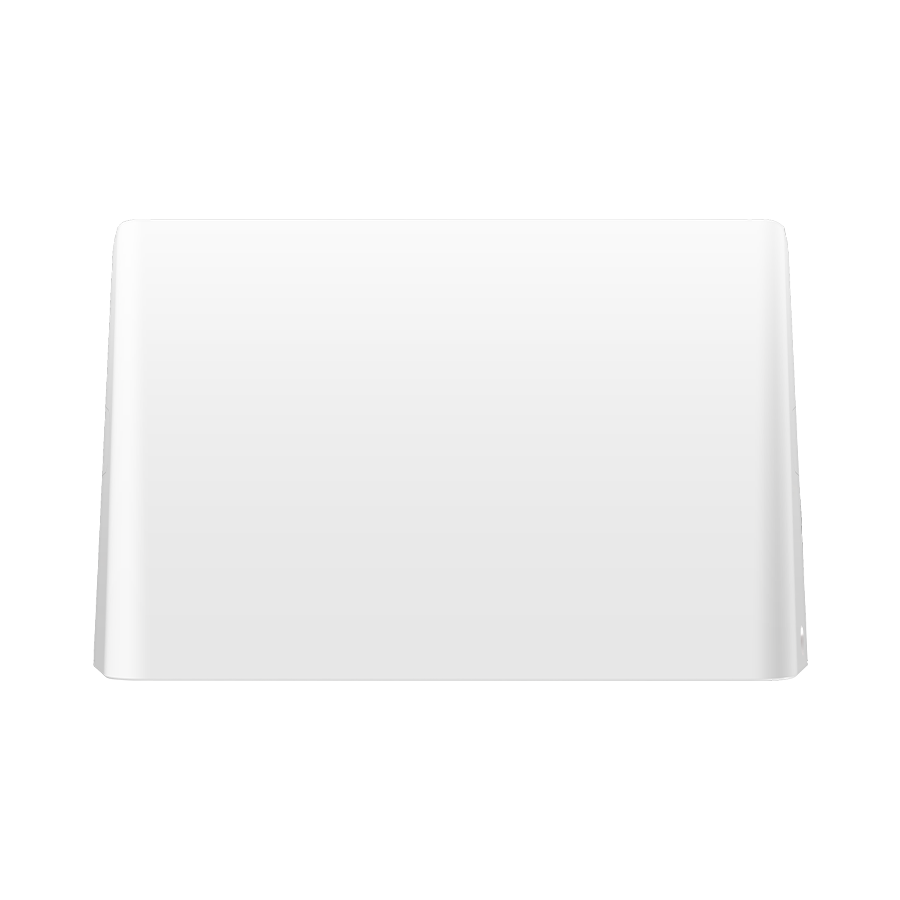

SLIMMW

27W 3000/4000/5000K

100,000-Hour LED lifespan

0-10V dimming standard

5-Year, no-compromise warranty

View Technical Specs

View Price & Availability

Performance

Watts	27/41/55W
Color Temp	3000/4000/5000K
Lumens	3706-7816 lm
Efficacy	123.7-163 lm/W
Color Accuracy	80-83 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.22A/0.23A/0.33A/0.35A/0.44A/0.46A
208V	0.15A/0.19A/0.20A/0.25A/0.26A/0.27A
240V	0.13A/0.17A/0.22A/0.23A
277V	0.11A/0.12A/0.15A/0.16A/0.20A/0.21A
Input Watts	26-55W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
55/41/27W (factory default 41)
Color temperature selectable 3000K, 4000K and 5000K (factory default 4000K)
Field-adjustable optics: -20° to +20°
On/Off Photocell (factory default "Off")

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

LED Characteristics

LEDs

Long-life, high-efficiency, surface-mount LEDs

Electrical

Driver

55W: Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 0.46A, 208V: 0.28A, 240V: 0.24A, 277V: 0.21A
41W: Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 0.35A, 208V: 0.21A, 240V: 0.19A, 277V: 0.16A
27W: Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 0.23A, 208V: 0.15A, 240V:0.13A, 277V: 0.12A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Photocell

120-277V selectable photocell that can be turned on and off.

Aux Power Supply

Yes

Dim to Off

Yes

Construction

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Housing

Die-cast aluminum

Lens

Tempered glass

Gaskets

High-temperature silicone

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

ADA Compliant

Meets ADA Requirements for wall-mounted luminaires.

IP Rating

Ingress protection rating of IP65 for dust and water

Dark Sky Approved

Conforms to the requirements listed by the International Dark-Sky Association for "Dark Sky" approval. The Fixture Seal of Approval provides objective, third-party certification for luminaries that minimize glare, reduce light trespass, and don't pollute the night sky.

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Installation

Mounting

Heavy-duty mounting bracket with spring-hinged housing and "kick stand" allow for easy installations. Conduit entries on back and both sides.

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
