SLIMYA
SLIMYA
- Wildlife-friendly amber light
- 100,000-hour LED Life
- 0-10V dimming, standard
- Selectable on/off photocell
- 10-Year, No-Compromise Warranty
Performance
| Watts | 26/18/12W |
| Color Temp | Amber |
| Lumens | 1,190/1,144/922 lm |
| Efficacy | 40.8/53.2/64.5 lm/W |
| Color Accuracy | |
| L70 Lifespan | 100,000 Hours |
| Type | Constant |
| 120V | 0.24A/0.15A/0.11A |
| 208V | 0.13A/0.09A/0.07A |
| 240V | 0.11A/0.08A/0.06A |
| 277V | 0.10A/0.07A/0.05A |
| Input Watts | 29.2 /21.5 /14.3 W |
Dimensions
Weight: 2.9 lbs
Technical Specifications
Field Adjustability
Field Adjustable (Wattage)
Field adjustable light output in 3 discrete steps:
26/18/12W (factory default 26W)
26/18/12W (factory default 26W)
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Photocell
120-277V selectable photocell that can be turned on and off.
Surge Protection
4kV
Construction
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Wavelength
585-595nm
Housing
Aluminum
Lens
Acrylonitrile styrene acrylate (ASA) /Acrylonitrile butadiene styrene (ABS)
Reflector
Mirror finish on polycarbonate
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Compliance
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
ADA Compliant
Meets ADA Requirements for wall-mounted luminaires.
IP Rating
Ingress protection rating of IP65 for dust and water
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Optical
BUG Rating
26W: B1 U0 G0
18W: B1 U0 G0
12W: B0 U0 G0
18W: B1 U0 G0
12W: B0 U0 G0
Installation
Mounting

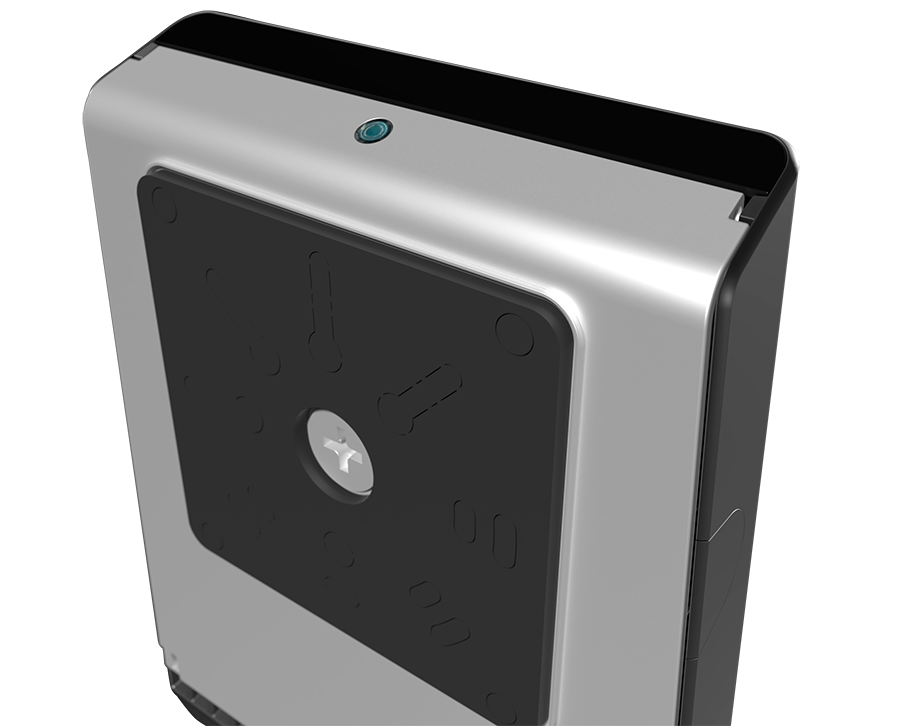

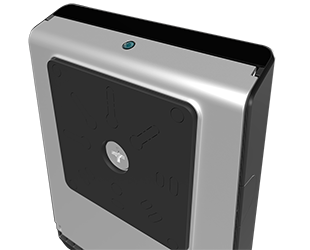

Heavy-duty mounting bracket with spring-hinged housing and "kick stand" allow for easy installations. Conduit entries on back and both sides.
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of ten (10) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
