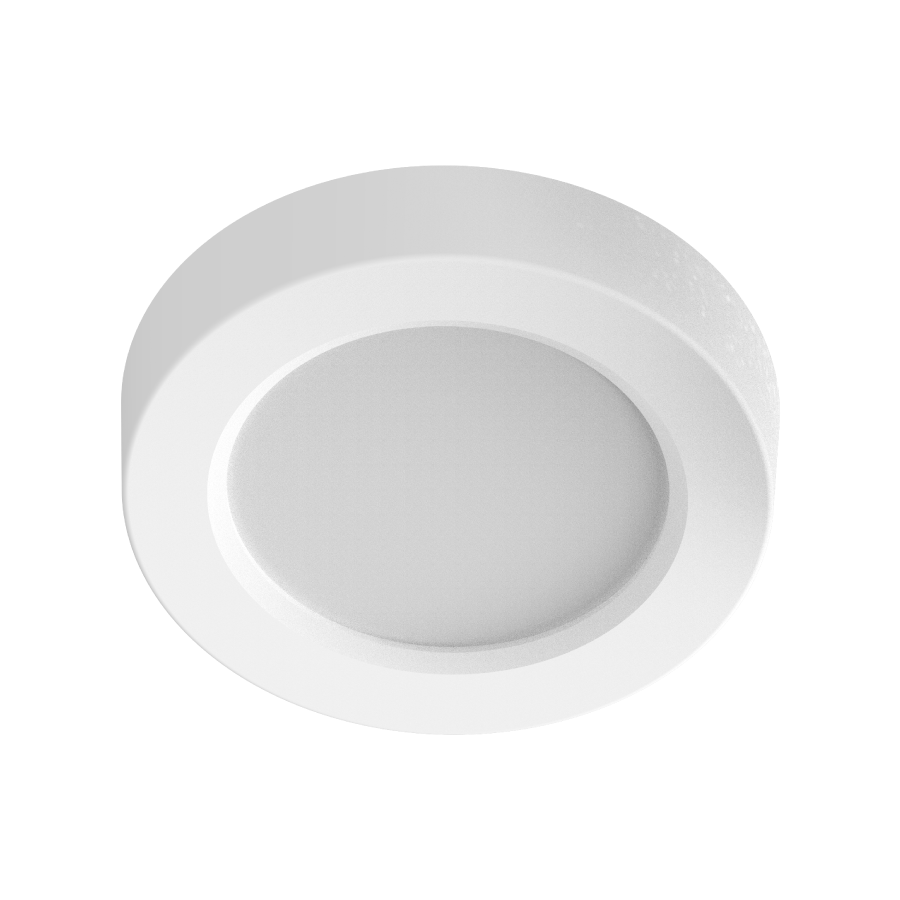

SM34-5R-7-930-120-W
SM34-5R-7-930-120-W large main
  • Quick push in and rotate installation concept for easy fit into J-Box
  • Includes E26 cap with friction clips & V-type spring as an extra accessory
  • Matte white, fade resistant polyester trim design
  • High performance >90CRI to provide high color performance
  • Dimmable on Triac dimmers
 View Technical Specs
View Price & Availability
Performance
Watts 7W
Color Temp 3000K
Lumens 600 lm
Efficacy 85.7
Color Accuracy 90 CRI
L70 Lifespan 50,000 Hours
Type Constant Current
120V 0.07A
208V
240V
277V
Input Watts
Dimensions
Link to Dimension Drawing

Weight: 0.4 lbs

Technical Specifications
Performance
Description
The SM34 is an easy to install, flexible, affordable, and stylish option for new construction or retrofit into an existing junction box or recessed housing. Mounting kit for recessed housing sold separately.
Product Type
Surface & Flush Mounts
Input Wattage
7W
Lumens
550lm
Efficacy
78.6lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IESlm-70 results
Compliance
UL Listed
Suitable for wet locations
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Electrical
THD
≤20%
Power Factor
≥0.9
